OPzV Type
OPZV800
OPZV800
OPZV Battery

OPZV800

Description

Voltage : 2V
Capacit : 800Ah
Size : 191*210*646*681(L*W*H*T)mm

Features

Capacity range(C10): 200-3000Ah
Voltage class: 2V
Floating design life(25℃): 20 years
Cycle life: >2000 at 80% DOD and 6000 at 25% DOD Self discharge rate: ≤ 2% /month
High charge acceptance performance
Wide operation temperature: -40℃~70℃ Storage life :after fully charged,it can be storaged about 2 years at 20℃
Good deep discharge recovery performance

About this item:

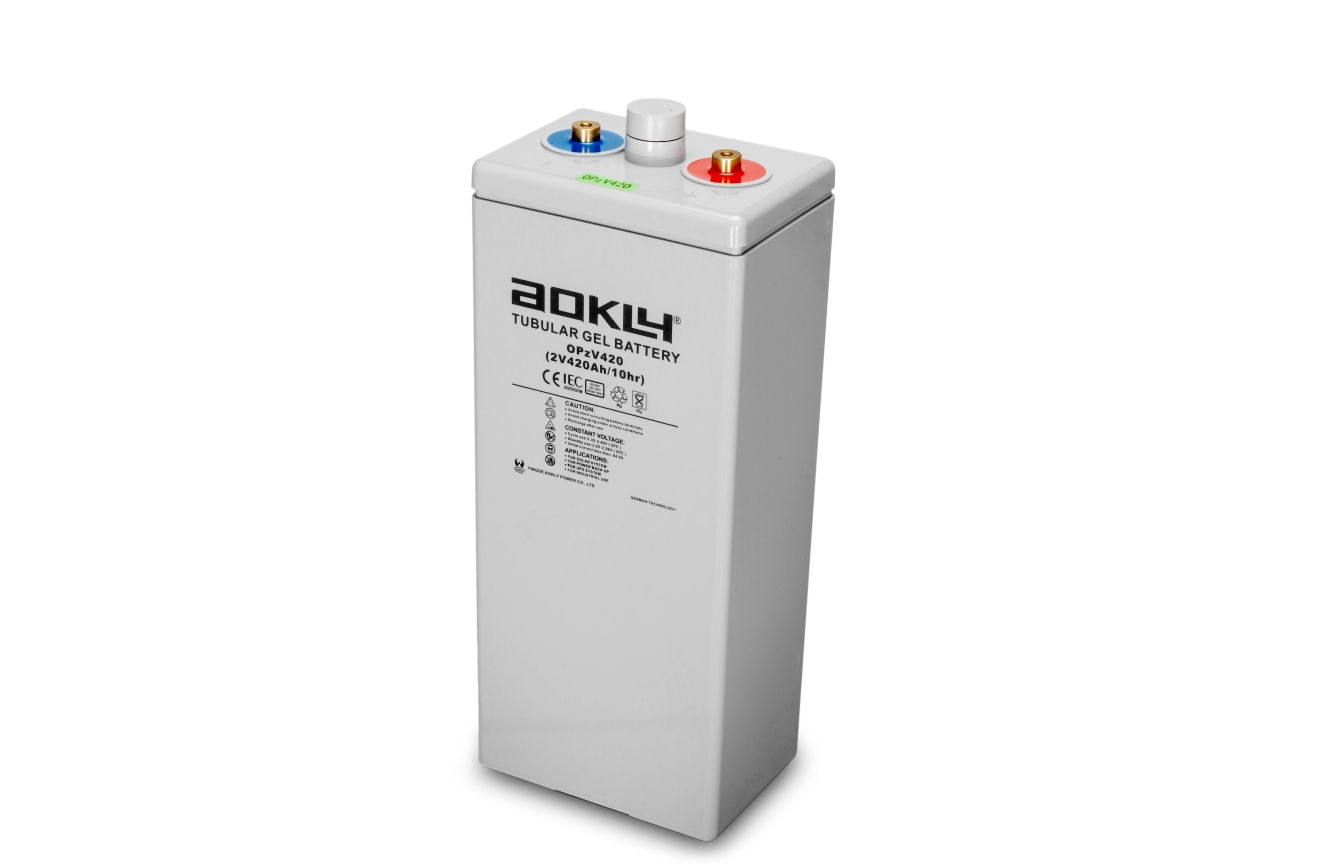

The OPzV battery series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using die-casted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions. This series is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

OPZV Series
NO. ITEMS VOLTAGE CAPACITY
C 10
DIMENSION(mm) NET WEIGHT
NO VOLT AH/10HR Length Width Height Total Height (KGS)
1 OPzV200 2 200 103 206 354 390 16.8
2 OPzV250 2 250 124 206 354 390 20.5
3 OPzV300 2 300 145 206 354 390 24.5
4 OPzV350 2 350 124 206 471 506 28.5
5 OPzV420 2 420 145 206 471 506 33
6 OPzV500 2 500 166 206 471 506 38.5
7 OPzV600 2 600 145 206 646 681 46.5
8 OPzV770 2 770 254 210 471 506 56
9 OPzV800 2 800 191 210 646 681 63
10 OPzV1000 2 1000 233 210 646 681 77
11 OPzV1200 2 1200 275 210 646 681 92
12 OPzV1500 2 1500 275 210 796 831 110
13 OPzV2000 2 2000 399 212 772 807 150
14 OPzV2500 2 2500 487 212 772 807 190
15 OPzV3000 2 3000 576 212 772 807 225

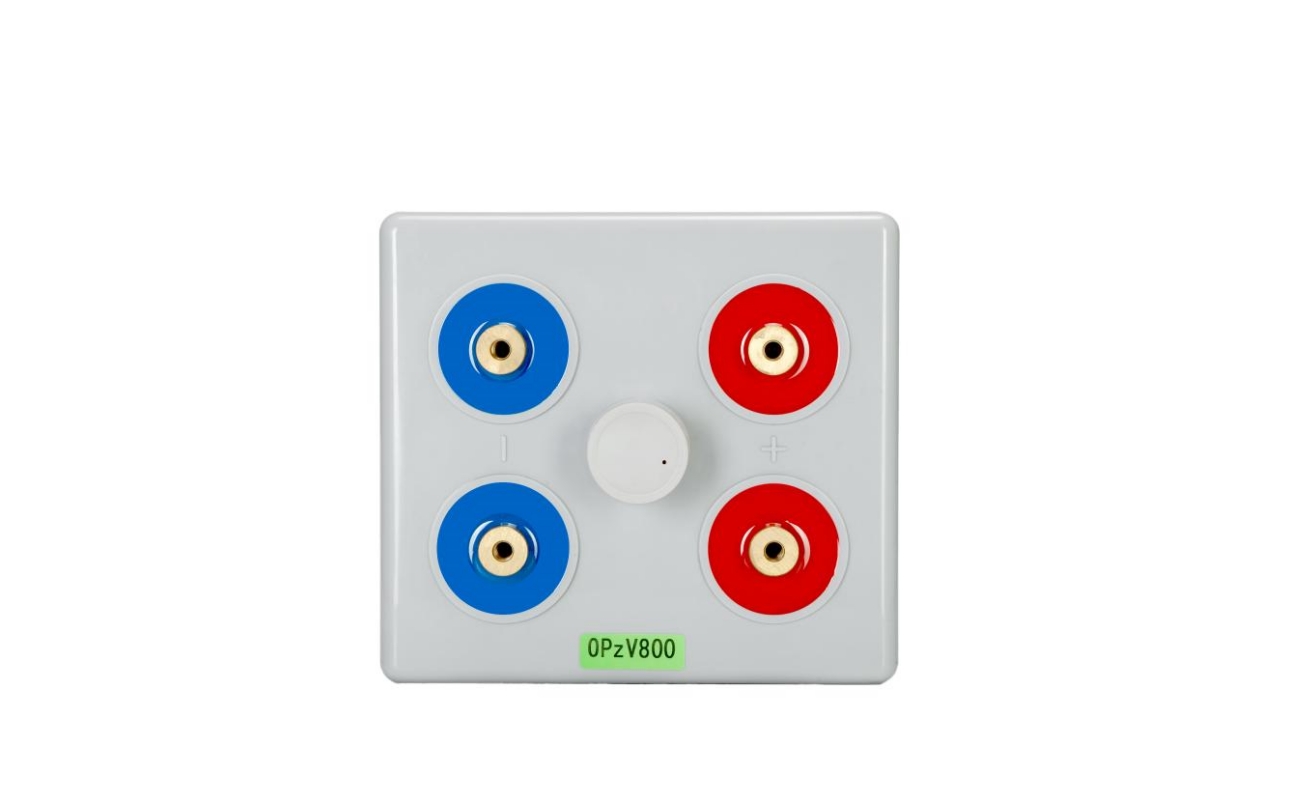

Terminal Structure

OPzV Battery Factory

Terminal direction
