JIS Series

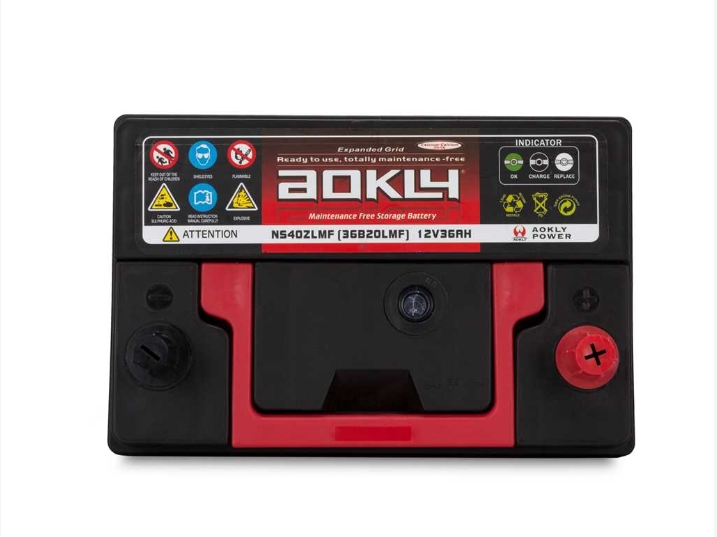

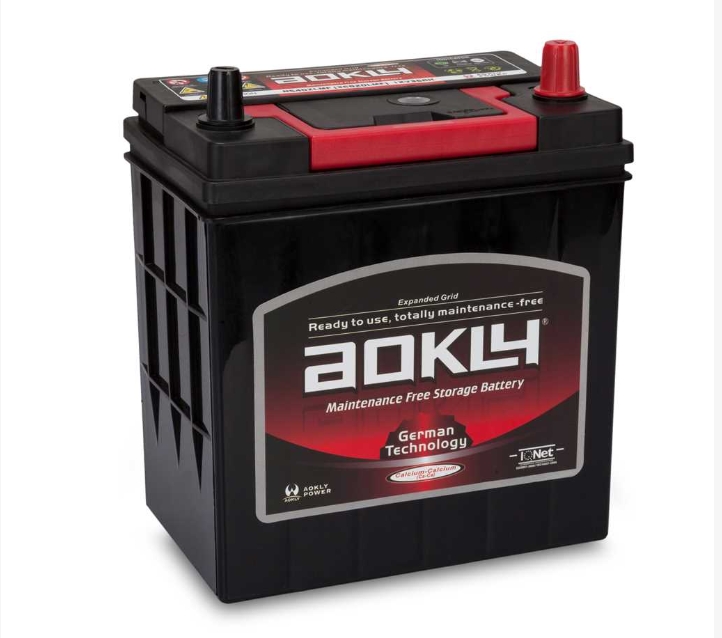

NS40ZLMF
NS40ZLMF
Automotive battery

NS40ZLMF

Description

Voltage : 12V

Capacit : 36Ah

Size : 195*127*200*220(L*W*H*T)mm

Advantages of Automotive Batteries

1. Expanded technology, the unique Pb-Ca alloy formulation, with low water losing has been adopted, enabled the low self-discharge

2. 30% extra starting power compared to a standard battery

3. Extended product life in extreme hot or cold operating temperatures.

4 .Strong polypropylene container, advance lead calcium alloy and special diachylum method

5. The super- thin glass fiber in separator ( or PE envelop) And reduces the short circuit of plates group, reduce the electric resistance

6. Heat sealed lid, maximize strength and prevent electrolyte leakage

JIS Standard Battery(SMF)

JIS Standard Battery (SMF)
No. Gr No. Model  Capacity RC Dimension(mm) Lay-out Terminal
MINS Length Width Height T.Height
    U1-33MF 12V33AH 40 195 127 158 186 1 C
1 B20 NS40MF(32B20RMF) 12V32AH 47 195 127 200 220 1 A
2 NS40LMF(32B20LMF) 12V32AH 47 195 127 200 220 0 A
3 NS40ZMF(36B20RMF) 12V36AH 53 195 127 200 220 1 A
4 NS40ZLMF(36B20LMF) 12V36AH 53 195 127 200 220 0 A
5 B24 N40MF(50B24RMF) 12V40AH 62 237 127 200 220 1 A
6 N40LMF(50B24LMF) 12V40AH 62 237 127 200 220 0 A
7 NS60MF(55B24RMF) 12V45AH 71 237 127 200 220 1 A
8 NS60LMF(55B24LMF) 12V45AH 71 237 127 200 220 0 A
9 NS60SMF(55B24RSMF) 12V45AH 71 237 127 200 220 1 B
10 NS60LSMF(55B24LSMF) 12V45AH 71 237 127 200 220 0 B
11 D23 55D23RMF 12V 60AH 85 230 173 200 220 1 B
12 55D23LMF 12V 60AH 85 230 173 200 220 0 B
13 75D23RMF 12V 65AH 90 230 173 200 220 1 B
14 75D23LMF 12V 65AH 90 230 173 200 220 0 B
15 D26 N50MF(48D26RMF) 12V 50AH 81 258 173 200 220 1 B
16 N50LMF(48D26LMF) 12V 50AH 81 258 173 200 220 0 B
17 N50ZMF(55D26RMF) 12V 60AH 100 258 173 200 220 1 B
18 N50ZLMF(55D26LMF) 12V 60AH 100 258 173 200 220 0 B
19 NS70MF(75D26RMF) 12V65AH 108 258 173 200 220 1 B
20 NS70LMF(75D26LMF) 12V65AH 108 258 173 200 220 0 B
21 NX110-5MF(80D26RMF) 12V70AH 112 258 173 200 220 1 B
22 NX110-5LMF(80D26LMF) 12V70AH 112 258 173 200 220 0 B
23 D31 N70MF(65D31RMF) 12V70AH 112 304 173 200 220 1 B
24 N70LMF(65D31LMF) 12V70AH 112 304 173 200 220 0 B
25 N70ZMF(75D31RMF) 12V75AH 122 304 173 200 220 1 B
26 N70ZLMF(75D31LMF) 12V75AH 122 304 173 200 220 0 B
27 NX120-7LMF(95D31LMF) 12V80AH 128 304 173 200 220 0 B
28 NX120-7MF(95D31RMF) 12V80AH 128 304 173 200 220 1 B
29 N90MF(105D31RMF) 12V90AH 144 304 173 200 220 1 B
30 N90LMF(105D31LMF) 12V90AH 144 304 173 200 220 0 B
31 N100AMF(115D31RMF) 12V100AH 160 304 173 200 220 1 B
32 N100ALMF(115D31LMF) 12V100AH 160 304 173 200 220 0 B
33 E41 N100MF(95E41RMF) 12V100AH 180 402 171 202 222 1 B
34 N100LMF(95E41LMF) 12V100AH 180 402 171 202 222 0 B
35 F51 N120MF(135F51MF) 12V120AH 218 506 180 208 231 3 B
36 N120LMF(135F51LMF) 12V120AH 218 506 180 208 231 4 B
37 G51 N150MF(165G51MF) 12V150AH 280 506 221 210 233 3 B
38 N150LMF(165G51LMF) 12V150AH 280 506 221 210 233 4 B
39 N165MF 12V165AH 300 506 221 210 233 3 B
40 N170MF 12V170AH 330 506 221 210 233 3 B
41 N180MF(195G51MF) 12V180AH 330 506 221 210 233 3 B
42 H52 N200MF(210H52MF) (8D) 12V200AH 365 515 265 215 238 3 B


Terminal structure
