General Purpose Type

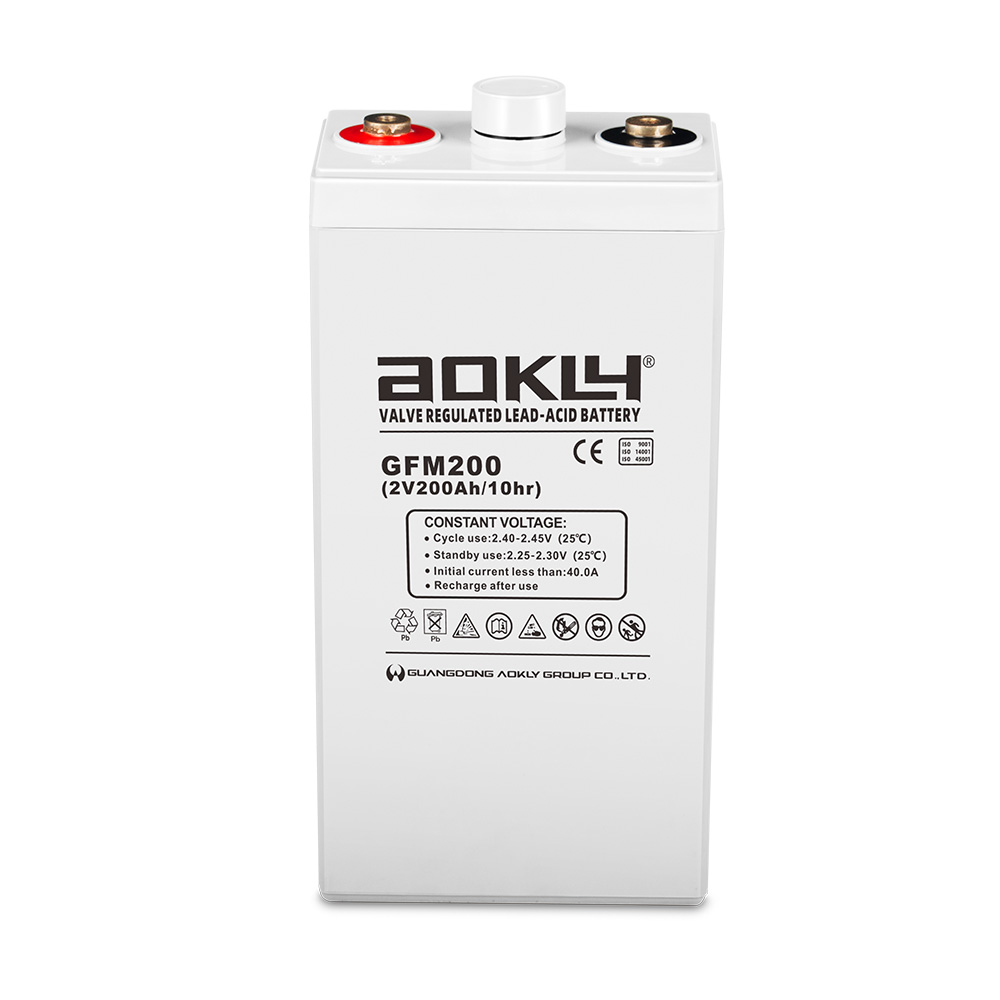

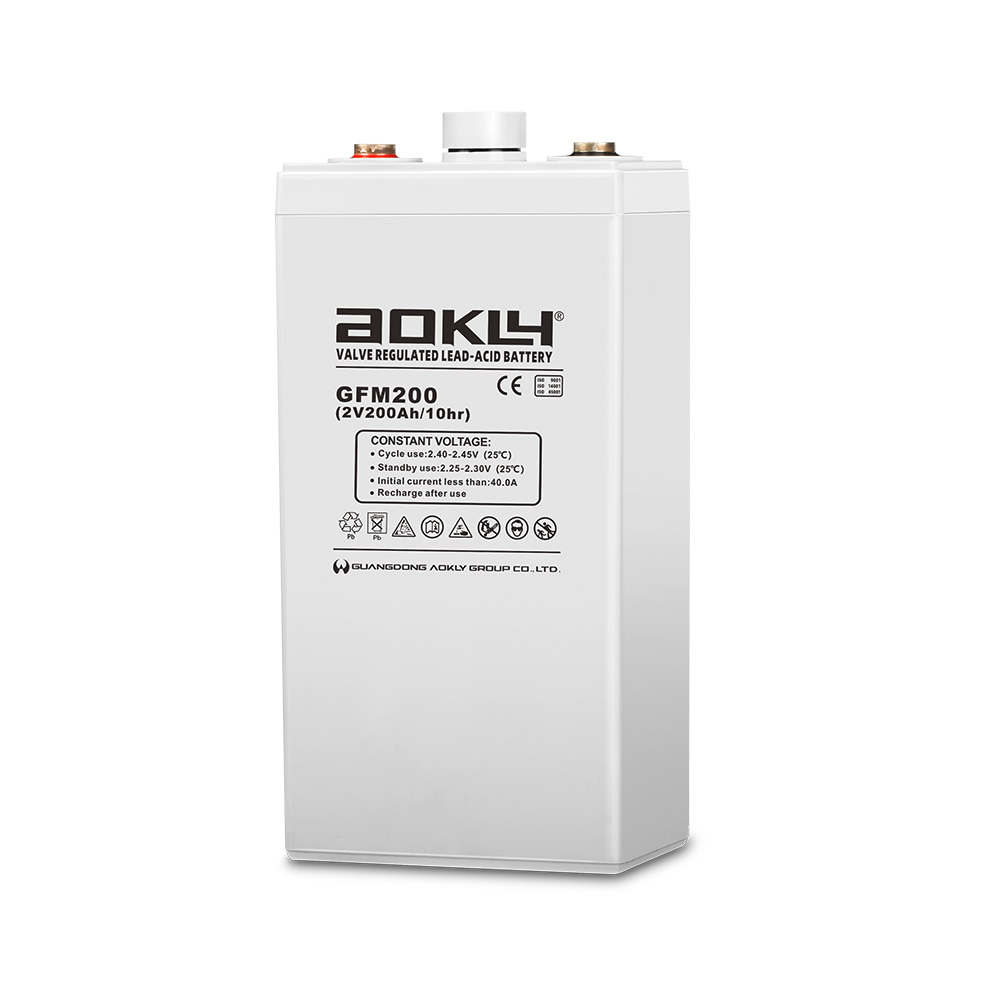

GFM200
GFM200
UPS Battery

GFM200

Description

Voltage : 2V
Capacit : 200Ah
Size : 173*111*329*365(L*W*H*T)mm



Features

1.Capacity range: 100Ah-3000Ah
2.Voltage class: 2V
3.Long design life(25℃): more than 18 years
4.Low self-discharge rate:≤3% per month
5. High recombination efficiency:≥99%
6.Compact structure and high specific energy
7.Wide operation temperature: ﹣20℃ to 60℃
8.Grid: thicker grid and radiative grid structure
9.Positive plate: pasted flat type,latest grid alloy
10.Separator: AGM separator with high absorptive and low resistance
11.Battery container: High strength ABS(UL94-HB) and UL 94-V0 is optional
12.Post sealing: patent multi-layer post sealing with M8 copper insert terminal
13.Safety valve: sensitive operate pressure and reliable equipped with explosion-proof arrester and acid filter

Compliant Standards:GB/T 22199-2008、GB/T18332.1-2009 Passed ISO9001、2001; ISO14001、CE certificate

GFM 2V Series
NO. ITEMS VOLTAGE CAPACITY
C 10
DIMENSION(mm) NET WEIGHT TERMINAL
NO VOLT AH/10HR Length Width Height Total Height (KGS) TYPE
1 GFM100 2 100 171 72 205 210 5.6 F7
2 GFM200 2 200 173 111 329 365 13.1 F7
3 GFM300 2 300 171 151 330 366 18.2 F7
4 GFM400 2 400 211 176 329 367 25.5 F7
5 GFM500 2 500 241 172 330 364 30.3 F7
6 GFM600 2 600 301 175 331 366 36.9 F7
7 GFM800 2 800 410 176 330 365 51.1 F7
8 GFM1000 2 1000 475 175 330 350 60.2 F7
10 GFM1500 2 1500 401 351 342 378 96.8 F7
11 GFM2000 2 2000 491 351 343 383 123.8 F7
12 GFM3000 2 3000 712 353 341 382 182.8 F7
Terminal Structure

Terminal direction
