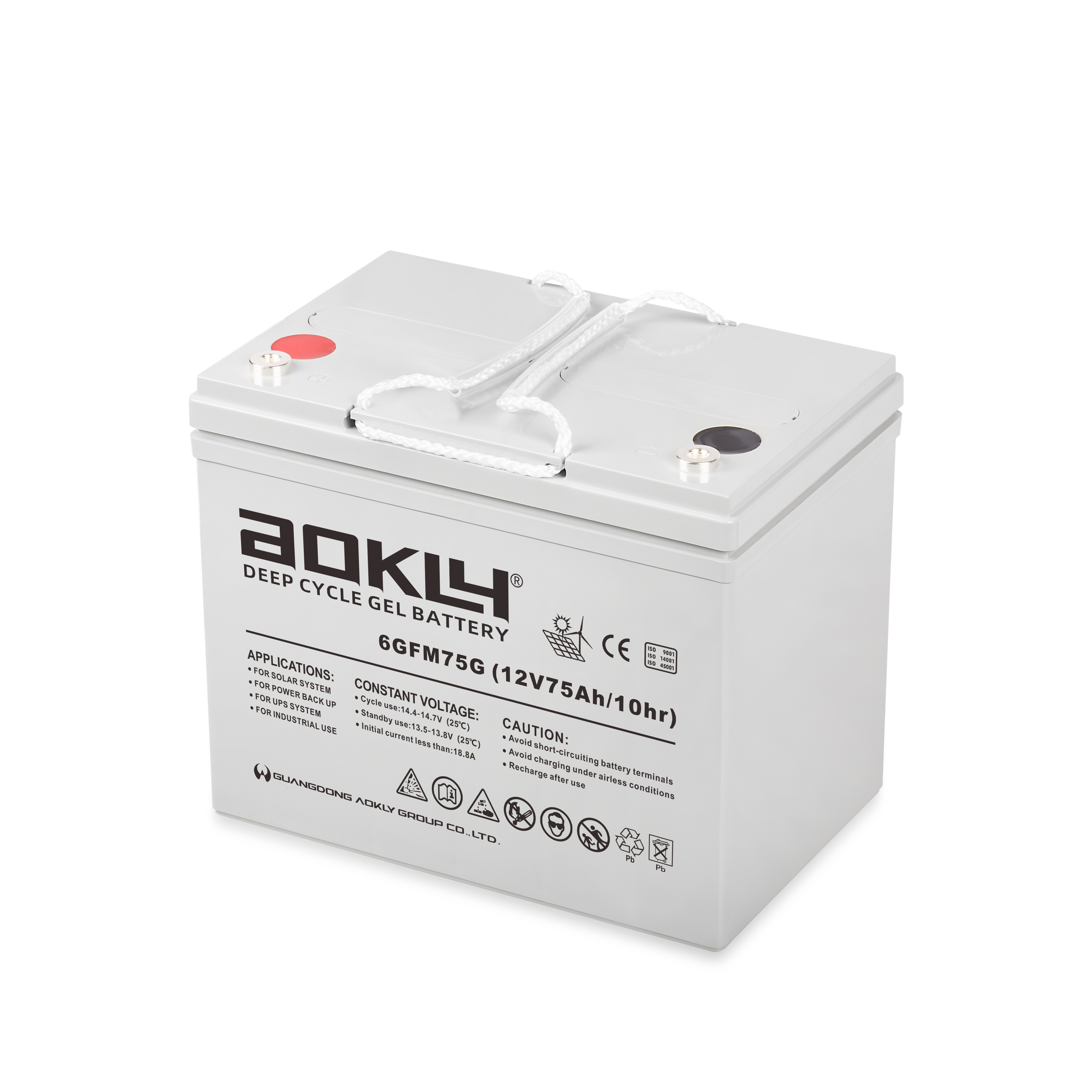

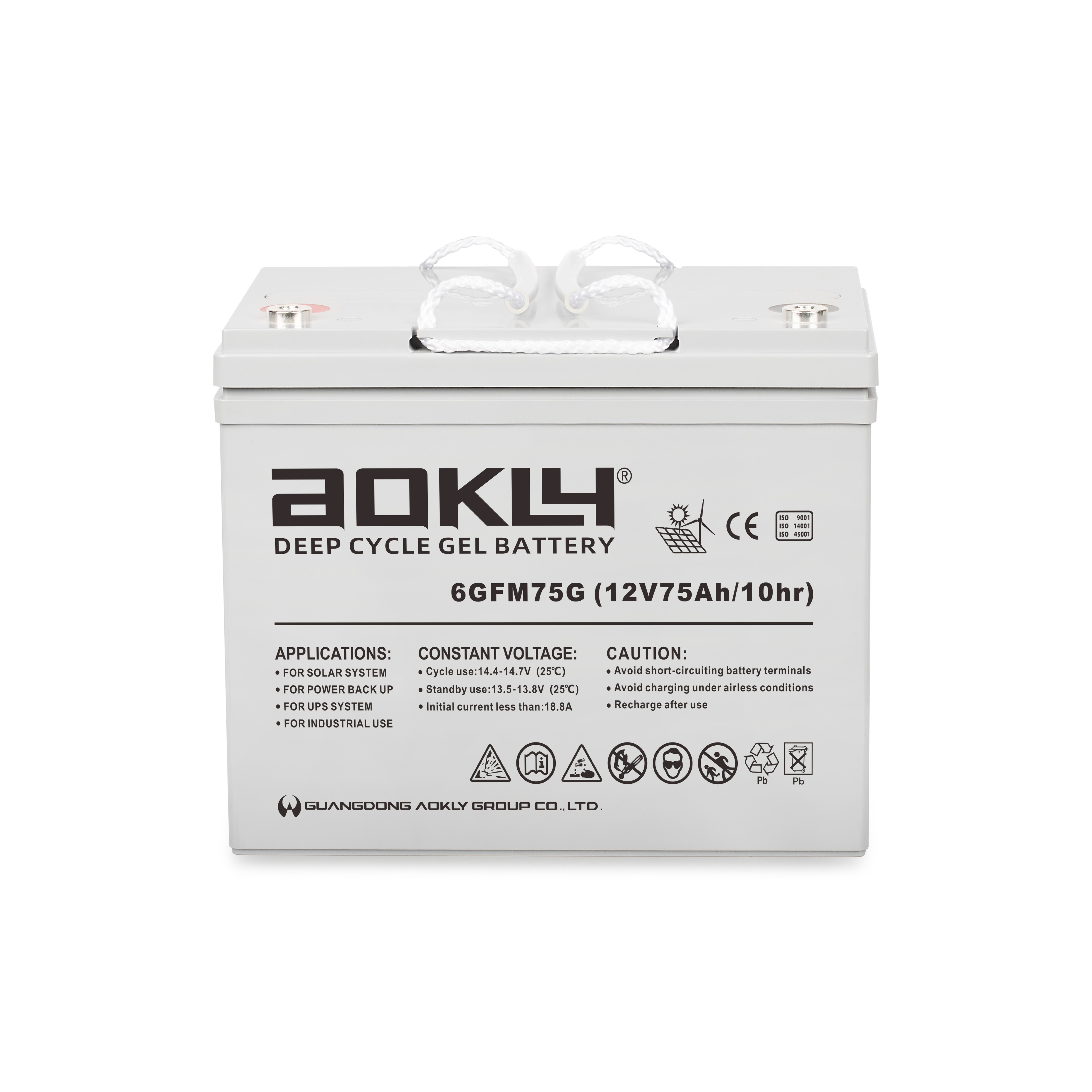

Deep Cycle Gel Type
6GFM75G
6GFM75G
Gel Battery

6GFM75G

Description

Voltage : 12V
Capacit : 75Ah
Size : 260*168*209*214(L*W*H*T)mm

Features

1.Capacity range:33ah-250ah
2.Voltage class: 12V
3.Long design life(25℃): 18 years for 12V
4.Low self-discharge rate:≤2.5% per month
5. High sealed reaction efficiency:≥98%
6.High specific energy density
7.Excellent charge acceptance
8.Wide operation temperature: ﹣40℃ to +60℃
9.Grid: patent primary and secondary grid structure design
10.Positive plate: pasted flat type,high temperature and humidity formation technics
11.Separator: high porosity PE separator with glass fibre good cyclic characteristics and lower resistance
12.Battery container: High strength ABS(UL94-HB) and UL94-VO is optional
13.Post sealing: patent double layer post sealing
14.Safety valve: narrow operate pressure range and equipped with explosion-proof arrester and acid filter

Compliant Standards: IEC60095、GB/T19638-2005 Passed ISO9001/ISO14001/OHSAS18001/CE

GFM 2V Series
NO. ITEMS VOLTAGE CAPACITY
C 10
DIMENSION(mm) NET WEIGHT TERMINAL
NO VOLT AH/10HR Length Width Height Total Height (KGS) TYPE
1 6GFM33G 12 33 201 131 170 170 10 F3
2 6GFM38G 12 38 198 166 170 170 11.9 F3
3 6GFM40G 12 40 197 172 170 170 11.9 F3
4 6GFM55G 12 55 227 138 205 210 16 F4
5 6GFM65G 12 65 330 172 180 185 19.9 F4
6 6GFM75G 12 75 260 168 209 214 23 F4
8 6GFM100G 12 100 329 172 216 221 29 F4/F8
9 6GFM120G 12 120 409 177 207 234 34.5 F9
10 6GFM150G 12 150 483.5 170 241 241 43.6 F4/F10
11 6GFM200G 12 200 522 239 216 221 58.8 F5/F11
12 6GFM250G 12 250 520 269 220 225 70.8 F5/F11
13 GFM200G 2 200 173 111 329 365 13.1 F7
14 GFM300G 2 300 171 151 330 366 18.2 F7
15 GFM400G 2 400 211 176 329 367 25.5 F7
16 GFM500G 2 500 241 172 330 364 30.3 F7
17 GFM600G 2 600 301 175 331 366 36.9 F7
18 GFM800G 2 800 410 176 330 365 51.1 F7
19 GFM1000G 2 1000 475 175 330 350 60.2 F7
21 GFM1500G 2 1500 401 351 342 378 96.8 F7
22 GFM2000G 2 2000 491 351 343 383 123.8 F7
23 GFM3000G 2 3000 712 353 341 382 182.8 F7
