General Purpose Type

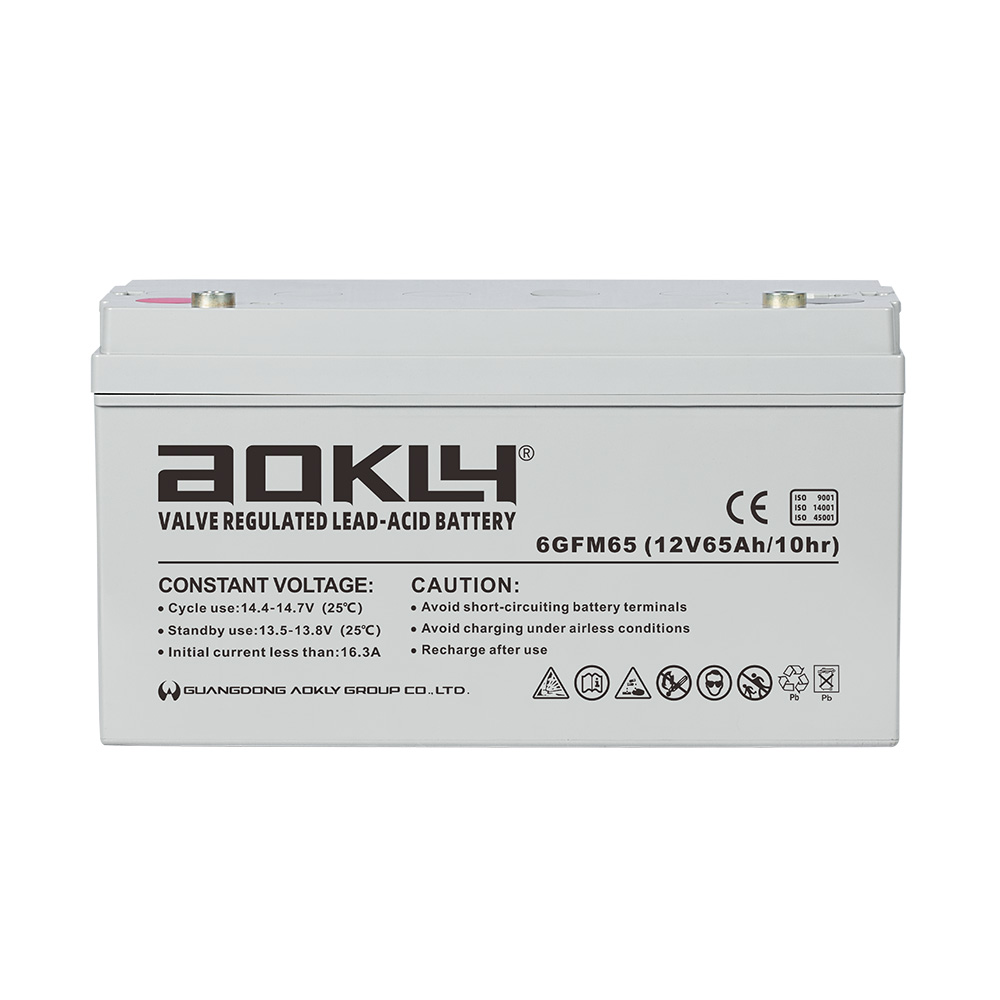

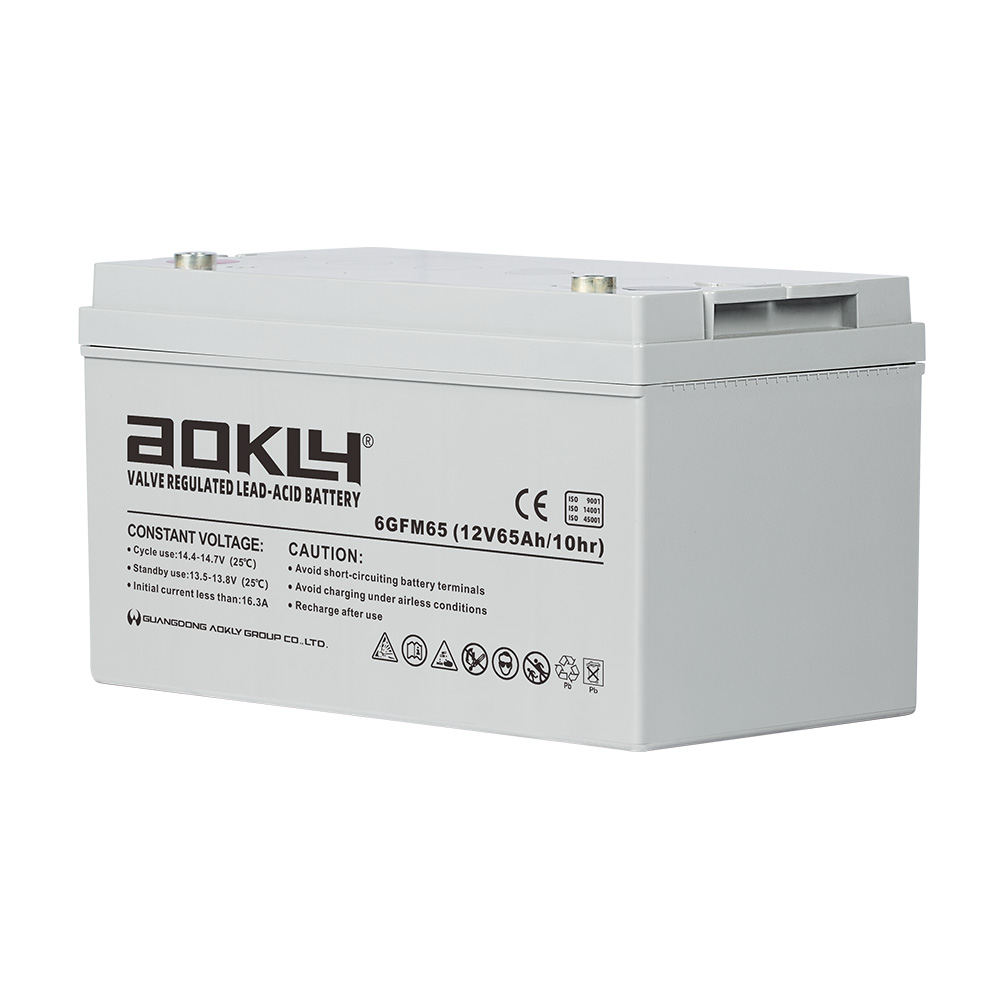

6GFM65
6GFM65
UPS Battery

6GFM65

Description

Voltage : 12V
Capacity : 65Ah
Size : 330*172*180*185(L*W*H*T)mm



Features

Capacity range: 24Ah-250Ah
Voltage class: 12V
Long design life(25℃):10 years
Low self-discharge rate≤3%/month
Good high rate discharge performance
High sealed reaction efficiency≥99%
Wide operation temperature: -20℃ to 60℃
Structure: compact design,low internal resistance,
Plate: Pasted flat type
Terminal: two or more types terminals are convenient for selection higher assembling pressure to increase deep cycle life;
Battery container: made of high strength ABS(UL94-HB)and UL94-V0 is optional;
Terminal sealing: double sealing technic (mechanical+epoxy glue).

Compliant Standards:GB/T 22199-2008、GB/T18332.1-2009 Passed ISO9001、2001; ISO14001、CE certificate


GFM Series
NO. ITEMS VOLTAGE CAPACITY
C 10
DIMENSION(mm) NET WEIGHT TERMINAL
NO VOLT AH/10HR Length Width Height Total Height (KGS) TYPE
1 6GFM24 12 24 165 125.5 175 181 8.1 F15
1 6GFM33 12 33 201 131 170 170 10 F3
2 6GFM38 12 38 198 166 170 170 11.9 F3
3 6GFM40 12 40 198 166 170 170 11.9 F3/F16
4 6GFM55 12 55 227 138 205 210 16 F4
5 6GFM65 12 65 330 172 180 185 19.9 F4
6 6GFM75 12 75 260 168 209 214 21.2 F4
8 6GFM100 12 100 329 172 216 221 28 F4/F8
9 6GFM120 12 120 409 177 207 234 33.5 F9
10 6GFM150 12 150 483.5 170 241 241 42.6 F4/F10
11 6GFM200 12 200 522 239 216 221 56.5 F5/F11
12 6GFM250 12 250 520 269 220 225 70.5 F5/F11
Terminal Structure

Terminal direction
