Front Terminal Type

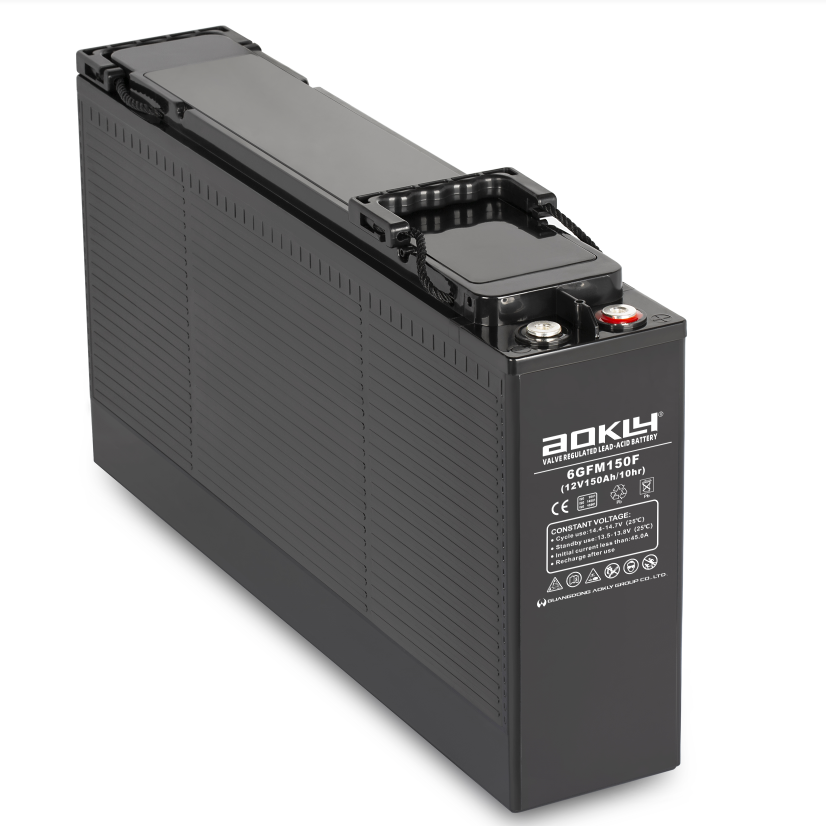

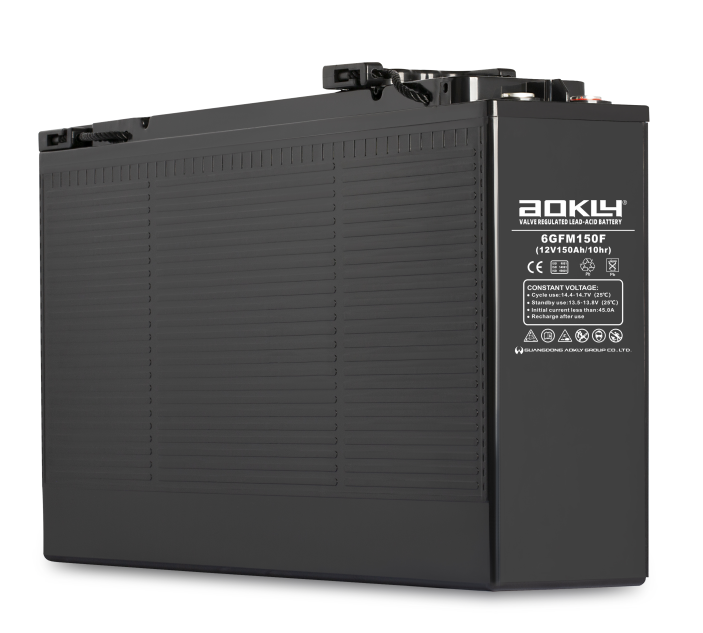

6GFM150F
6GFM150F
Front Terminal Battery

6GFM150F

Description

Voltage : 12V
Capacity : 150Ah
Size : 551*110*288*288(L*W*H*T)mm

Features

1.Capacity range: 100Ah-200Ah
2.Voltage class: 12V
3.Long design life(25℃): over 10 years
4.Low self-discharge rate: ≤3% per month
5.Excellent rate discharge performance
6. High sealed reaction efficiency: ≥99%
7.Wide operation temperature: ﹣20℃ to ﹣60℃
8.Narrow structure: each call has same heat dissipation efficiency Thus good to prevent "thermal runaway"
9.Plate: Pasted flat type
10.Front terminal is convenient for connection and maintenance
11.Centralized vent system: battery internal gas can be vented out of the system and flame arrester is equipped
12.Terminal cover: avoiding short circuit and dust ; the inspection hole is available for maintenance
13.Separator: use improved AGM separator,makes lower resistance,higher assembling pressure to increase deep cycle life
14.Terminal sealing: double sealing technic (mechanical+epoxy glue)

Compliant Standards: IEC60095、GB/T19638-2005 Passed ISO9001/ISO14001/OHSAS18001/CE

GFM Front Terminal Series
NO. ITEMS VOLTAGE CAPACITY
C 10
DIMENSION(mm) NET WEIGHT TERMINAL
NO VOLT AH/10HR Length Width Height Total Height (KGS) TYPE
1 6GFM100F 12 100 394 110 286 286 30.5 F4
2 6GFM120F 12 120 551 110 288 288 40.1 F20
3 6GFM150F 12 150 551 110 288 288 44.4 F20
4 6GFM180F 12 180 561 125 316 316 53.2 F20
5 6GFM200F 12 200 561 125 316 316 57.6 F5
Terminal Structure

Terminal direction
Factory & Production

A
B
C
D
