General Purpose Type
6FM12
Industrial Battery Companies
Industrial Battery Companies
Industrial Battery Companies
6FM12
Industrial Battery Companies
Industrial Battery Companies
Industrial Battery Companies
UPS Battery

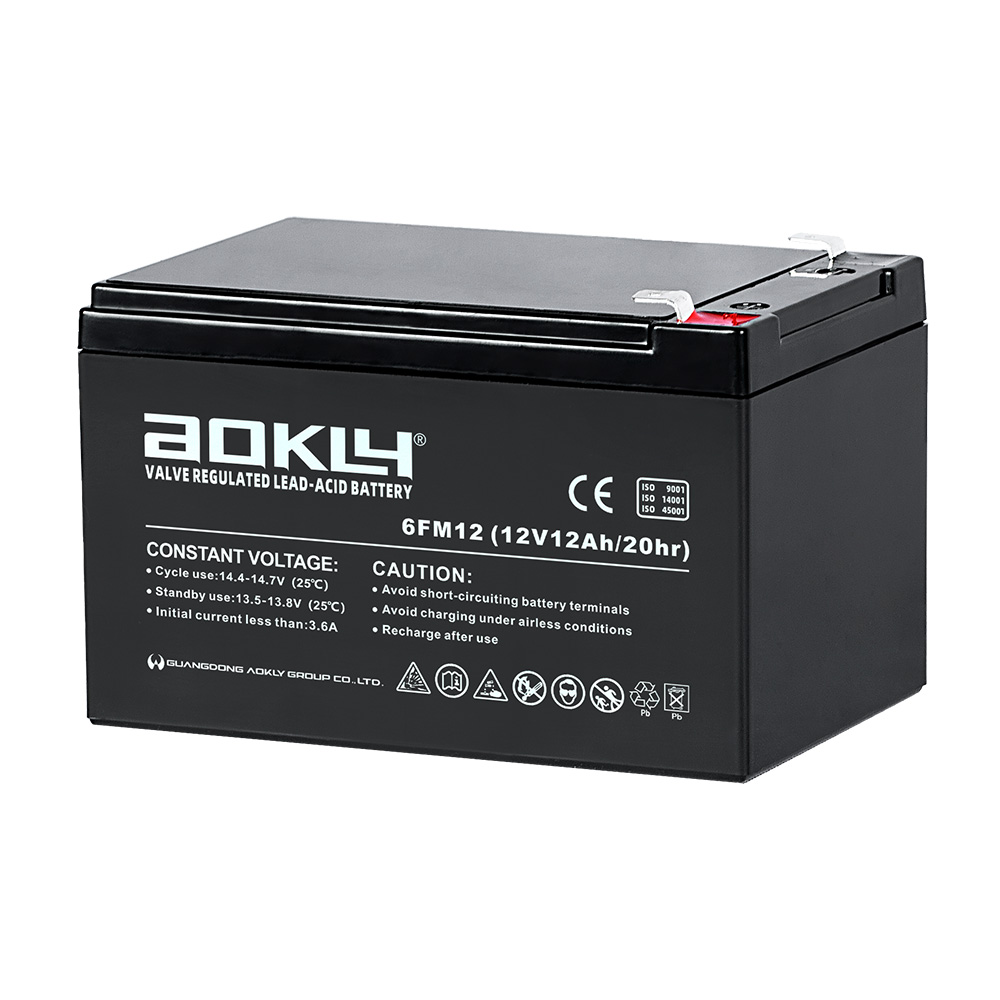

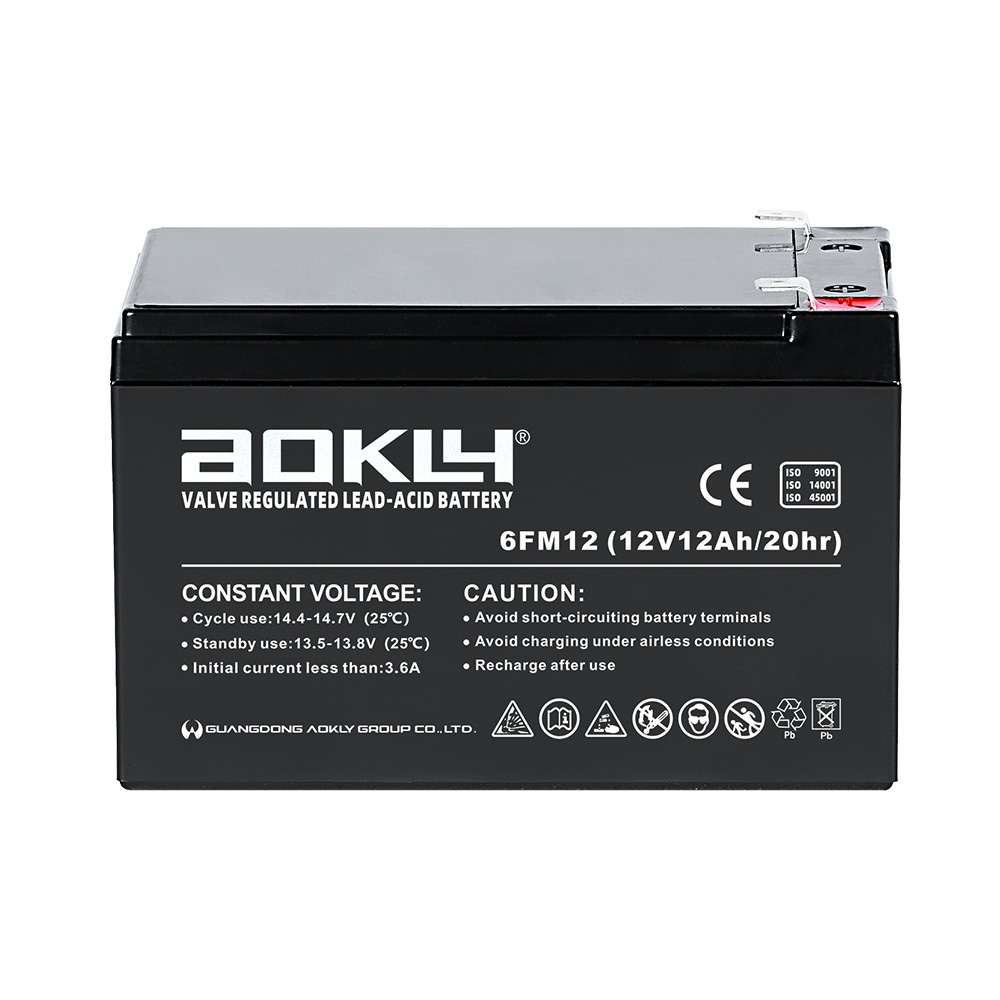

6FM12

Description

Voltage : 12V
Capacity : 12Ah
Size : 151*99*94*99(L*W*H*T)mm

Features

1. Capacity range: 5Ah-26Ah
2. Voltage class:12V
3. Long design life(25℃):5 years
4. Low self-discharge rate:≤3% per month
5. High sealed reaction efficiency:≥99%
6. Excellent rate discharge performance
7. Wide operation temperature: ﹣20℃ to 60℃
8. Structure:compact design,shorter internal connectors between cells,thus low internal resistance
9. Plate:pasted flat type
10. Terminal:two or more type terminal are available
11. Separator:using improved AGM separator,makes lower resistance higher assembling pressure to increase  cycle life
12. Battery case:High strength ABS(UL94-HB) and UL 94-V0 is optional
13. Terminal sealing: double sealing technic

Compliant Standards:IEC60095、GB/T19638-2005 Passed ISO9001/ISO14001/OHSAS18001/CE

FM Series
NO. ITEMS VOLTAGE CAPACITY
C 20
DIMENSION(mm) NET WEIGHT TERMINAL
NO VOLT AH/20HR Length Width Height Total Height (KGS) TYPE
1 3FM4 6 4 70 47 100 105 0.68 F1
2 3FM4.5 6 4.5 70 47 102 107 0.82 F1
3 6FM4 12 4 90 70 100 105 1.33 F1/F2
4 6FM5 12 5 90 70 100 105 1.55 F1/F2
5 6FM7 12 7 151 65 94 99 2 F1
6 6FM7.5 12 7.5 151 65 94 99 2.2 F2
7 6FM9 12 9 151 65 94 99 2.5 F2
8 6FM12 12 12 151 99 94 99 3.3 F2
9 6FM18 12 18 181 77 167 167 5.2 F3/F13
10 6FM20 12 20 181 77 167 167 5.2 F3/F13
11 6FM24 12 24 175 166 126 126 7.3 F14
12 6FM26 12 24 165 125.5 175 181 8.4 F15
Terminal structure

Industrial Battery Companies

Physical Dimension

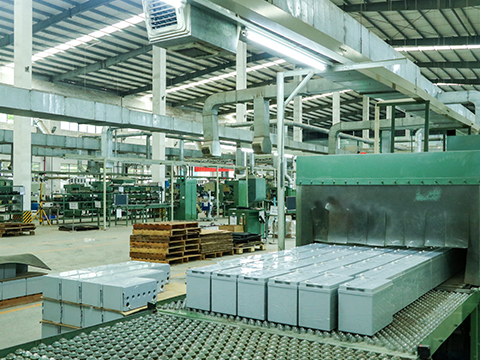

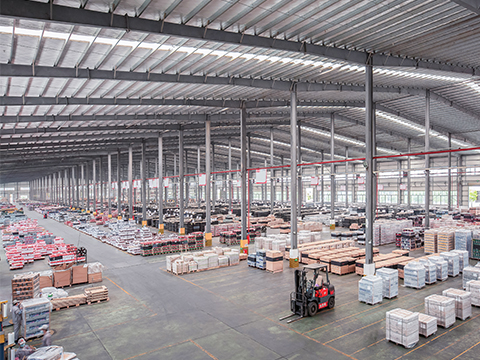

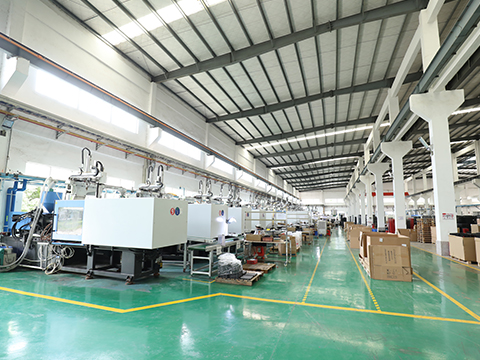

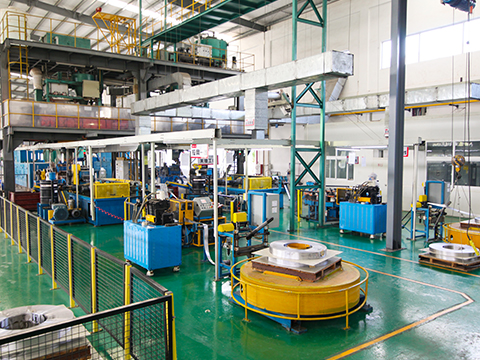

Factory & Production
