DIN Series
57524MF
Maintenance Free Battery
Maintenance Free Battery
57524MF
Maintenance Free Battery
Maintenance Free Battery
Automotive battery

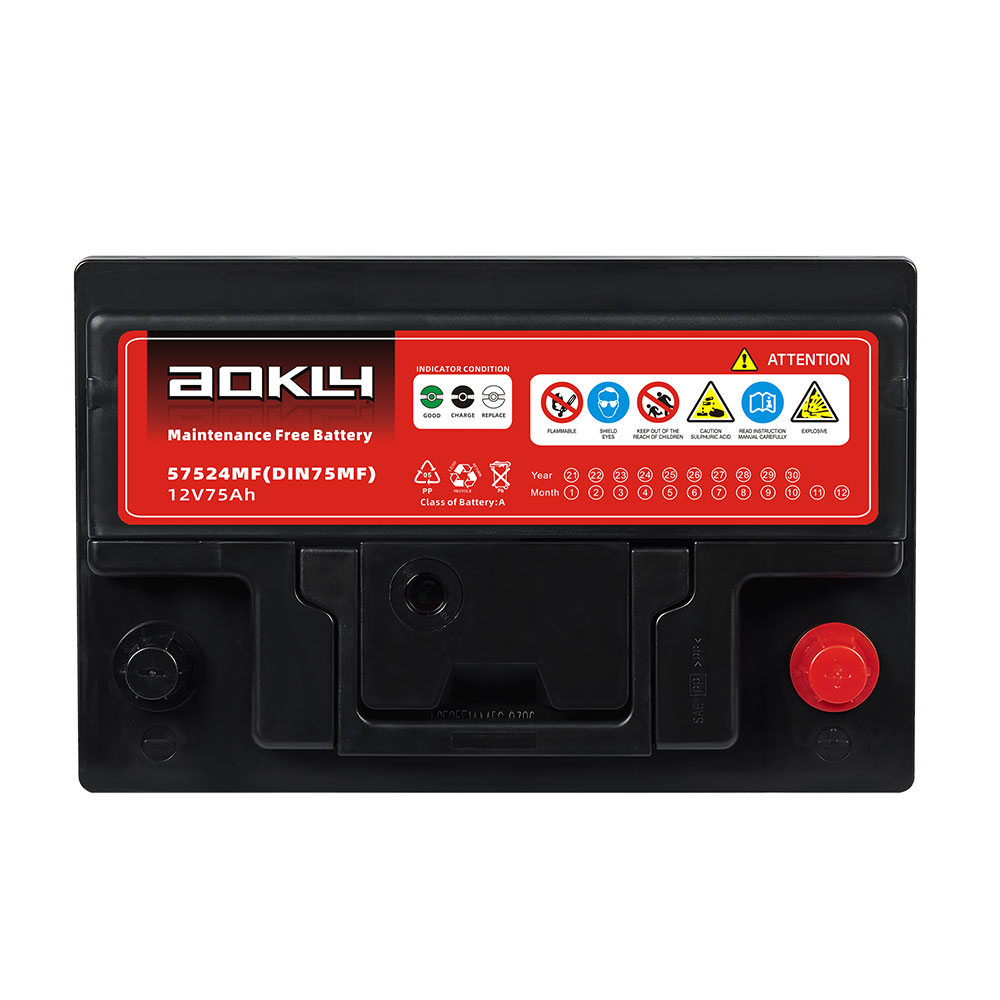

57524MF

Description

Voltage : 12V

Capacit : 75Ah

Size : 275*175*190*190(L*W*H*T)mm

Advantages of Automotive Batteries

1. Expanded technology, the unique Pb-Ca alloy formulation, with low water losing has been adopted, enabled the low self-discharge

2. 30% extra starting power compared to a standard battery

3. Extended product life in extreme hot or cold operating temperatures.

4 .Strong polypropylene container, advance lead calcium alloy and special diachylum method

5. The super- thin glass fiber in separator ( or PE envelop) And reduces the short circuit of plates group, reduce the electric resistance

6. Heat sealed lid, maximize strength and prevent electrolyte leakage

EN. Standard Battery(SMF)
EN Standard Battery (SMF)

No. Gr.No Model Capacity RC Dimension(mm) Lay-out Terminal
MINS Length Width Height T.Height
1 LB1 54321MF(DIN43MF) 12V43AH 63 210 175 175 175 0 B
2 54322MF 12V43AH 63 210 175 175 175 1 B
3 54459MF(DIN44MF) 12V44AH 64 210 175 175 175 0 B
4 54464MF(DIN44LMF) 12V44AH 64 210 175 175 175 1 B
5 54512MF(DIN45MF) 12V45AH 66 210 175 175 175 1 B
6 L1 54419MF(DIN44MF) 12V44AH 64 210 175 190 190 1 B
7 55530MF(DIN55MF) 12V55AH 81 210 175 190 190 1 B
8 LB2 54524MF(DIN45MF) 12V45AH 66 210 175 175 175 0 B
9 56044MF(DIN60LMF) 12V60AH 90 240 175 175 175 0 B
10 56044LMF(DIN60MF) 12V60AH 90 240 175 175 175 1 B
11 54519MF(DIN45MF) 12V45AH 66 240 175 175 175 0 B
12 55565MF(DIN55LMF) 12V55AH 81 240 175 175 175 1 B
13 55530MF(DIN55MF) 12V55AH 81 240 175 175 175 0 B
14 56077MF(DIN60MF) 12V60AH 90 240 175 175 175 0 B
15 56078MF(DIN60LMF) 12V60AH 90 240 175 175 175 0 B
16 56220MF(DIN62LMF) 12V62AH 91 240 175 175 175 1 B
17 56243MF(DIN62MF) 12V62AH 91 240 175 175 175 0 B
18 LB3 57024MF(DIN70MF) 12V70AH 120 274 175 175 175 0 B
19 57520MF(DIN75MF) 12V75AH 128 274 175 175 175 0 B
20 57520LMF(DIN75LMF) 12V75AH 128 274 175 175 175 1 B
21 L3 56618MF(DIN66MF) 12V66AH 115 274 175 190 190 0 B
22 57024MF(DIN70MF) 12V70AH 120 274 175 190 190 0 B
23 57220MF(DIN72MF) 12V72AH 125 274 175 190 190 0 B
24 57219MF(DIN72LMF) 12V72AH 125 274 175 190 190 1 B
25 57413MF(DIN74LMF) 12V74AH 126 274 175 190 190 1 B
26 57412MF(DIN74MF) 12V74AH 126 274 175 190 190 0 B
27 57524MF(DIN75MF) 12V75AH 128 274 175 190 190 0 B
28 58033MF(DIN80MF) 12V80AH 135 274 175 190 190 0 B
29 58044MF(DIN80LMF) 12V80AH 135 274 175 190 190 1 B
30 L4 58043MF(DIN80MF) 12V80AH 135 311 175 190 190 0 B
31 58812MF(DIN88MF) 12V88AH 150 311 175 190 190 0 B
32 60018MF(DIN100MF) 12V100AH 170 311 175 190 190 0 B
33 60019MF (DIN100LMF) 12V100AH 170 311 175 190 190 1 B
34 L5 58827MF(DIN88MF) 12V88AH 150 350 175 190 190 0 B
35 59512MF(DIN95MF) 12V95AH 165 350 175 190 190 0 B
36 60038MF(DIN100MF) 12V100AH 170 350 175 190 190 0 B
37 F51 63530MF(DIN135MF) 12V135AH 240 509 180 195 220 4 B
38 64020MF(DIN140MF) 12V140AH 248 509 180 195 220 4 B
39 G51 67043MF(DIN170MF) 12V170AH 300 517 221 195 228 4 B
40 68032MF(DIN180MF) 12V180AH 330 517 221 195 228 4 B
41 H52 70027MF(DIN200MF) 12V200AH 365 506 264 200 232 4 B
42 73011MF(DIN230MF) 12V230AH 385 506 264 200 232 4 B
43 DINCMF 12V225AH 376 506 264 200 232 4 B
