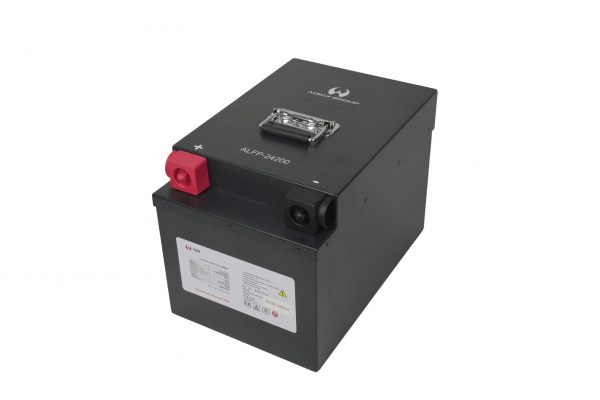

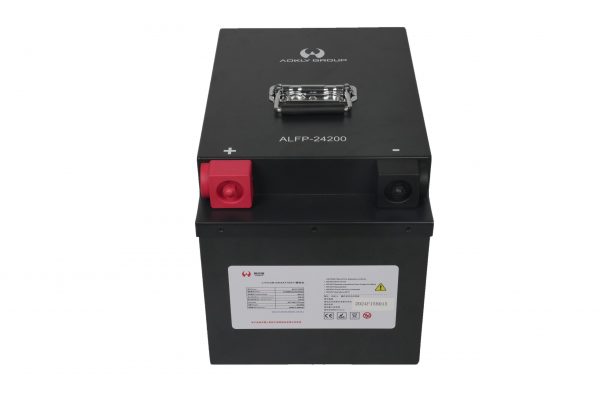

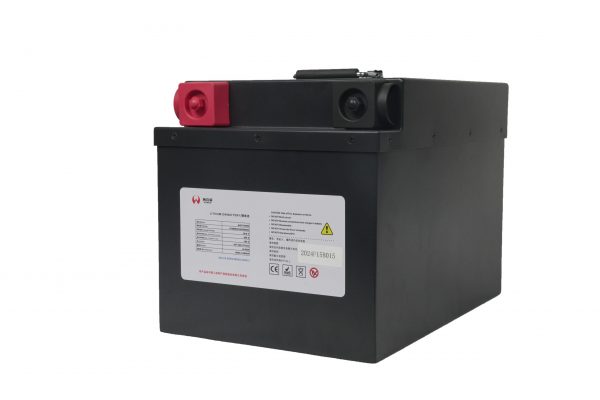

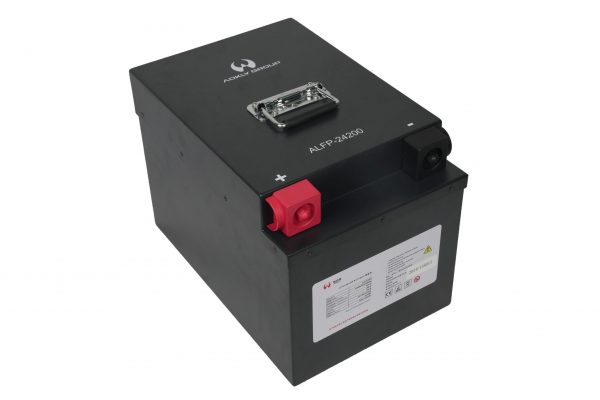

| MODEL | ALFP-2450 | ALFP-2480 | ALFP-24100 | ALFP-24150 | ALFP-24200 | |
| Basic Parameters | Rated Voltage | 25.6V | ||||
| Rated Capacity | 50Ah | 80Ah | 100Ah | 150Ah | 200Ah | |
| Rated Energy | 1280wh | 2048wh | 2560wh | 3840wh | 5120wh | |
| Combination Method | 8S1P | |||||
| Cycle Life | ≥3000 cycles @80%DOD | |||||
| Self Discharge | 1%/months | |||||
| Efficiency of Charge | ≥97% | |||||
| Efficiency of Discharge | ≥98% | |||||
| Charge | Charge Voltage | 28.8V | ||||
| Charge Current (Recomm.) | 20A | 20A | 30A | 30A | 40A | |
| Charge Current (Max.) | 30A | 40A | 50A | 100A | 100A | |
| Discharge | Discharge Cut-off Voltage | 20.0V | ||||
| Discharge Current (Max.) | 50A | 100A | 120A | 150A | 200A | |
| Pulse Current | 75A(3S) | 120A(3S) | 150A(3S) | 200A(3S) | 250A(3S) | |
| Environmental | Charge Temperature | 0℃ to 45℃ | ||||
| Discharge Temperature | -20℃ to 60℃ | |||||
| Humidity | 5% to 95% | |||||
| Physical Characteristics | IP Class | IP54 | ||||
| Plastic Case | Metal | |||||
| Dimensions ( in. /mm. ) | 249×184×160 | 320×285×190 | 345×280×222 | 337×358×207 | 397×266×276 | |
| Weight (lbs. /kg.) | 14kg | 22kg | 24kg | 28kg | 32kg | |
| Others(optional) | Recharger, Electric meter | |||||
