PRODUCTS

12V 150Ah 517*221*195*221mm

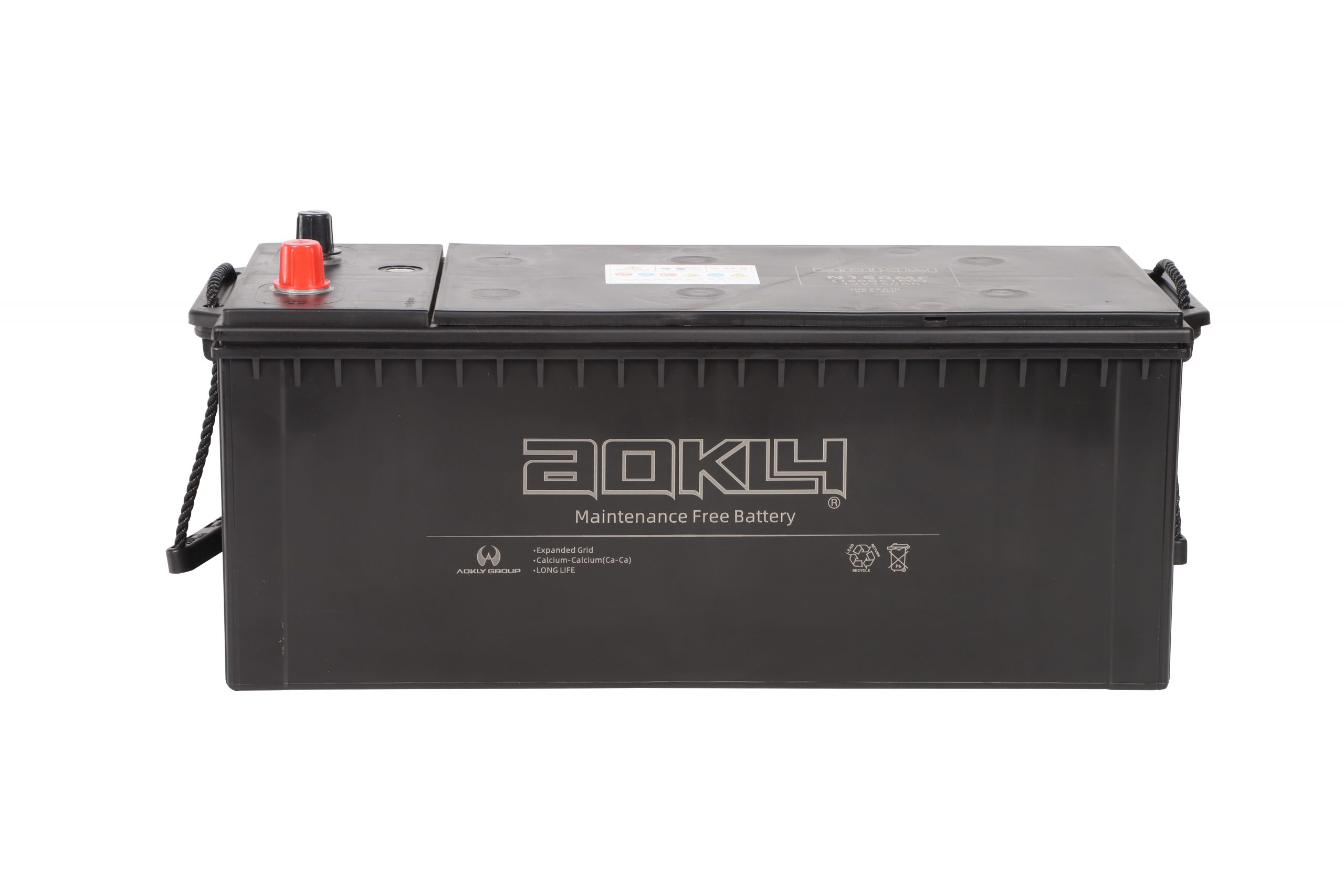

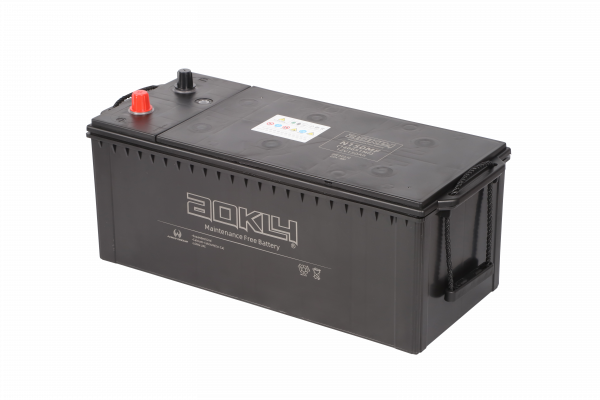

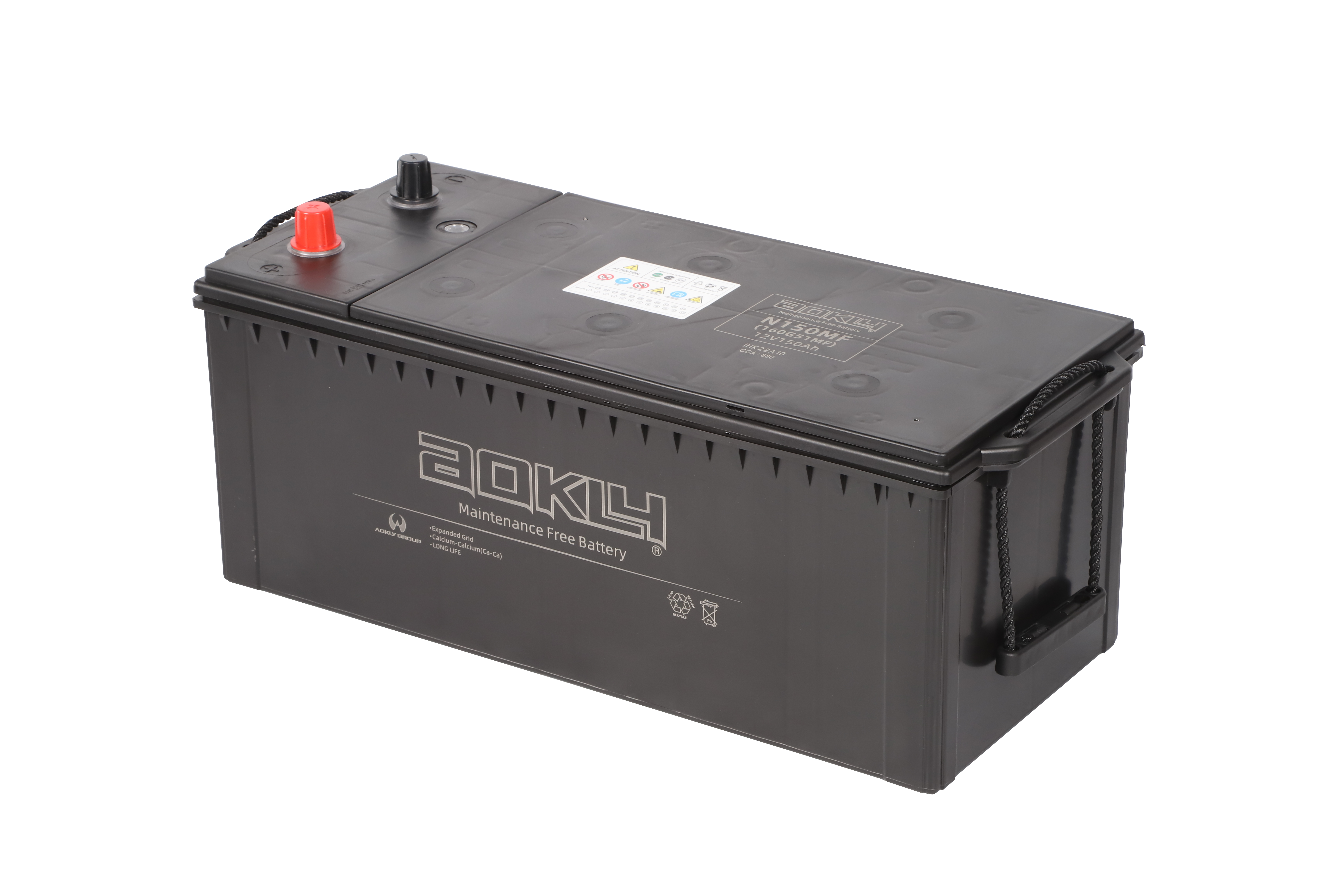

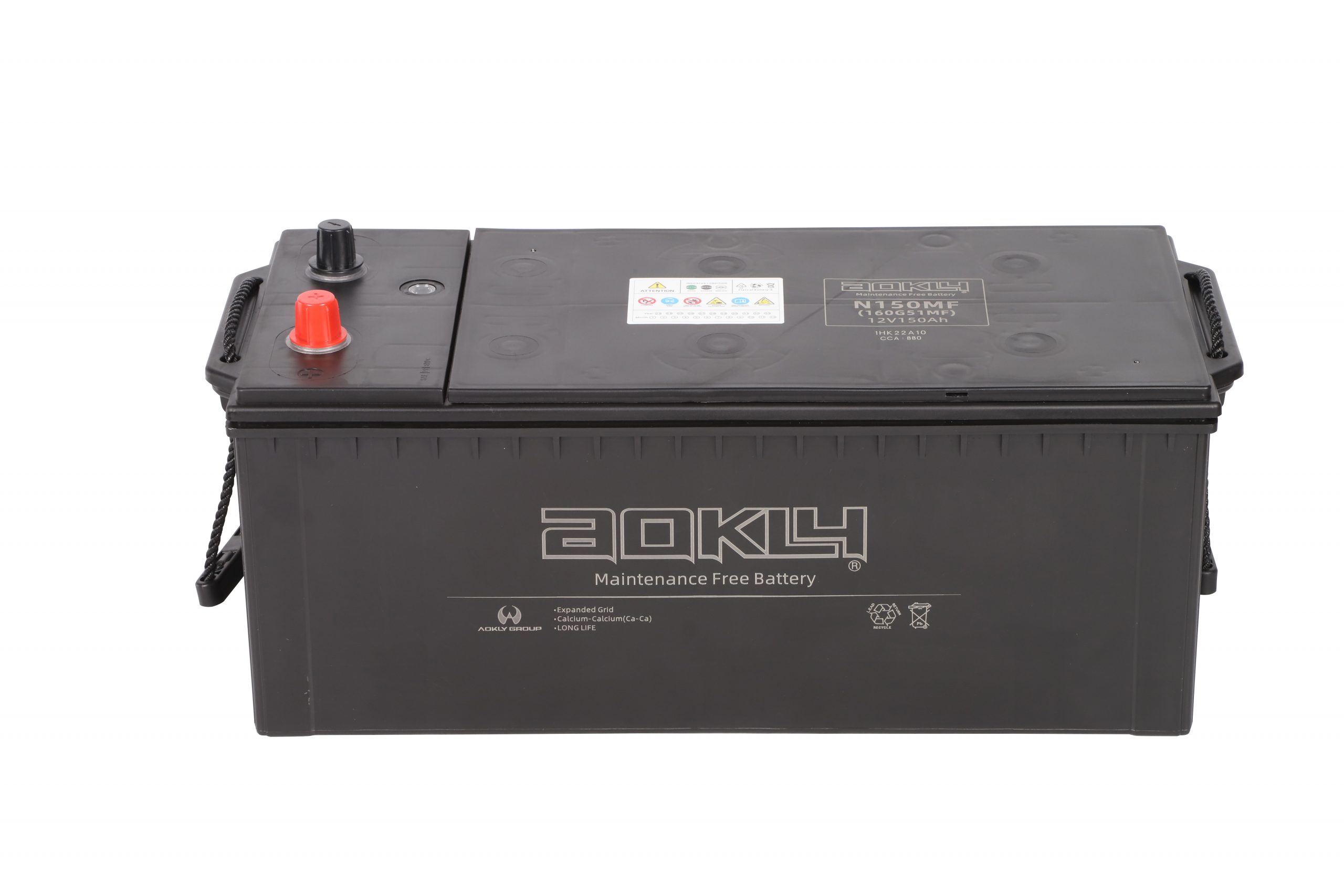

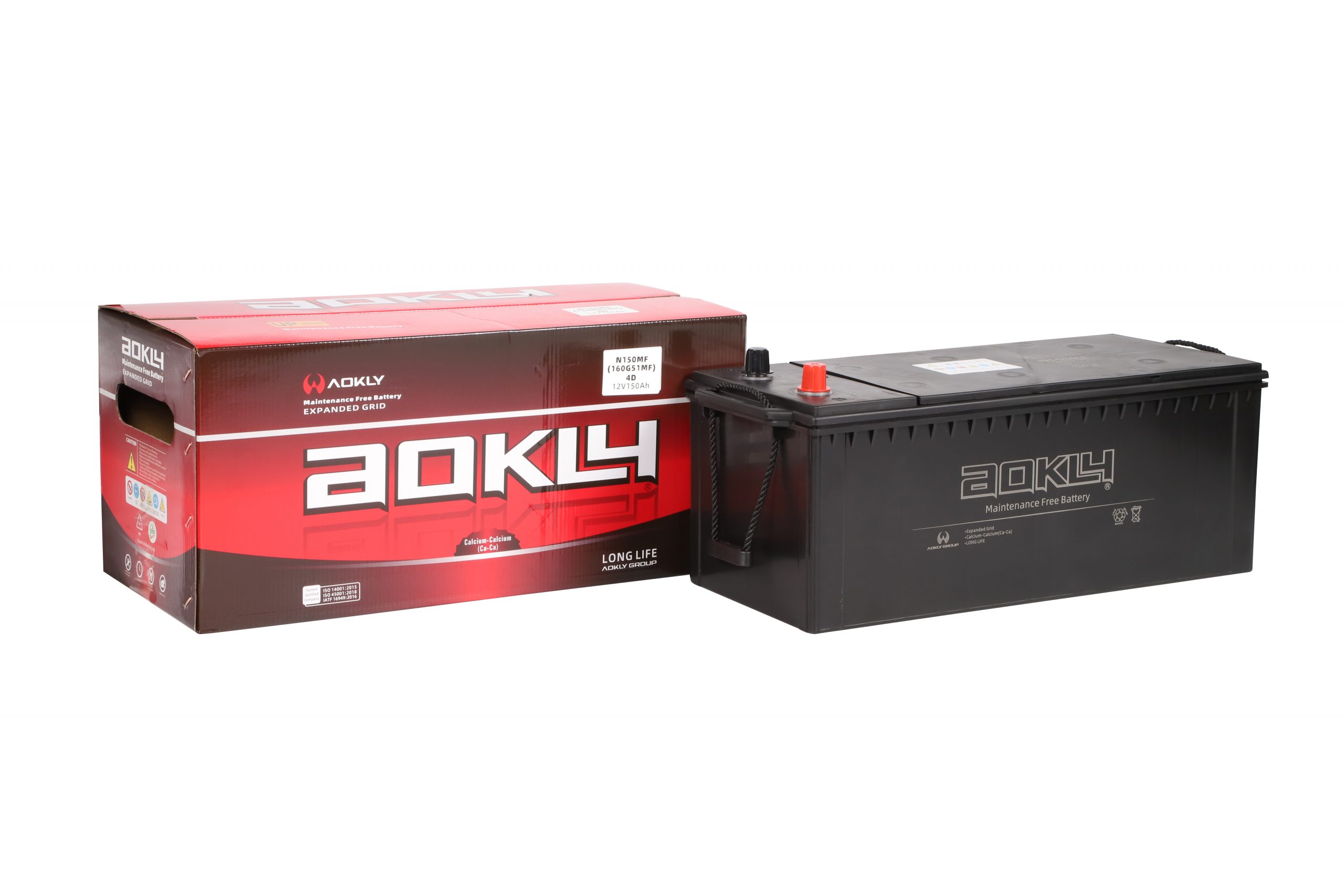

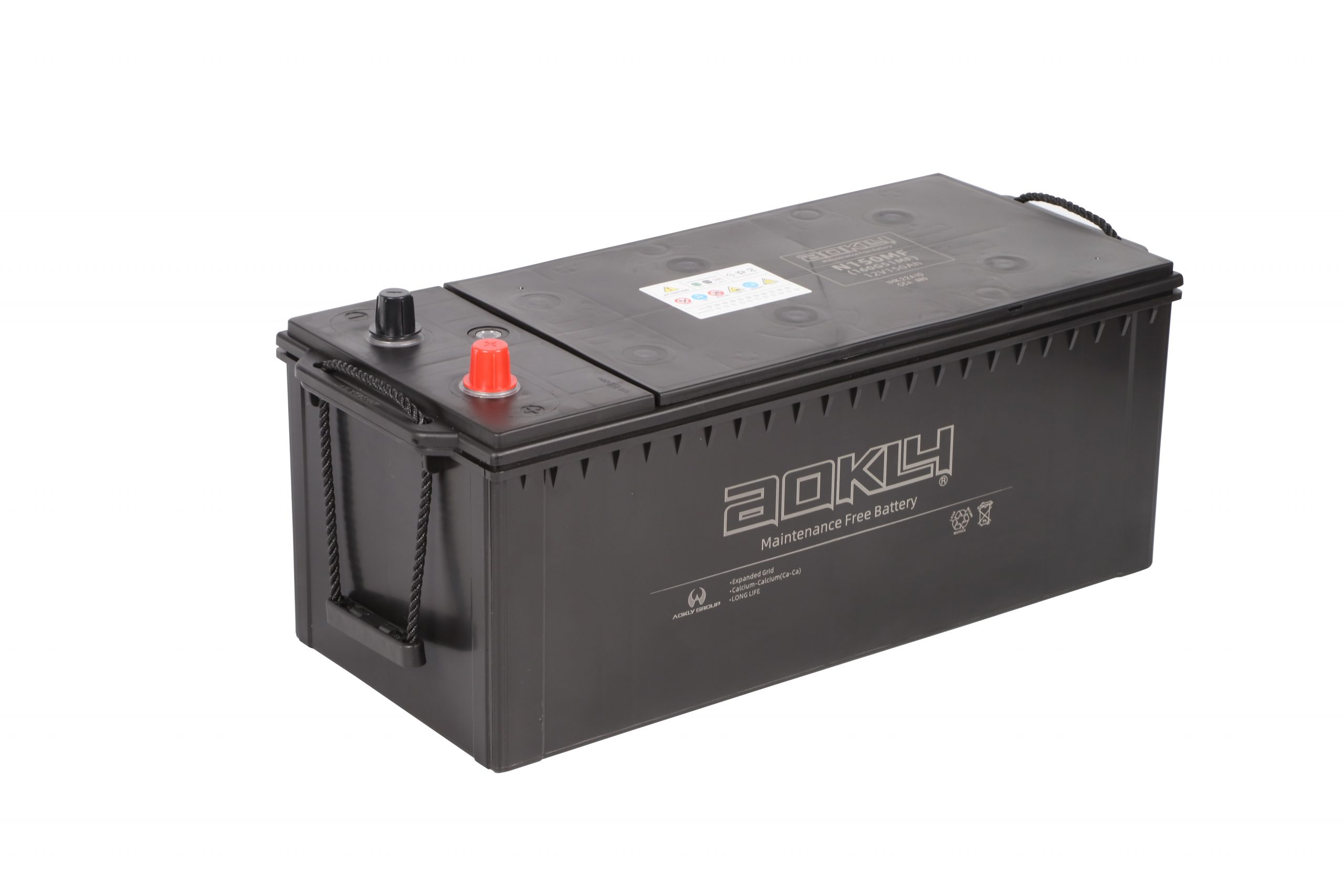

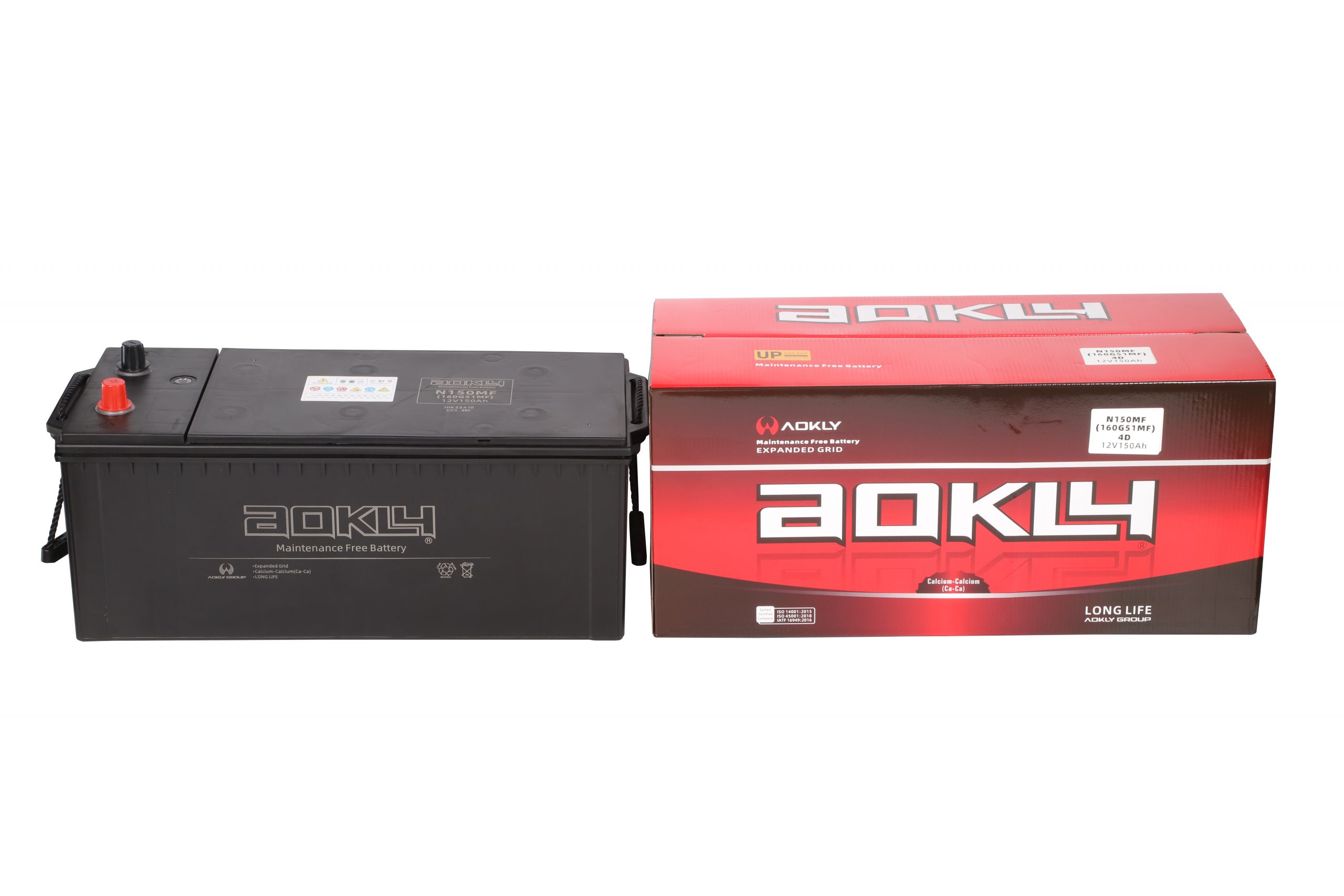

N150MF(160G51MF)12V150Ah

Main Features:

Maintenance-free, no water topping up needed.
Sturdy PP housing & lead-calcium alloy plates.
Good acid & vibration resistance, low water loss, high CCA.
Dual charging modes: ≤0.1C constant current / 14.2–14.6V constant voltage.
Store in cool dry shade; recharge if stored over 6 months before delivery.
Fits cars with 14.2–14.4V charging systems.
Easy maintenance: Keep clean with tight connections.

MOQ: 300 PCS

Product Details

JIS Standard Battery(SMF)
No.	JIS	New JIS NO.	Old JIS NO.	Capacity	Dimension(mm)	GW	CCA	RC	Lay-out	Terminal	Qty/Pallet
No.	Gr.NO.	New JIS NO.	Old JIS NO.	(20Hr)	LWH*TH	(KGS)	(SAE)	(MINS)	Lay-out	Terminal	Qty/Pallet
1	B19	U1-33MF		33	195127160*184	7.7	350	31	1	C	256
2		32B19RMF	NS40	32	195127200*220	9.0	410	43	1	A	224
3		32B19LMF	NS40L	32	195127200*220	9.0	410	43	0	A	224
4	B20	36B20RMF	NS40Z	36	195127200*220	9.9	420	55	1	A	224
5		36B20LMF	NS40ZL	36	195127200*220	9.9	420	55	0	A	224
6		36B20RSMF	NS40Z(S)	36	195127200*220	9.9	420	55	1	B	224
7		36B20LSMF	NS40ZL(S)	36	195127200*220	9.9	420	55	0	B	224
8	C24	32C24RMF	N40S	36	240129199*220	10.8	510	53	1	A	175
9	C24	32C24LMF	N40SL	36	240129199*220	10.8	510	53	0	A	175
10	B24	50B24RMF	N40	40	240129199*220	11.9	530	71	1	B	175
11		50B24LMF	N40L	40	240129199*220	11.9	530	71	0	B	175
12		55B24RMF	NS60	45	240129199*220	11.9	530	71	1	A	175
13		55B24LMF	NS60L	45	240129199*220	11.9	530	71	0	A	175
14		46B24RSMF	NS60S	45	240129199*220	11.9	530	71	1	B	175
15		46B24LSMF	NS60LS	45	240129199*220	11.9	530	71	0	B	175
16		55B24RMF	NX100-S6	45	240129199*220	11.9	530	71	1	A	175
17		55B24LMF	NX100-S6L	45	240129199*220	11.9	530	71	0	A	175
18	D23	55D23RMF		60	230173200*220	14.8	600	87	1	B	147
19		55D23LMF		60	230173200*220	14.8	600	87	0	B	147
20		75D23RMF		65	230173200*220	16.0	600	110	1	B	147
21		75D23LMF		65	230173200*220	16.0	600	110	0	B	147
22		80D23RMF		70	230173200*220	16.0	600	110	1	B	147
23		80D23LMF		70	230173200*220	16.0	600	110	0	B	147
24	D26	48D26RMF	N50	50	258173200*220	15.0	500	70	1	B	126
25		48D26LMF	N50L	50	258173200*220	15.0	500	70	0	B	126
26		55D26RMF	N50Z	60	258173200*220	16.6	650	96	1	B	126
27		55D26LMF	N50ZL	60	258173200*220	16.6	650	96	0	B	126
28		65D26RMF	NS70	65	258173200*220	17.0	680	104	1	B	126
29		65D26LMF	NS70L	65	258173200*220	17.0	680	104	0	B	126
30		80D26RMF	NX110-5	70	258173200*220	17.0	680	104	1	B	126
31		80D26LMF	NX110-5L	70	258173200*220	17.0	680	104	0	B	126
32	D31	65D31RMF	N70	70	304173200*220	19.6	720	114	1	B	119
33		65D31LMF	N70L	70	304173200*220	19.6	720	114	0	B	119
34		75D31RMF	N70Z	75	304173200*220	19.6	720	114	1	B	119
35		75D31LMF	N70ZL	75	304173200*220	19.6	720	114	0	B	119
36		95D31RMF	NX120-7	80	304173200*220	21.0	860	140	1	B	119
37		95D31LMF	NX120-7L	80	304173200*220	21.0	860	140	0	B	119
38		105D31RMF		90	304173200*220	21.5	780	154	1	B	119
39		105D31LMF		90	304173200*220	21.5	780	154	0	B	119
40	E41	95E41RMF	N100	100	402172203*223	25.8	1000	180	1	B	84
41		95E41LMF	N100L	100	402172203*223	25.8	1000	180	0	B	84
42		115E41MF	N100Z	110	402172203*223	27.0	1100	196	1	B	84
43		130E41MF	NS120	120	402172203*223	27.0	1100	196	1	B	84
44	F51	135F51MF	N120MF	120	509180195*220	31.3	810	218	3	B	56
45	G51	160G51MF	N150MF	150	517221195*221	38.2	940	280	3	B	56
46	H52	210H52MF	N200MF	200	512251215*236	47.5	1100	365	3	B	42
47		74-60		53	259176182*182	15.3	550	87	0	E	144
48		78-72		63	269178182*182	15.9	600	96	0	E	144
49		78-60		60	269178182*182	15.9	600	96	0	E	144
50		75-72		55	240175190*190	14.5	600	87	0	B	144
51		68-60s		45	240175190*190	13.5	500	70	0	B	144
52		65-72S		65	290190170*190	17.5	750	114	0	B	98
