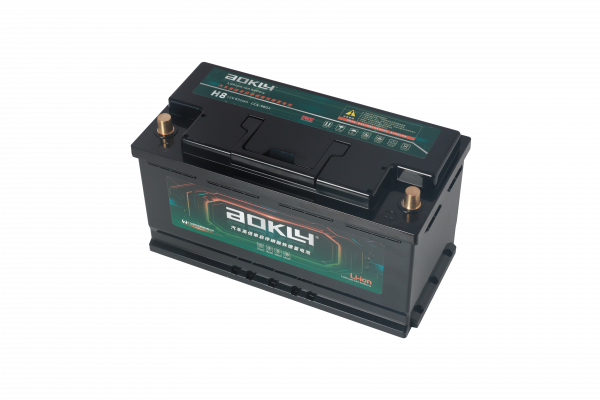

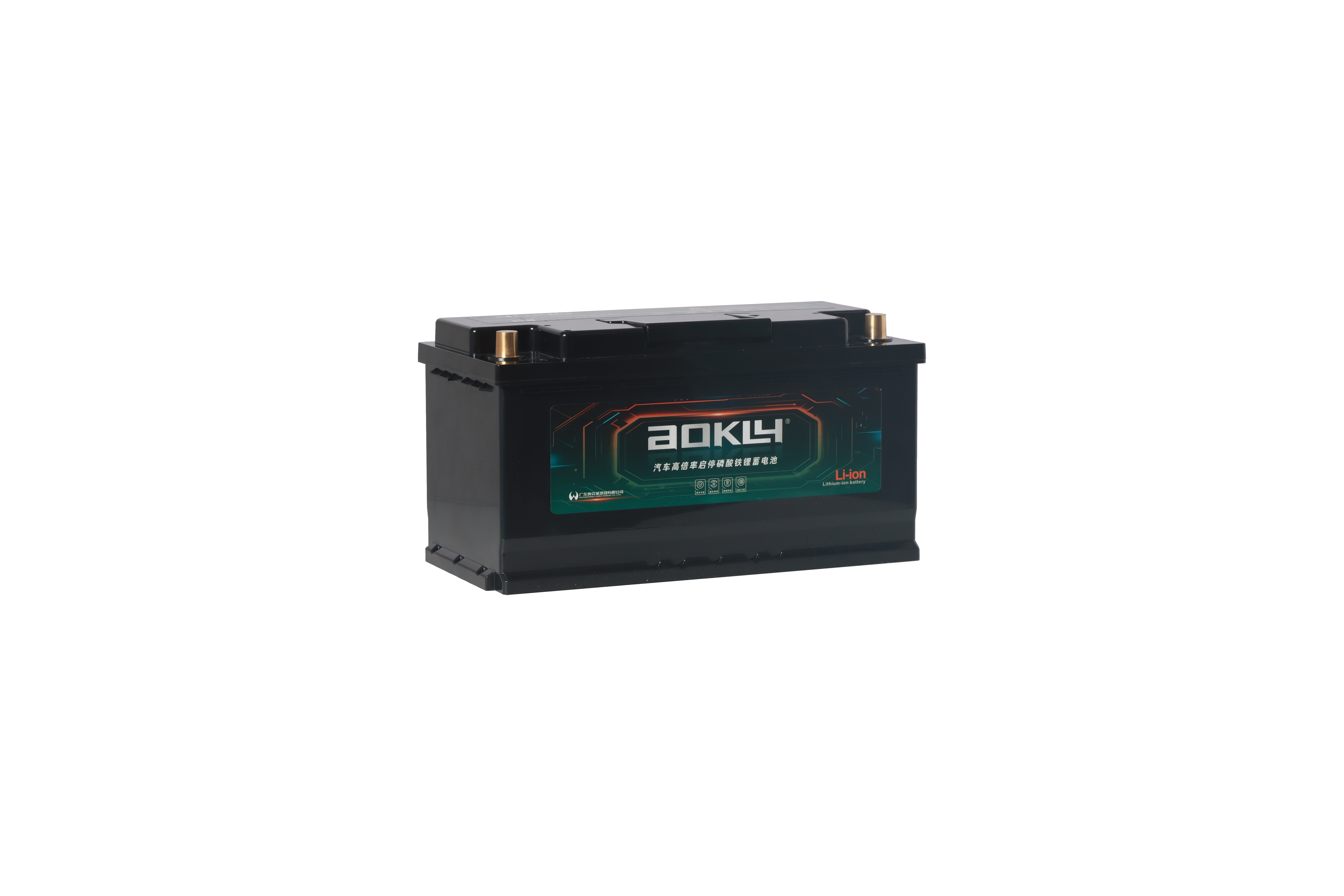

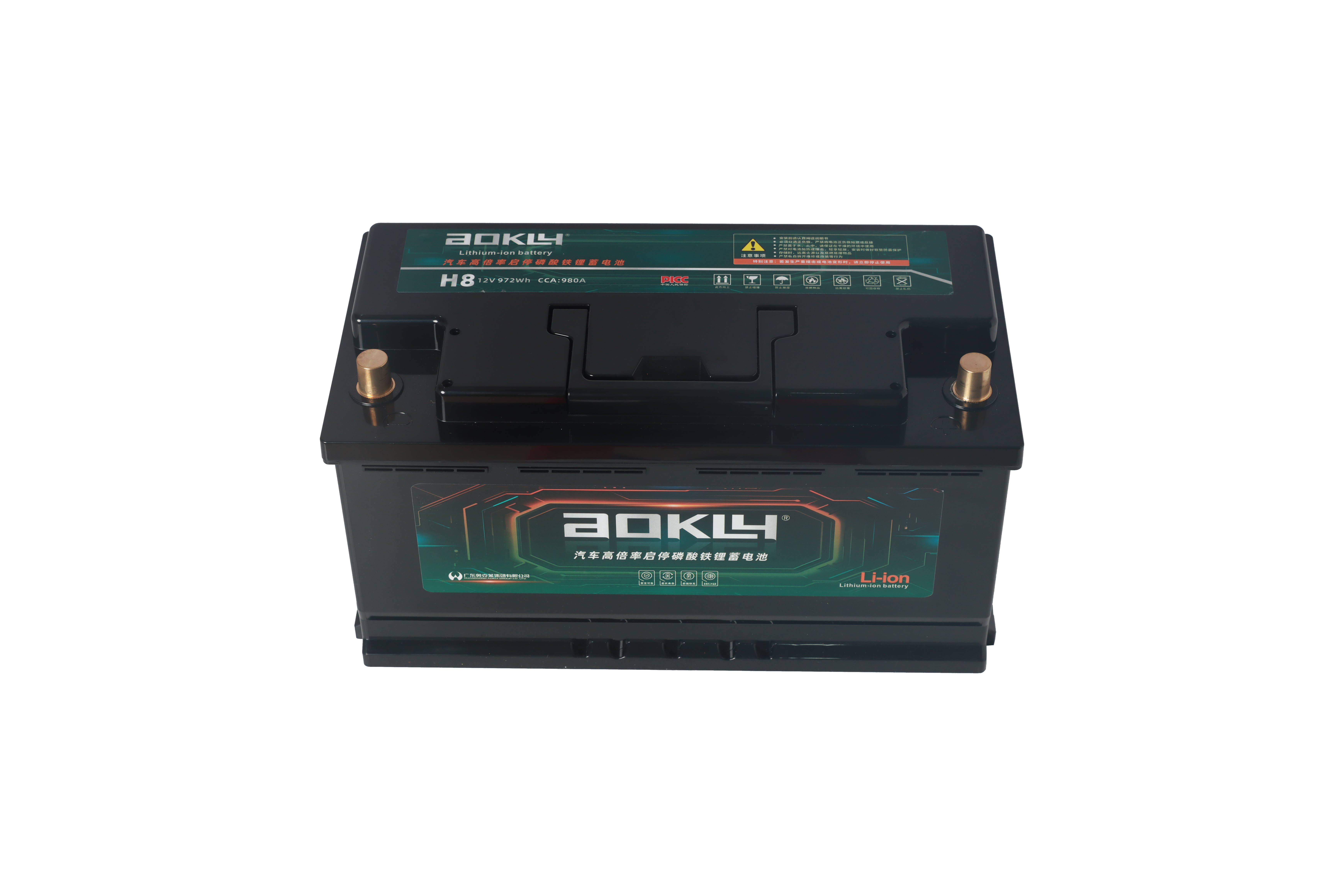

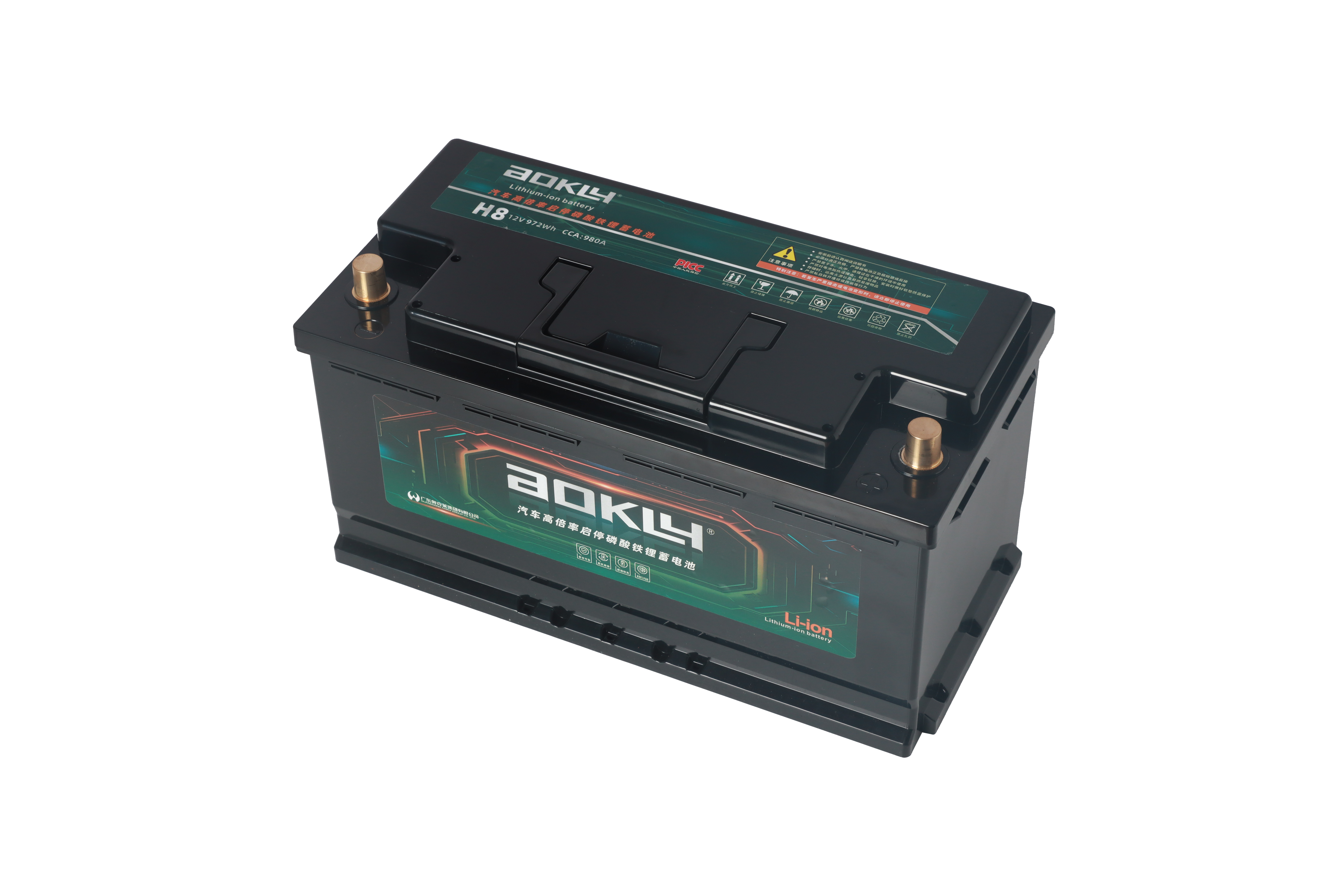

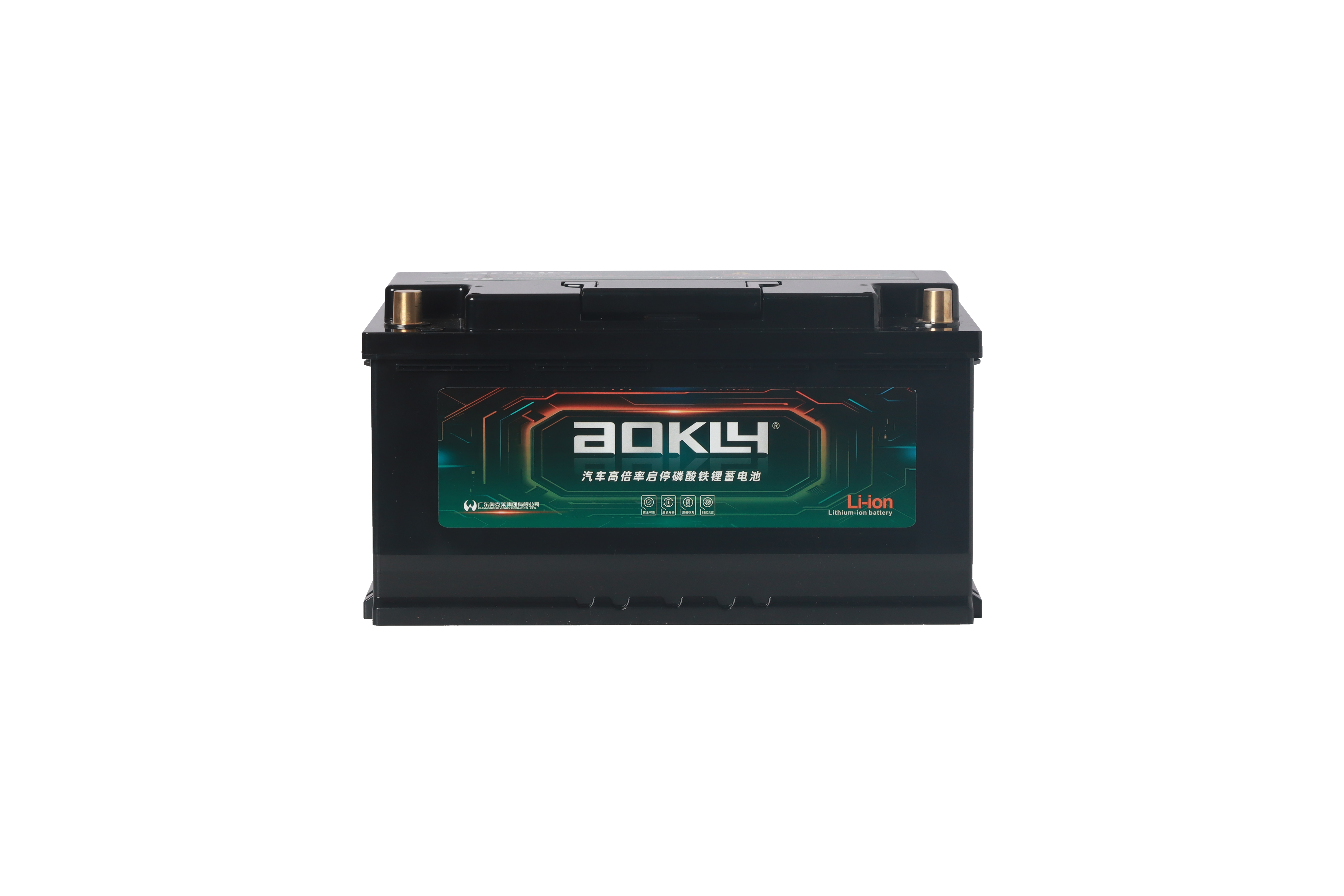

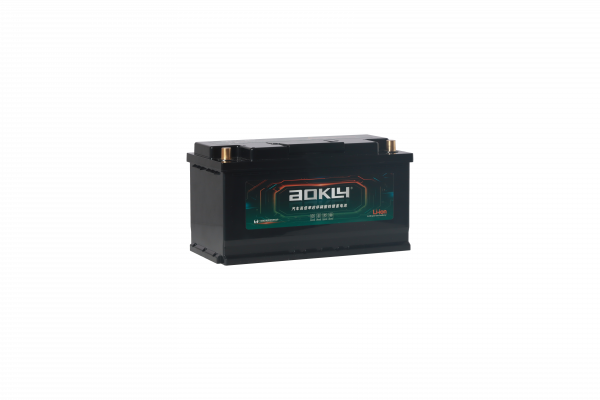

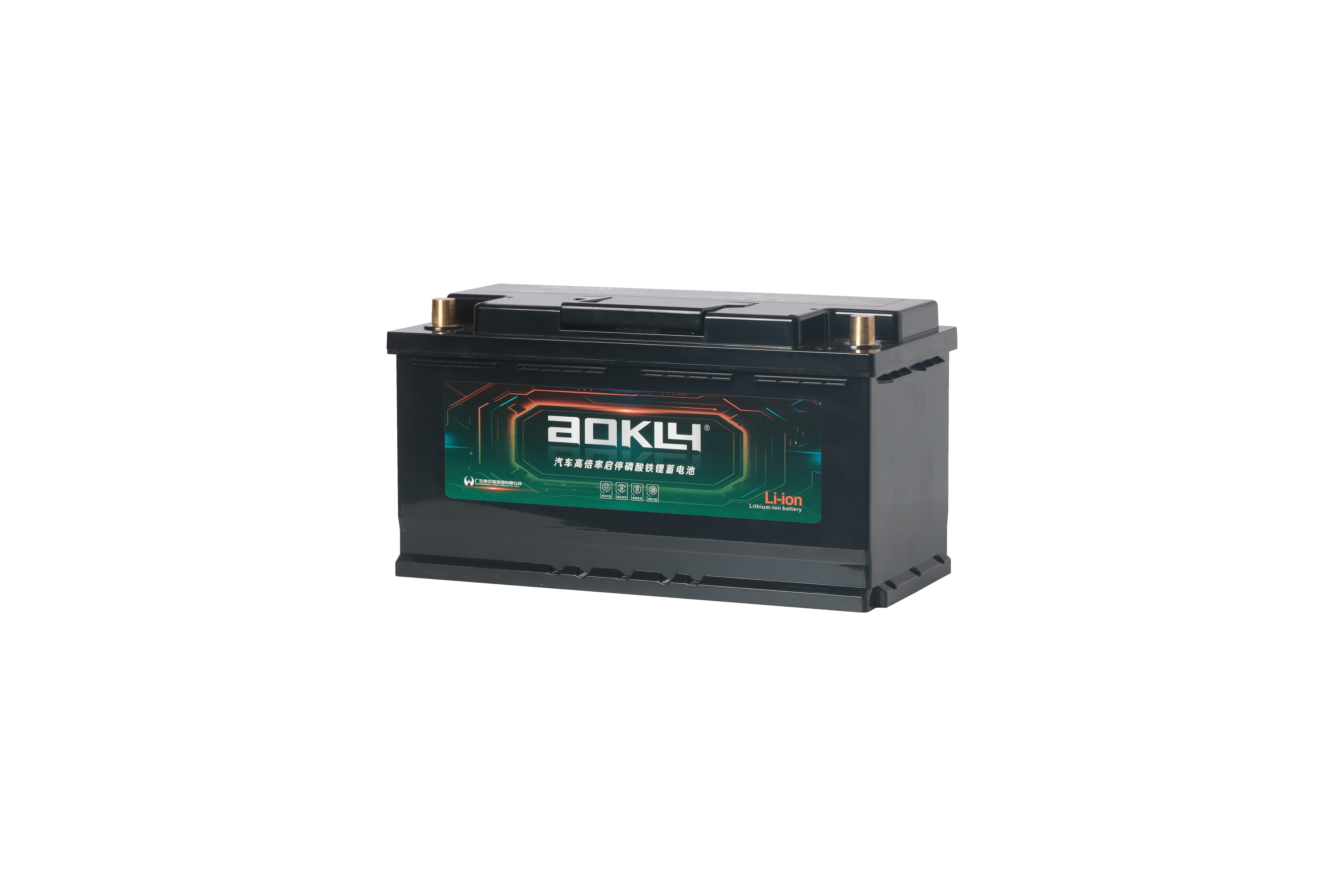

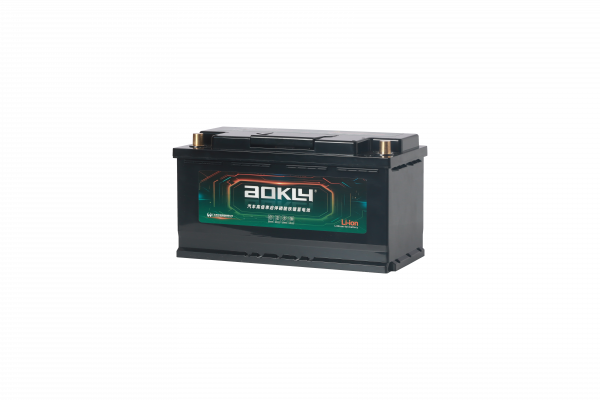

| Model | H5-60-L-AL | H6-70-L-AL | H7-80-L-AL | H8-92-L-AL | H9-105-L-AL |
| Cell Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Rated Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Rated Capacity | 54Ah | 54Ah | 54Ah | 81Ah | 81Ah |
| Rated Energy | 648Wh | 648Wh | 648Wh | 972Wh | 972Wh |
| Combination Mode | 4S2P | 4S2P | 4S2P | 4S3P | 4S3P |
| Charge Efficiency | 97% | 97% | 97% | 97% | 97% |
| Discharge Efficiency | 98% | 98% | 98% | 98% | 98% |
| Month Self Discharge | 3% | 3% | 3% | 3% | 3% |
| Cycle Life | ≥3000cycle@80%DOD@25℃ | ≥3000cycle@80%DOD@25℃ | ≥3000cycle@80%DOD@25℃ | ≥3000cycle@80%DOD@25℃ | ≥3000cycle@80%DOD@25℃ |
| Charge Voltage | 14.4V | 14.4V | 14.4V | 14.4V | 14.4V |
| Charge Current (Recomm.) | 20A | 20A | 20A | 30A | 30A |
| Charge Current (Max.) | 50A | 50A | 50A | 60A | 60A |
| Max. Continuous Discharge Current | 100A | 100A | 100A | 150A | 150A |
| CCA | 750A-5S | 850A-5S | 850A-5S | 980A-5S | 980A-5S |
| Discharge Cut-off Voltage | 10.0V | 10.0V | 10.0V | 10.0V | 10.0V |
| Charge Temperature | 0℃~45℃ | 0℃~45℃ | 0℃~45℃ | 0℃~45℃ | 0℃~45℃ |
| Discharge Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Plastic Case | ABS | ABS | ABS | ABS | ABS |
| Dimensions (mm.) | 244175189 | 280176185 | 315176187 | 354176187 | 397176187 |
| Weight (kg.) | 7.3 | 7.4 | 8.1 | 10.5 | 11 |
| Optional | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
