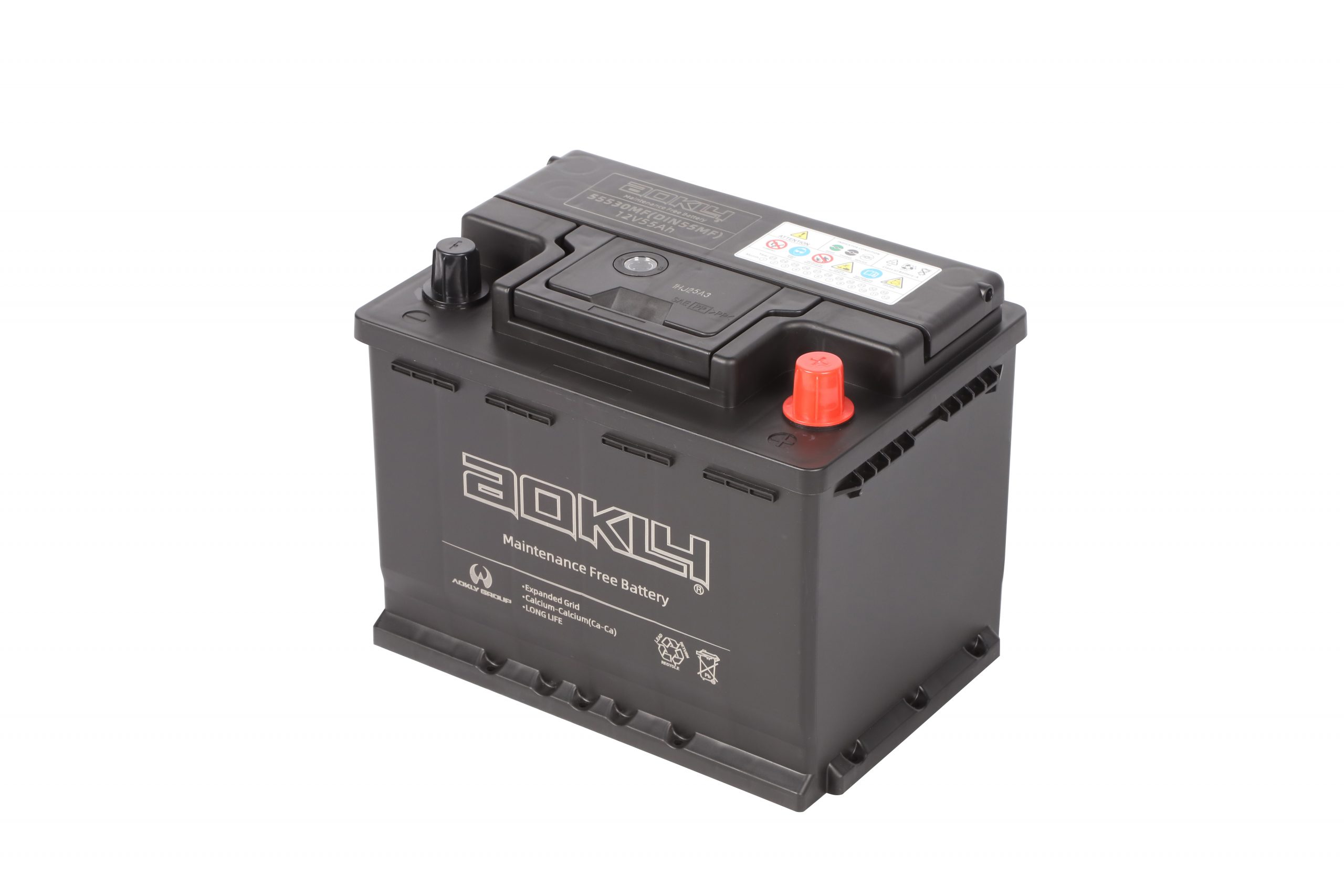

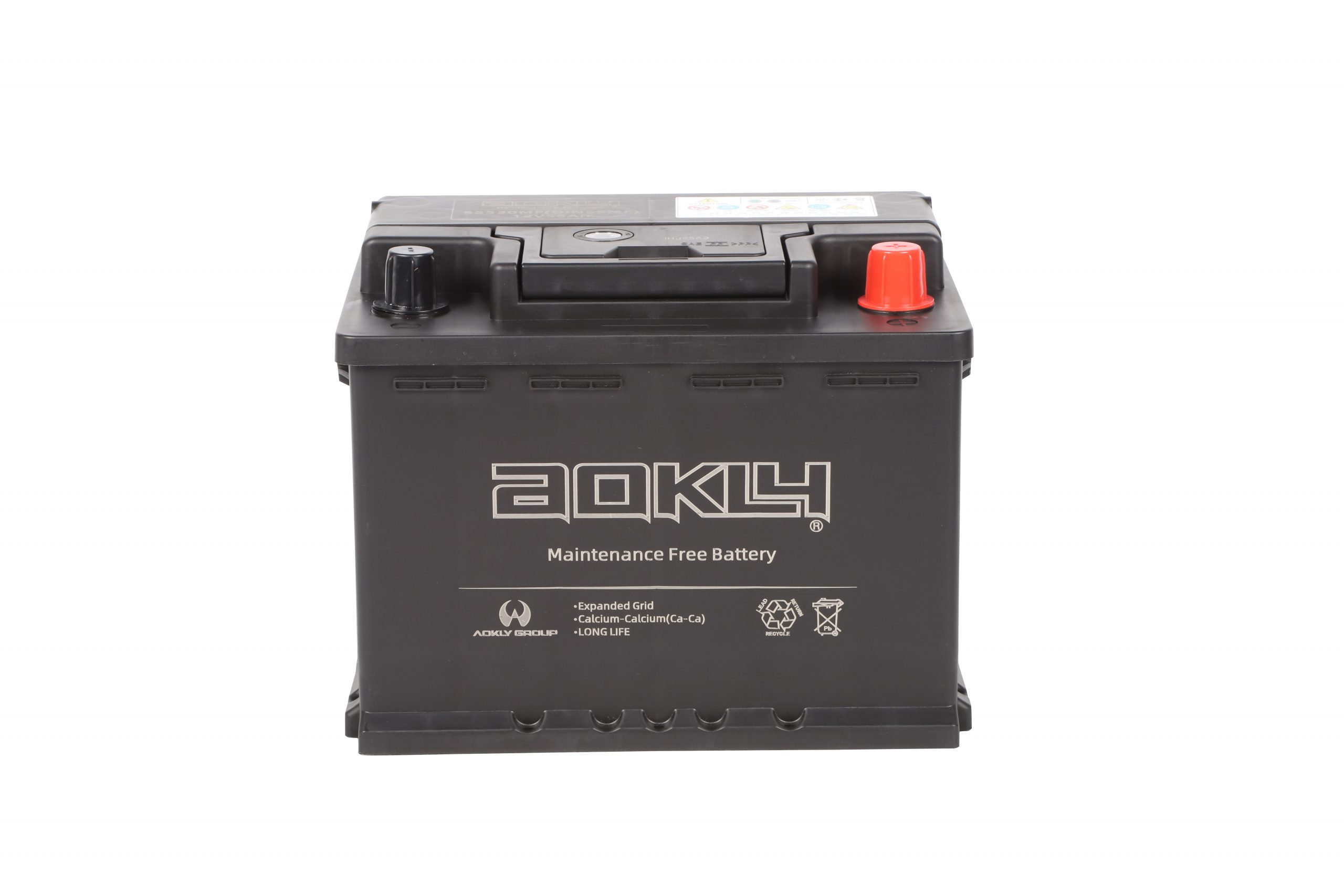

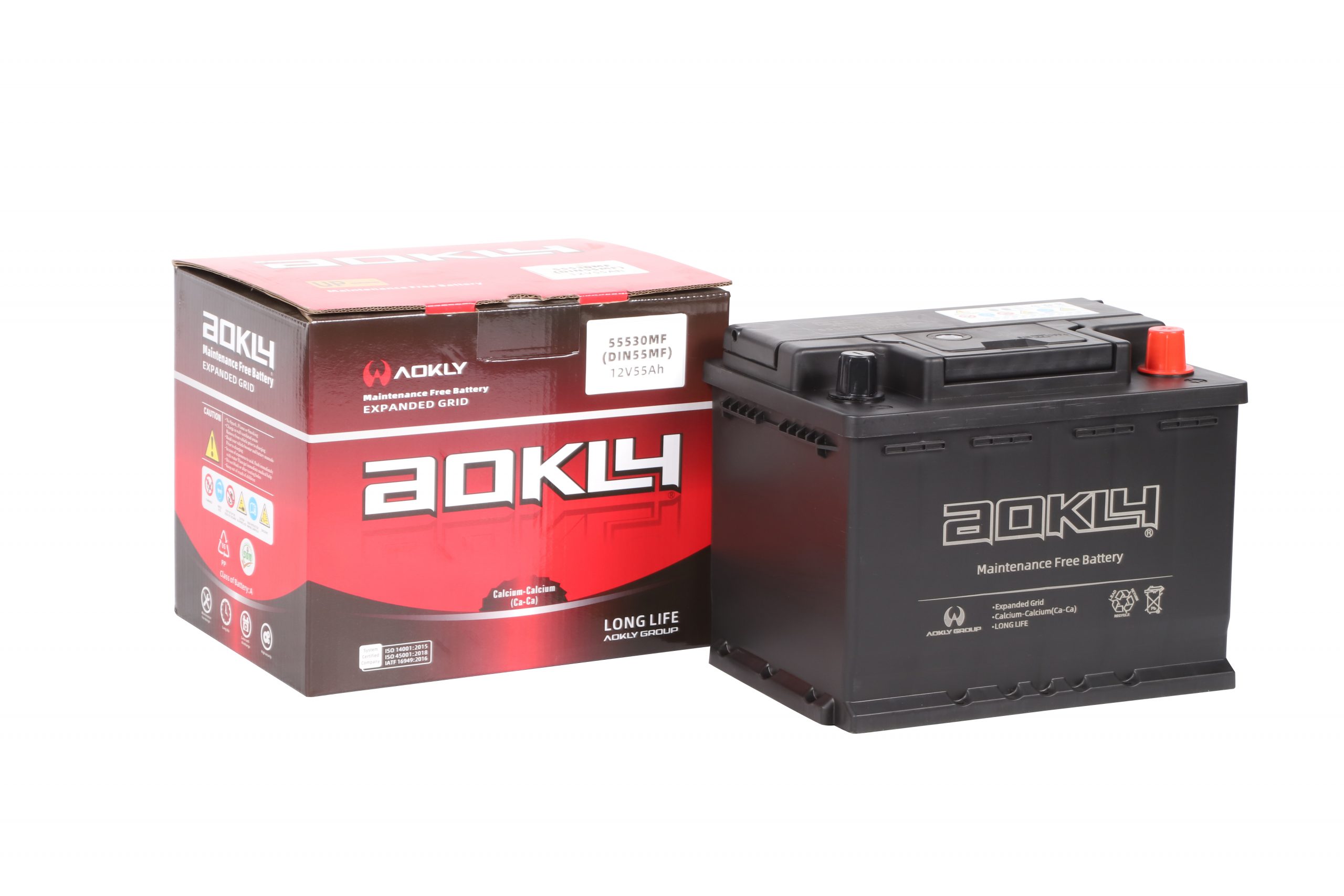

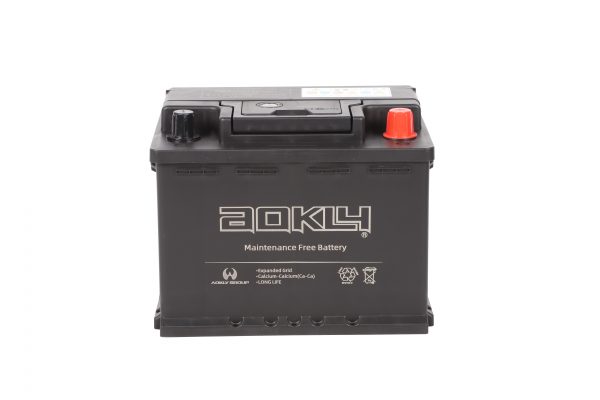

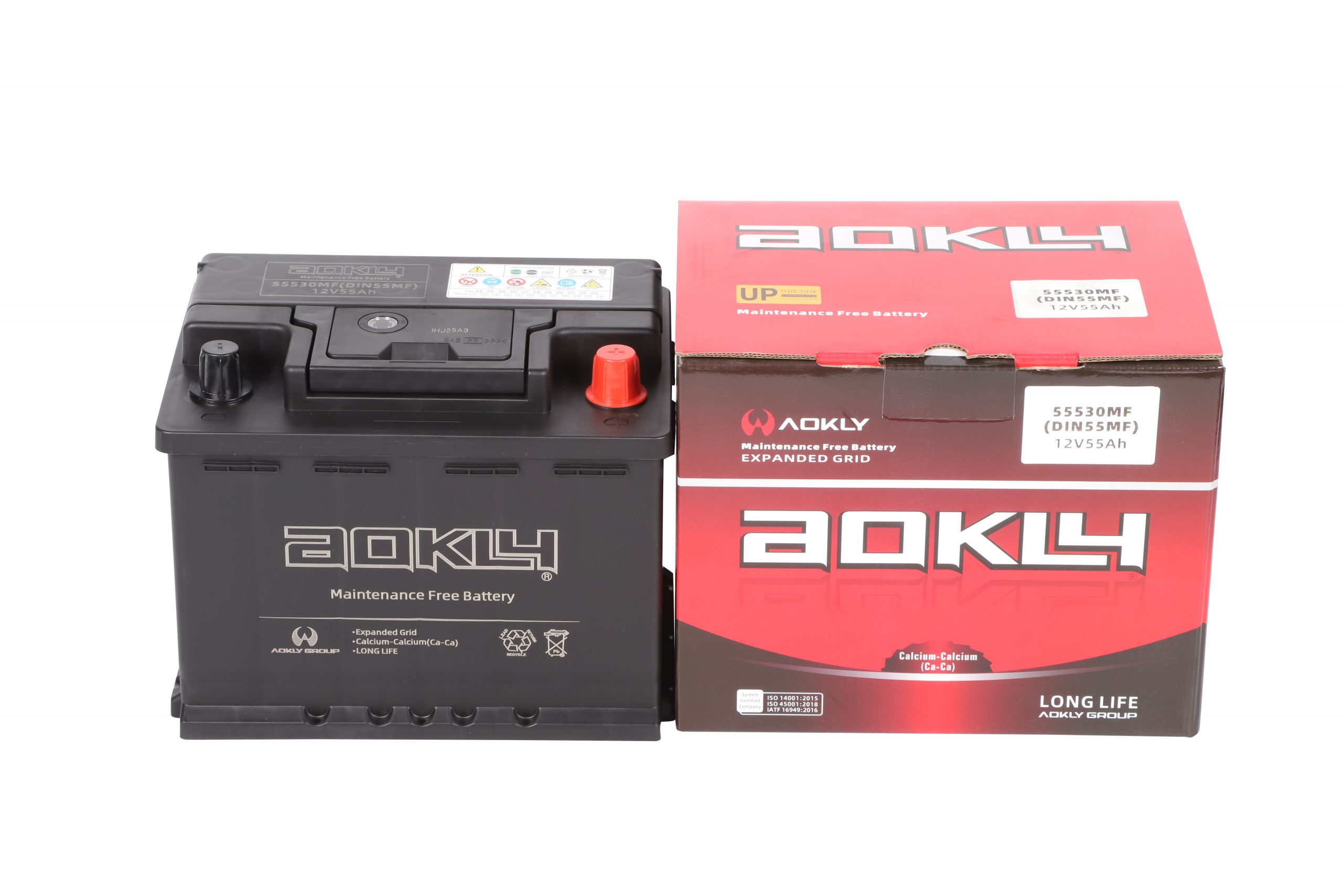

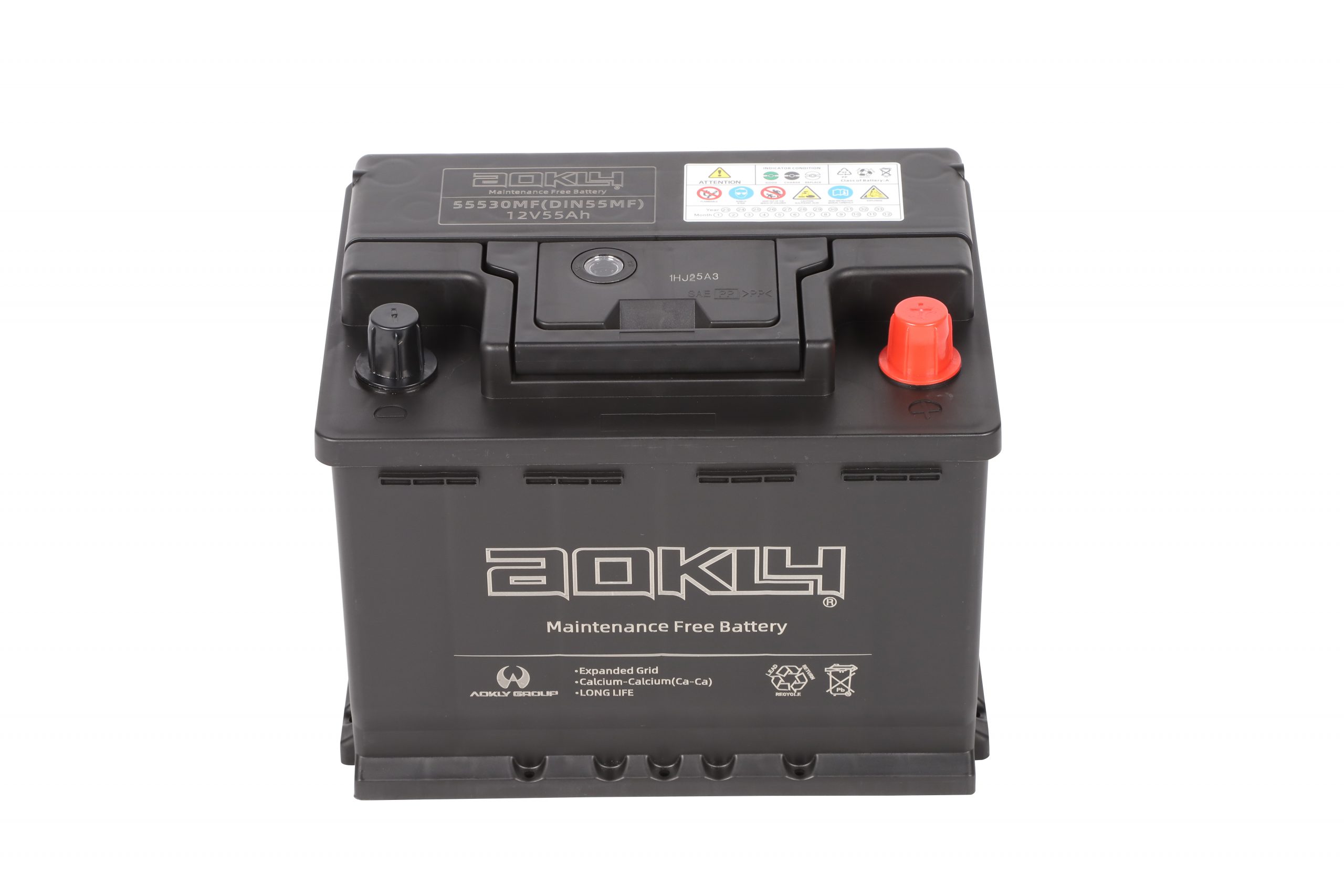

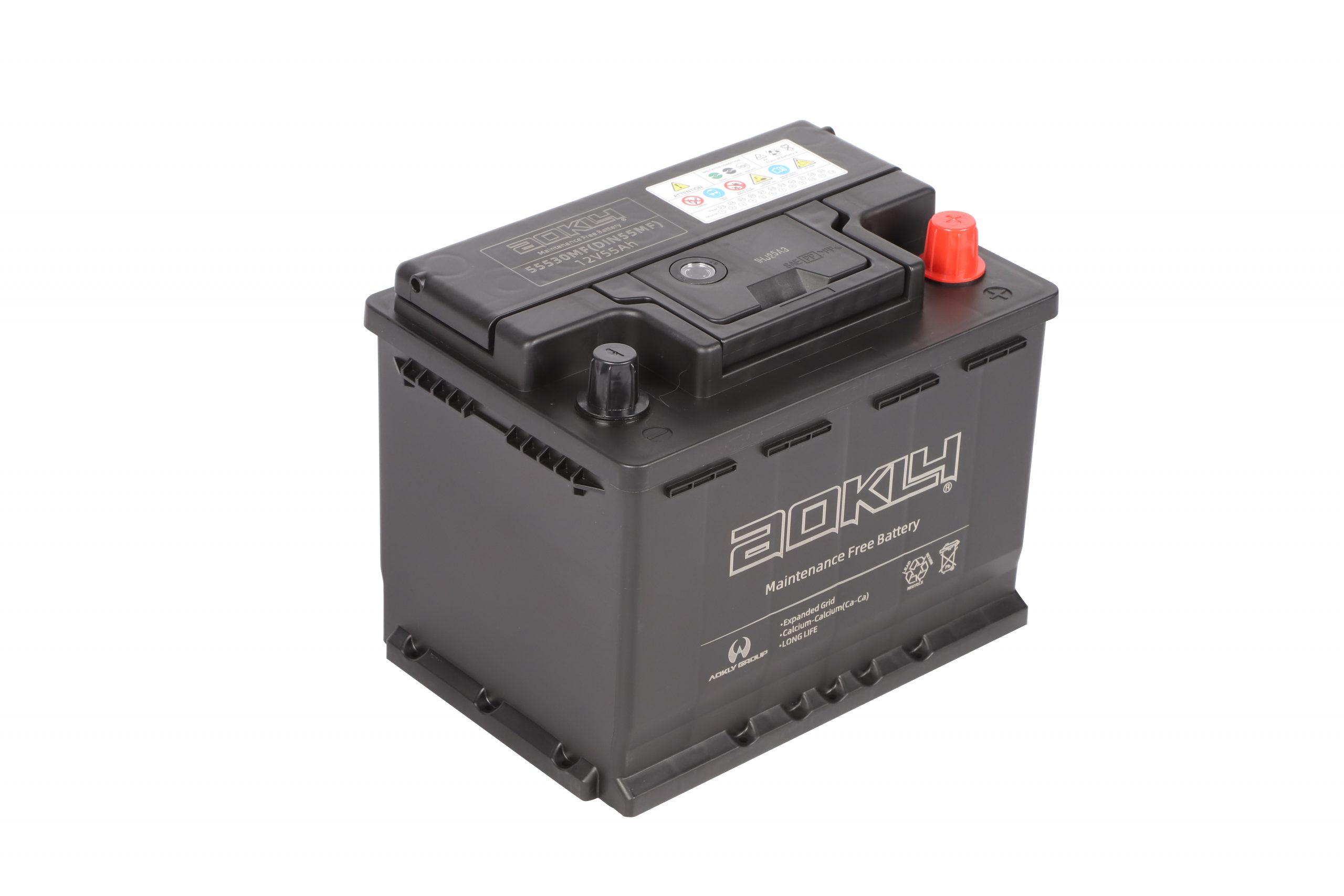

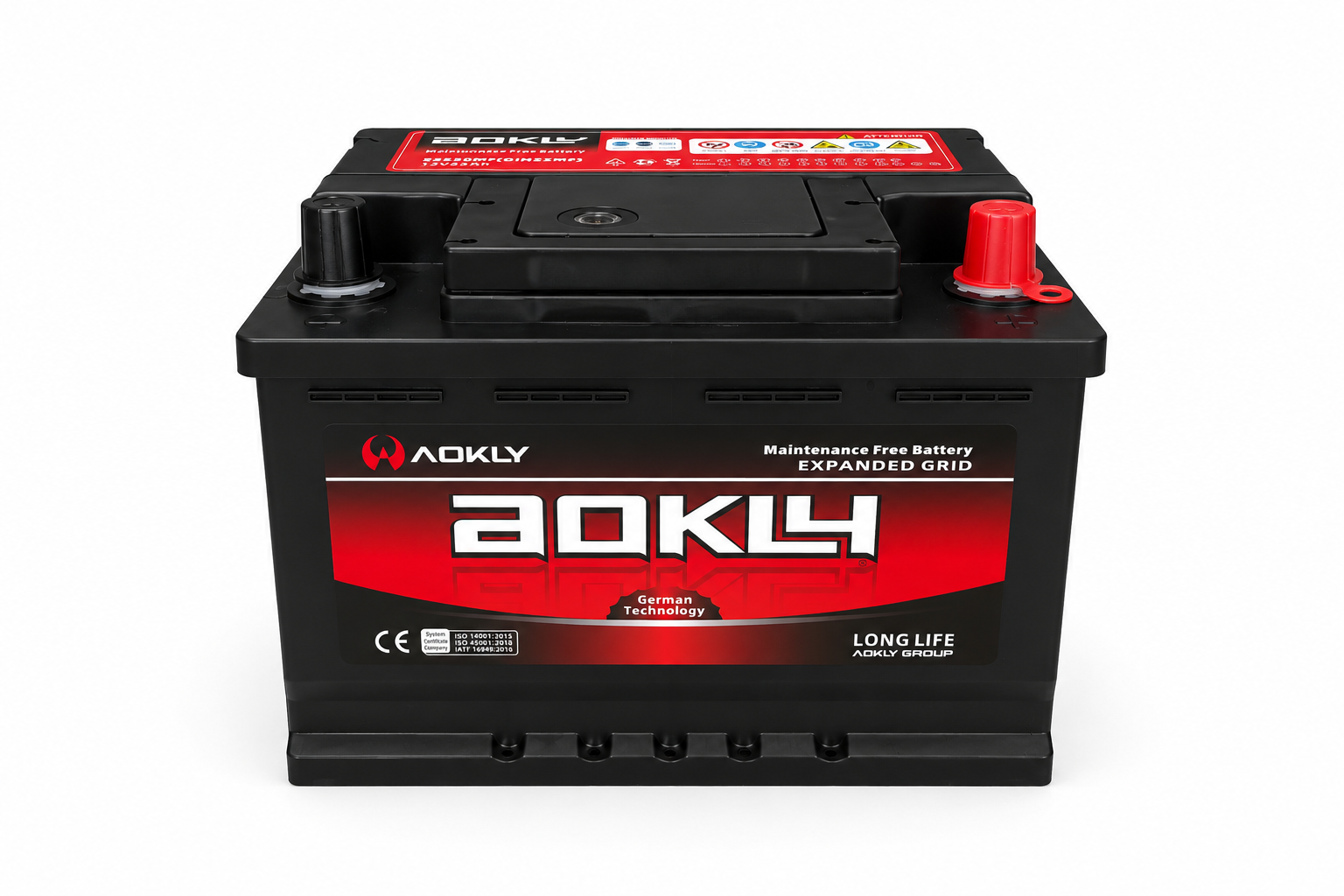

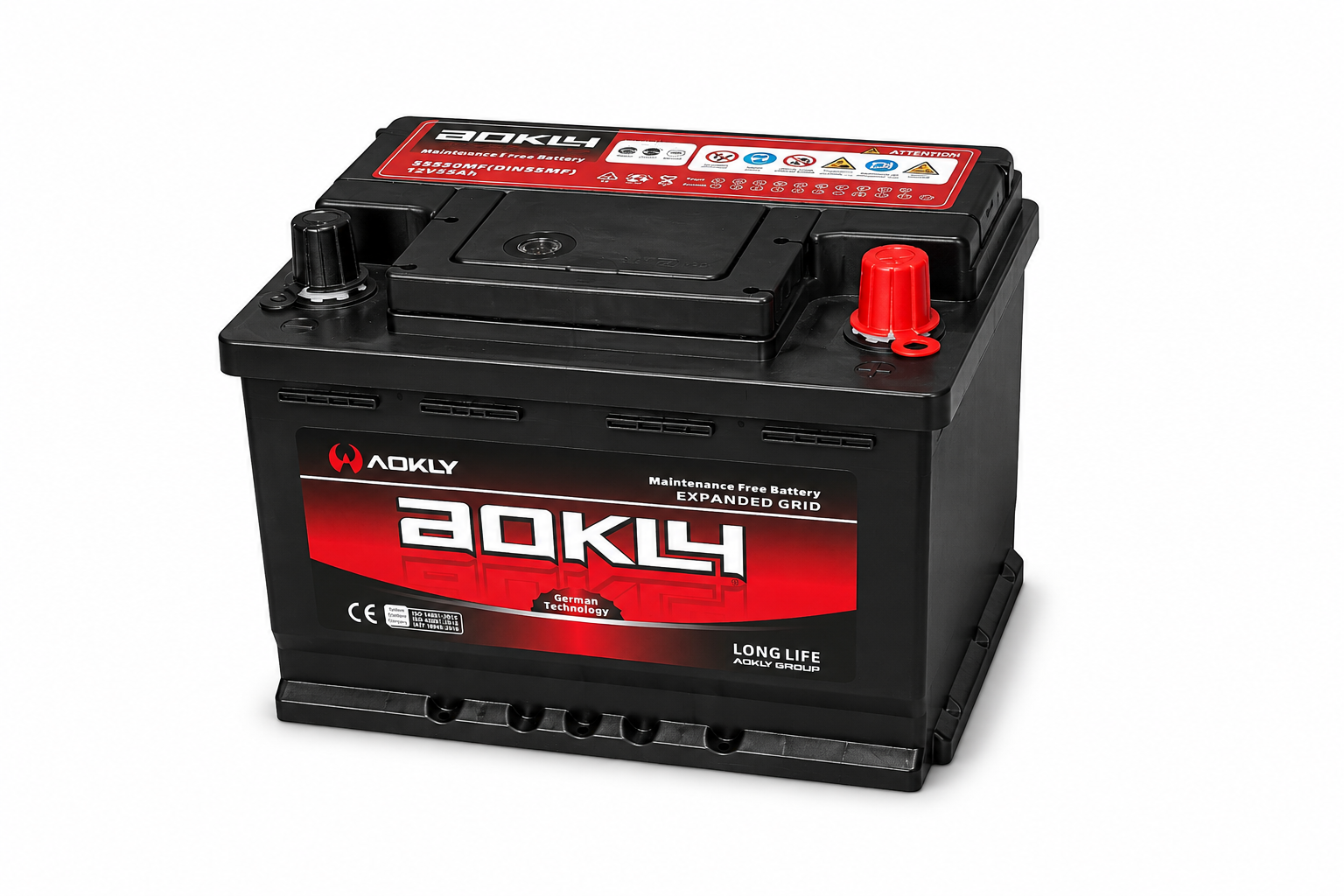

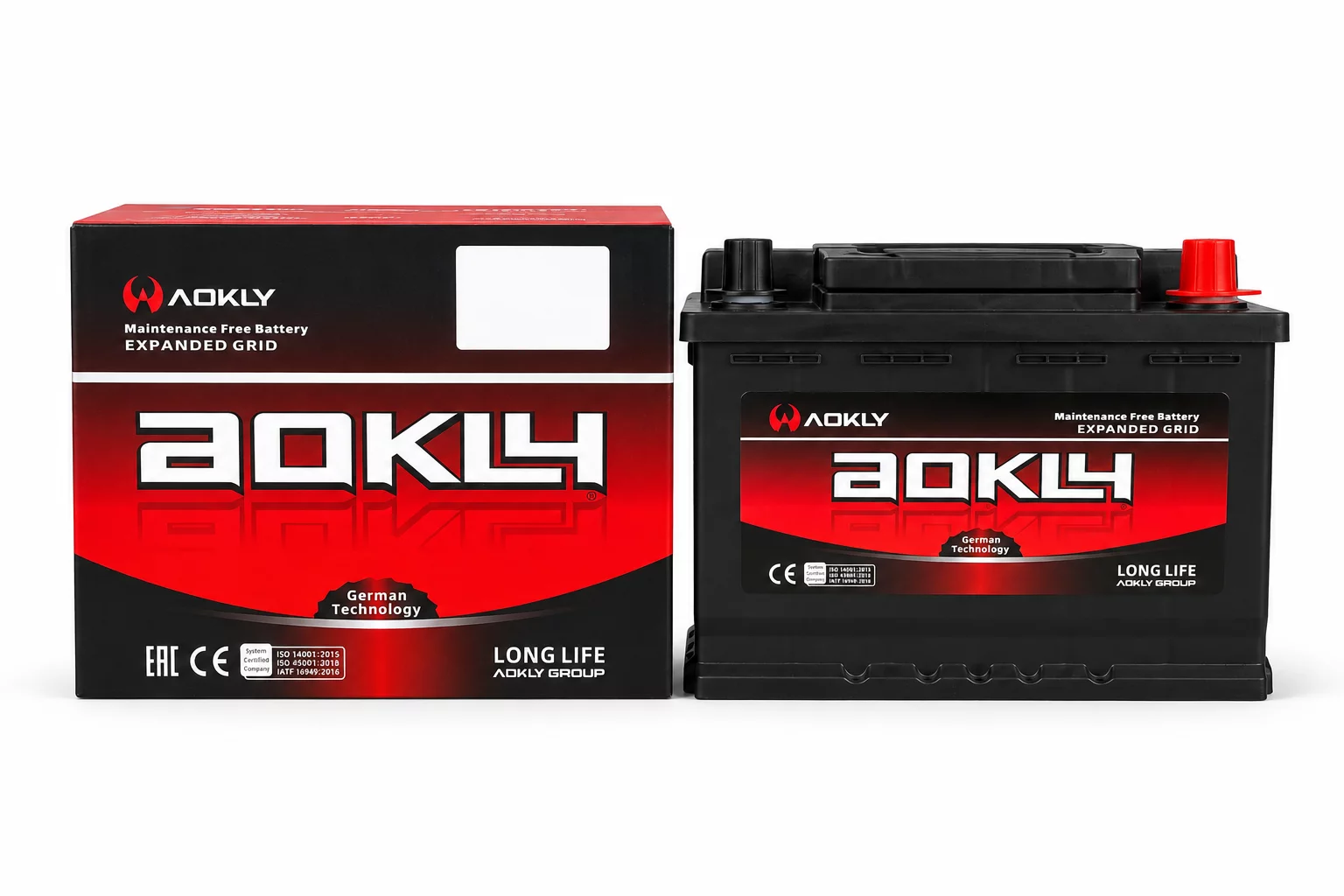

DIN55 12V 55Ah

DIN55 12V 55Ah

Main Features:

Maintenance-free, no water topping up needed.
Sturdy PP housing & lead-calcium alloy plates.
Good acid & vibration resistance, low water loss, high CCA.
Dual charging modes: ≤0.1C constant current / 14.2–14.6V constant voltage.
Store in cool dry shade; recharge if stored over 6 months before delivery.
Fits cars with 14.2–14.4V charging systems.
Easy maintenance: Keep clean with tight connections.

MOQ: 300 PCS

Product Details

AS Standard Battery(SMF)
No.	Type NO.	Capacity	Dimension(mm)	GW	CCA	RC	Lay-out	Terminal	Qty/Pallet	Hold-Down
No.	Type NO.	(20Hr)	L×W×H×TH	(KGS)	(SAE)	( MINS)	Lay-out	Terminal	Qty/Pallet	Hold-Down
1	NS40Z	36	195×127×200×220	9.9	420	55	1	A	224	一
2	NS40ZL	36	195×127×200×220	9.9	420	55	0	A	224	一
3	NS40ZS	36	195×127×200×220	9.9	420	55	1	B	224	一
4	NS40ZLS	36	195×127×200×220	9.9	420	55	0	B	224	一
5	NS60	45	240×129×199×220	11.9	530	71	1	A	175	一
6	NS60L	45	240×129×199×220	11.9	530	71	0	A	175	一
7	NS60(S)	45	240×129×199×220	11.9	530	71	1	B	175	一
8	NS60L(S)	45	240×129×199×220	11.9	530	71	0	B	175	一
9	NS50P	55	234×172×183×203	14.1	600	87	1	B	147	B1
10	NS50PL	55	234×172×183×203	14.1	600	87	0	B	147	B1
11	N50EF	55	228×172×183×203	14.1	600	87	1	B	147	B1
12	N51EB	55	228×172×183×203	14.1	600	87	0	B	147	B1
13	55D23R	60	230×173×200×220	14.8	600	87	1	B	147	B1
14	55D23L	60	230×173×200×220	14.8	600	87	0	B	147	B1
15	N50Z	60	258×173×200×220	16.6	650	96	1	B	126	B1
16	N50ZL	60	258×173×200×220	16.6	650	96	0	B	126	B1
17	NS70	65	258×173×200×220	17.0	680	104	1	B	126	B1
18	NS70L	65	258×173×200×220	17.0	680	104	0	B	126	B1
19	N70Z	75	304×173×200×220	21.0	860	140	1	B	119	B1
20	N70ZL	75	304×173×200×220	21.0	860	140	0	B	119	B1
21	N100	100	402×172×203×223	25.8	1000	180	1	B	84	一
22	N100L	100	402×172×203×223	25.8	1000	180	0	B	84	一
23	NS120	110	402×172×203×223	27.0	1100	196	1	B	84	一
24	NS120L	110	402×172×203×223	27.0	1100	196	0	B	84	一
25	DIN36	36	206×174×174×174	10.9	400	54	0	A	192	一
26	DIN44	44	206×174×189×189	12.2	500	70	0	B	168	一
27	DIN55	55	243×174×188×188	14.5	600	87	0	B	168	B3
28	DIN66	66	276×174×175×175	17.0	720	114	0	B	144	B3
29	DIN77	77	276×174×190×190	17.3	720	114	0	B	120	B3
30	DIN88	88	352×174×192×192	21.0	780	132	0	B	96	B3
31	31-800	96	326×172×219×240	24.8	860	180	1	B	84	一
32	31-800	96	326×172×219×240	24.8	860	180	1	D	84	一
33	78-675	63	269×178×182×182	15.9	600	96	1	D	144	B1
34	N120MF	120	509×180×195×220	31.3	810	218	3	B	63	一
35	N150MF	150	517×221×195×221	38.2	940	280	3	B	56	一
36	N200MF	200	512×251×215×236	47.5	1100	365	3	B	42	一
37	62034MF	120	509×180×195×220	31.3	810	218	3	B	63	一
38	65012MF	150	517×221×195×221	38.2	940	280	3	B	56	一
39	70027MF	170	512×251×215×236	47.5	1100	365	3	B	42	一
