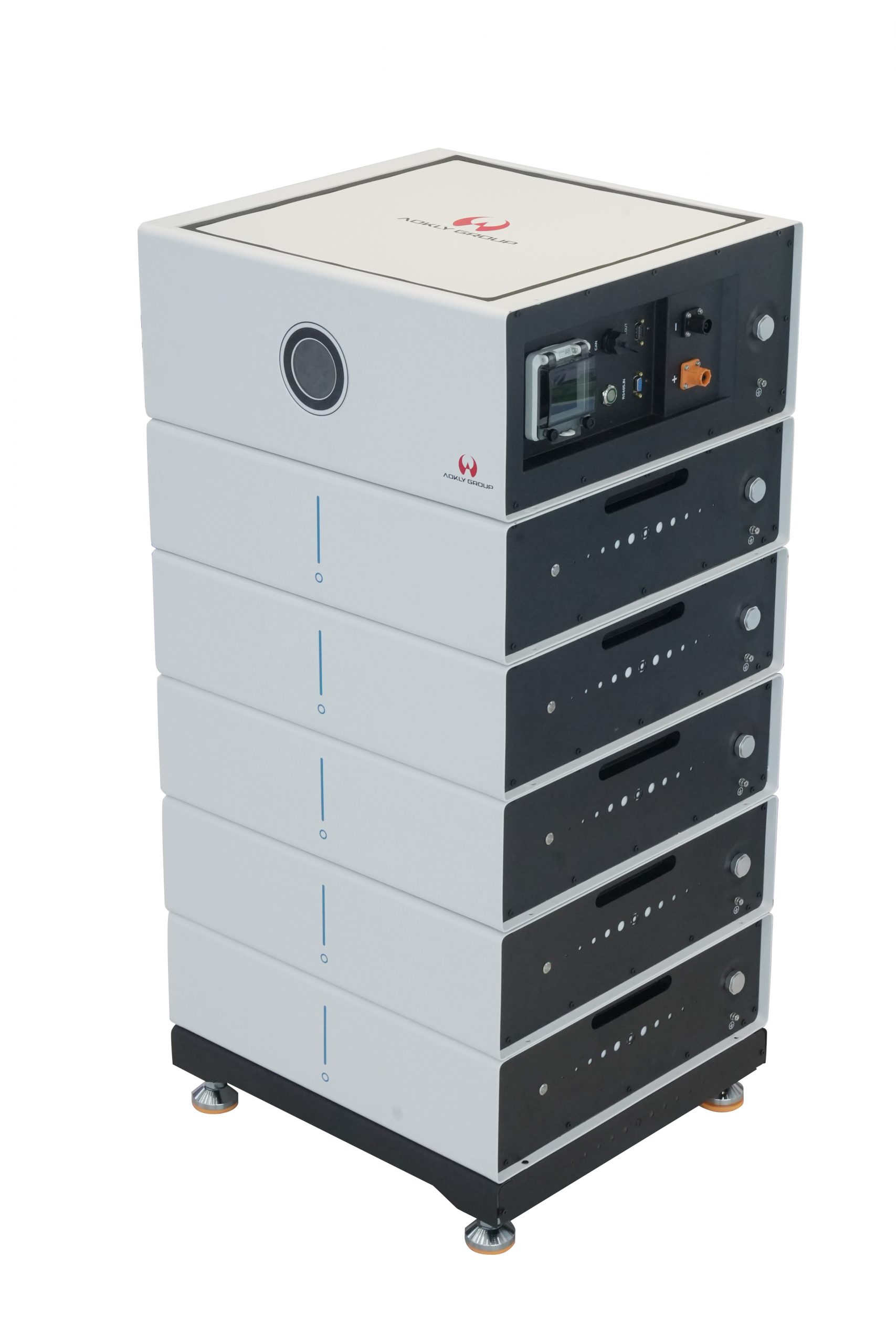

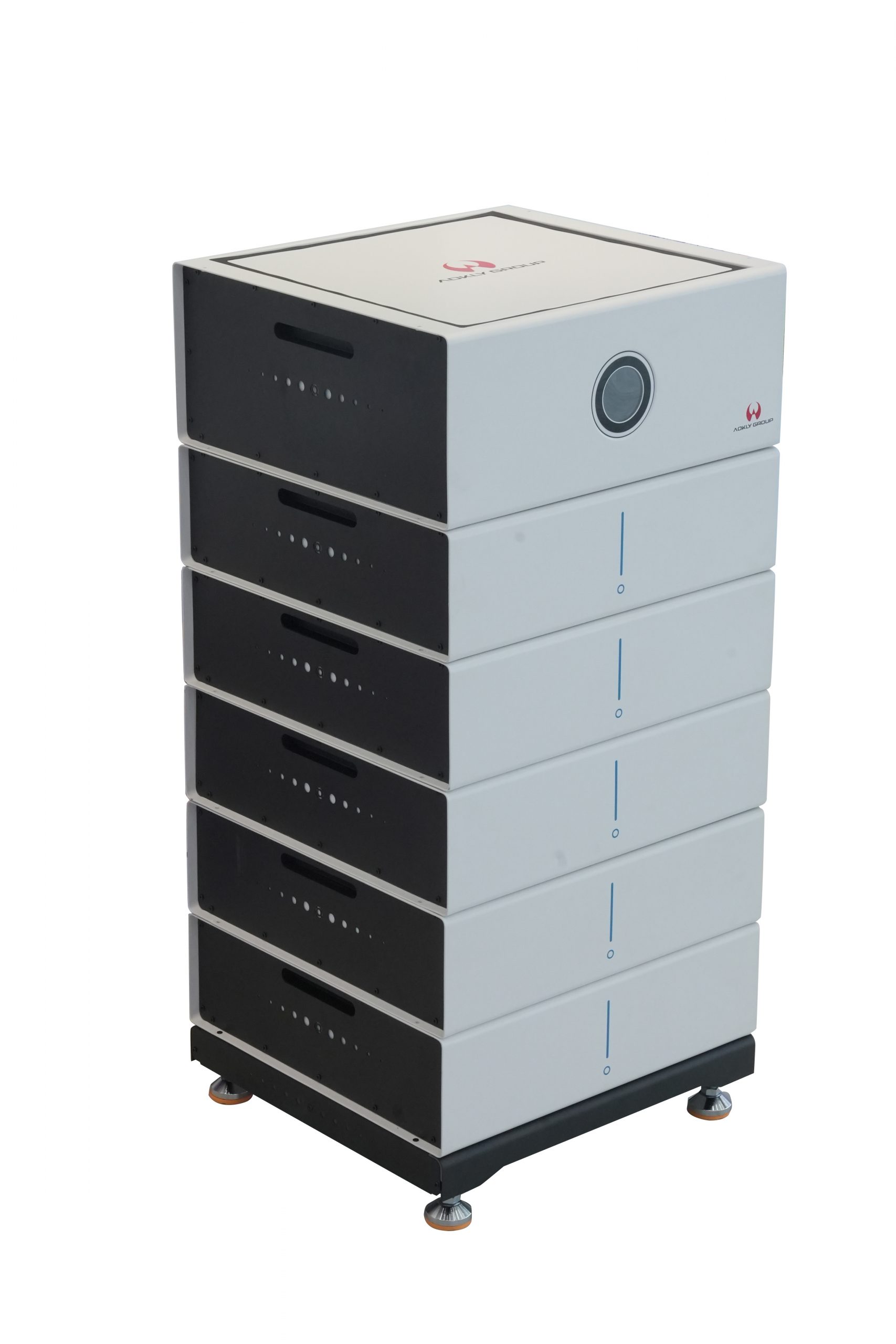

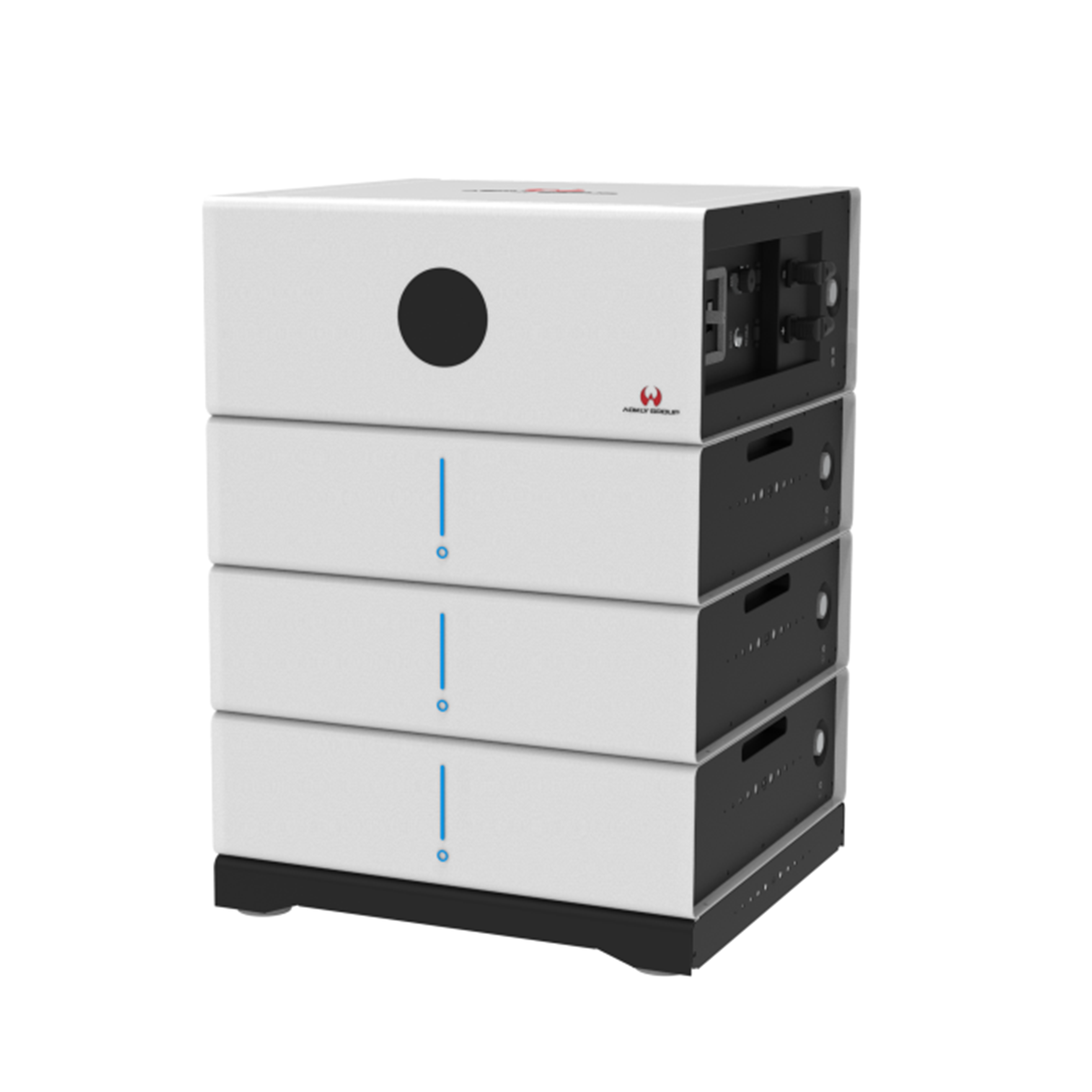

ALFP-204100 204.8 V 100Ah

ALFP-204100

Features

Modular stackable：Flexible capacity expansion, multi‑tower parallel supported
High‑voltage design：Lower current & cable loss, higher system efficiency
Plug‑and‑play：Fast installation, fewer external cables
Smart BMS：CAN/RS485, compatible with mainstream 3‑phase HV inverters

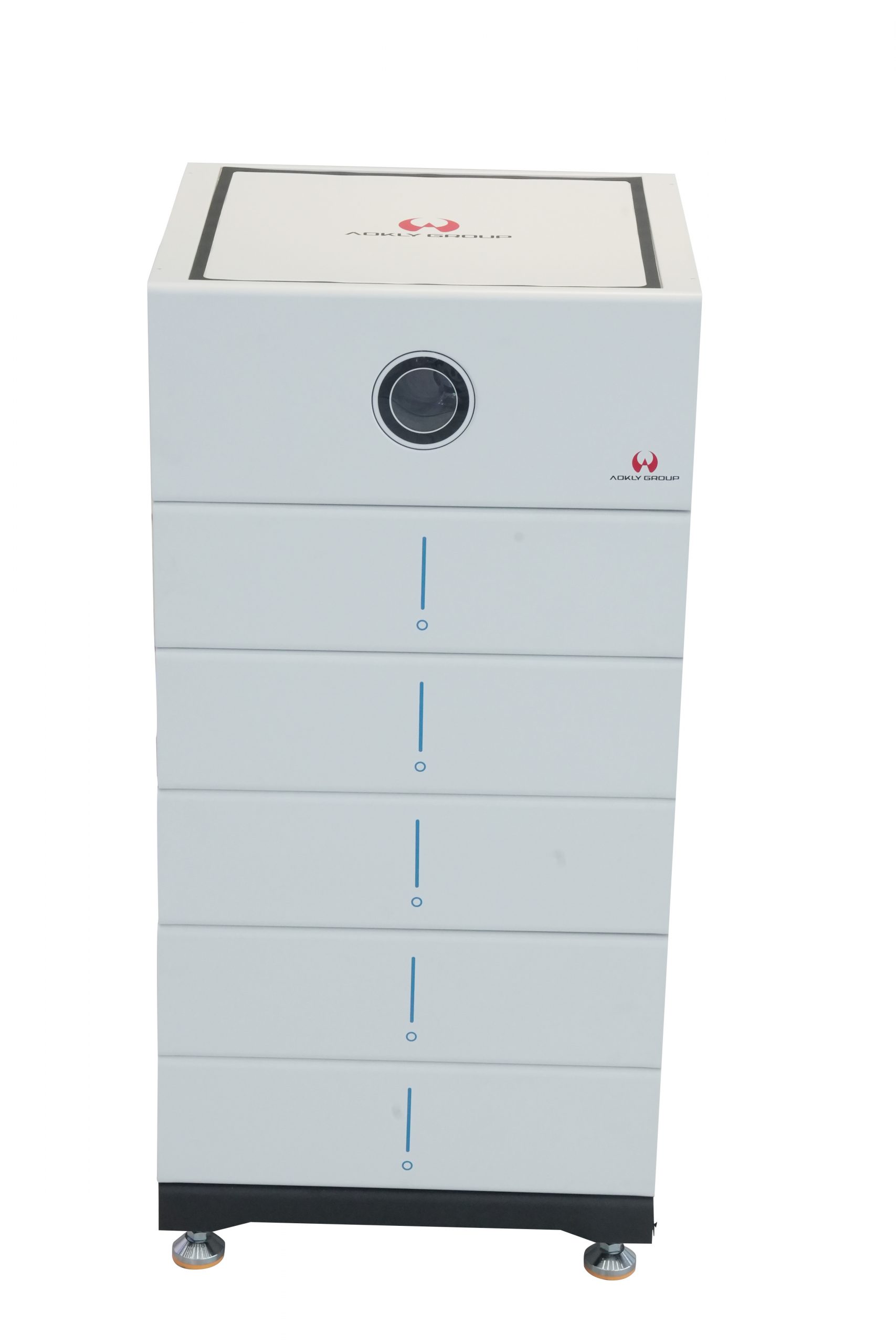

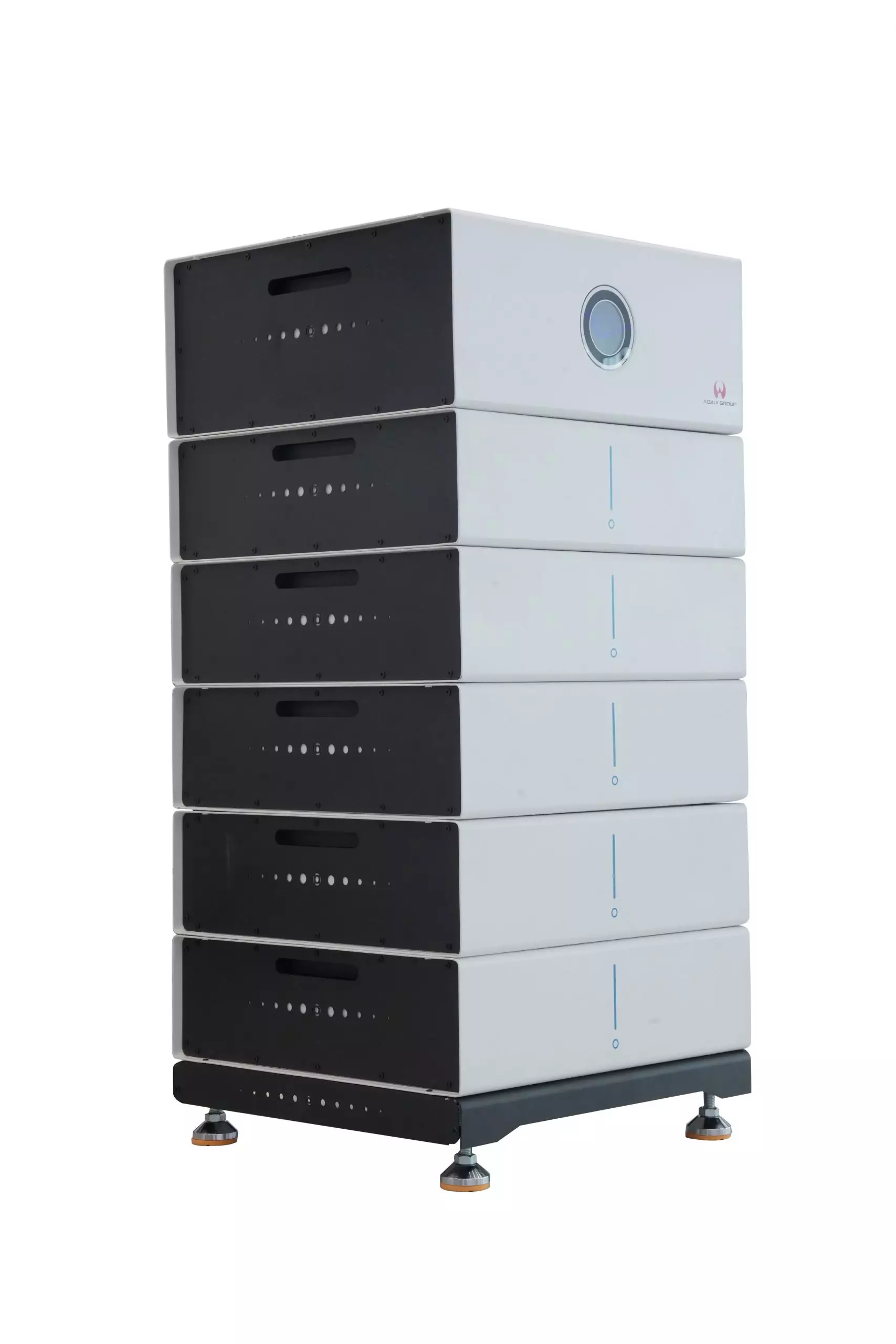

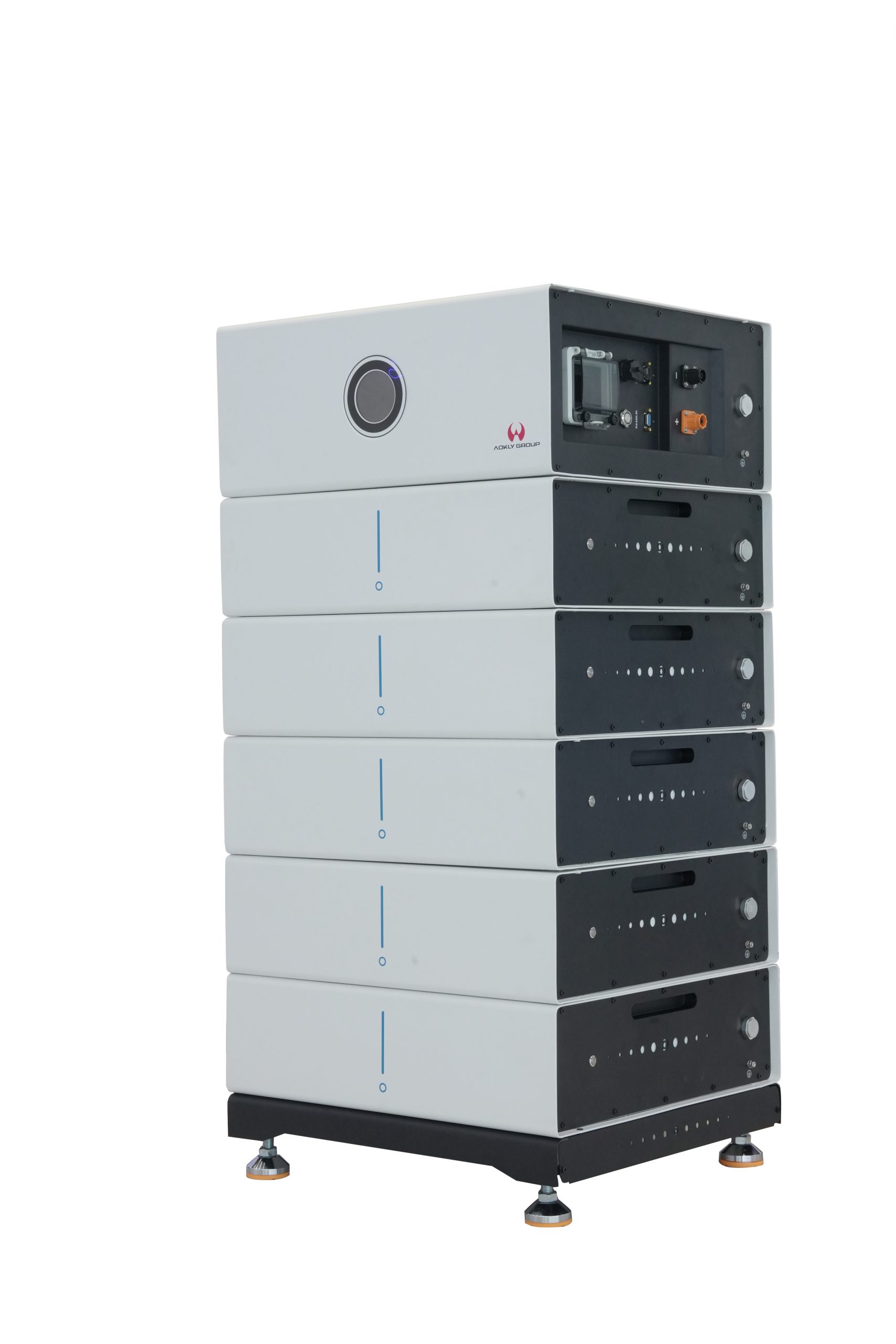

Vertical tower structure：Space‑saving for indoor installation

Applications

Villa residential solar storage
C&I energy storage: peak‑valley arbitrage, cost saving, UPS backup
Off‑grid & micro‑grid: remote areas, islands, mines
Medium‑large EPC solar‑storage projects
Critical equipment emergency power supply

MOQ: 20 PCS

Product Details

Item	ALFP‑204100	ALFP‑307100	ALFP‑384100	ALFP‑410100	ALFP‑512100
Model	ALFP‑204100	ALFP‑307100	ALFP‑384100	ALFP‑410100	ALFP‑512100
Rated Voltage	204.8V	307.2V	384V	409.6V	512V
Rated Capacity	100Ah	100Ah	100Ah	100Ah	100Ah
Rated Energy	20480Wh	30720Wh	38400Wh	40960Wh	51200Wh
Dimensions(mm)	552.5515772	552.55151252	5501415515	5501415515	552.51732515
Weight	208.1kg	356kg	395kg	405kg	520kg
Recommended Charging Voltage	233.6V	358.4V	438V	460.8V	576V
Recommended Charging Current	50A	50A	50A	50A	100A
Max. Charging Current	100A	100A	100A	100A	100A
Recommended Discharging Current	50A	50A	50A	50A	50A
Max. Discharging Current	100A	100A	100A	100A	100A
Discharge Cut‑off Voltage	172.8V	259.2V	312V	345.6V	416V
Combination Method	64S1P	96S1P	120S1P	128S1P	160S1P
