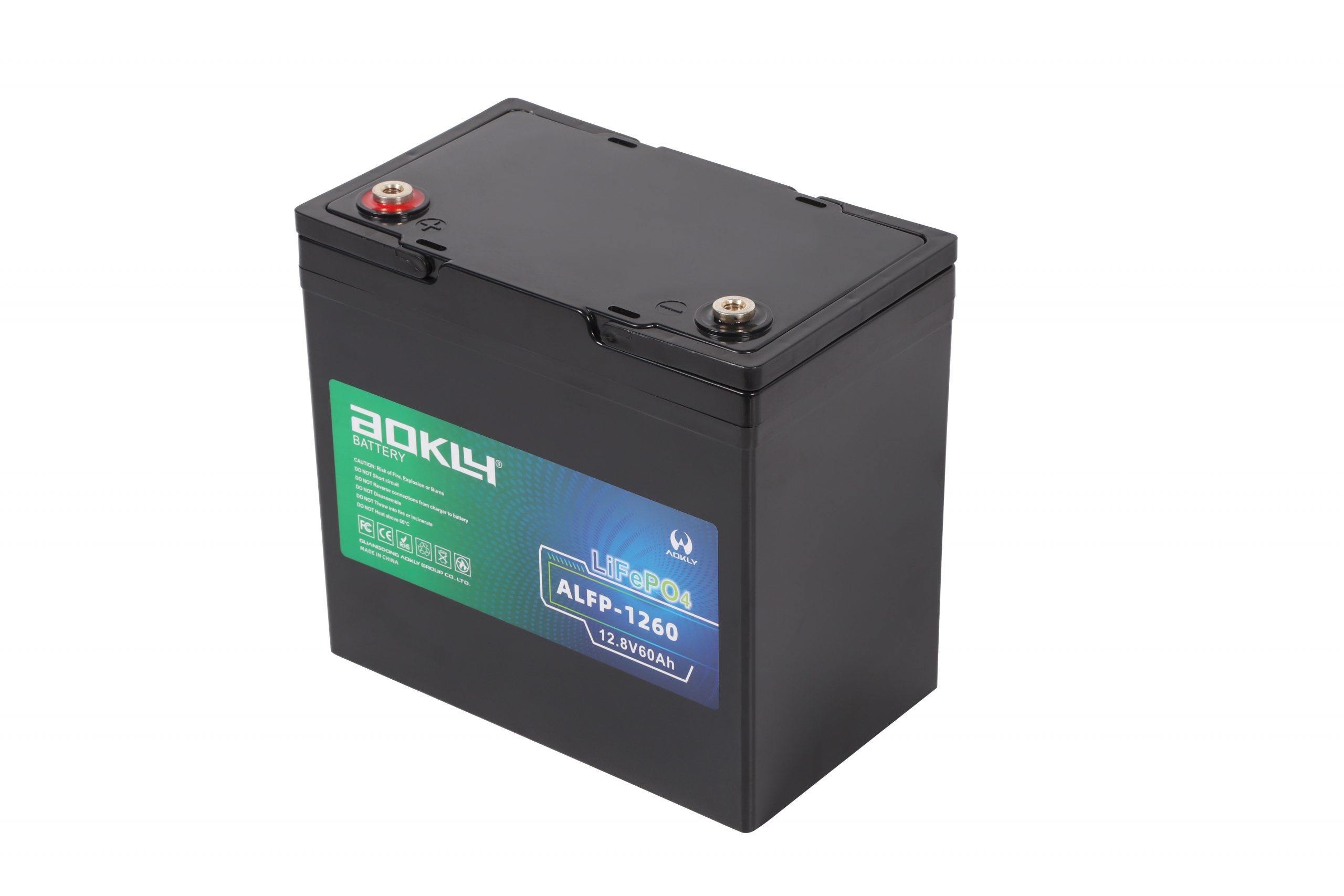

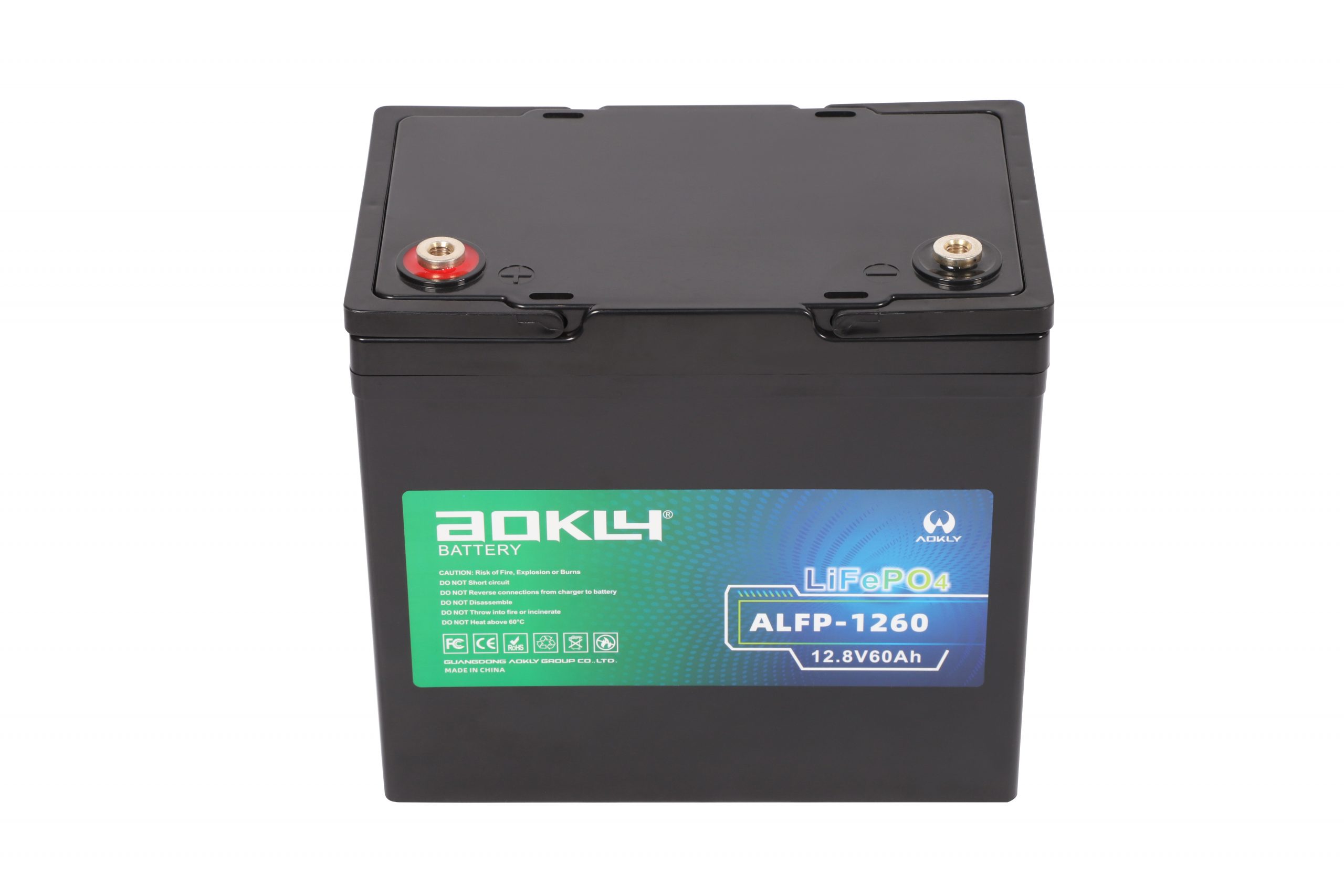

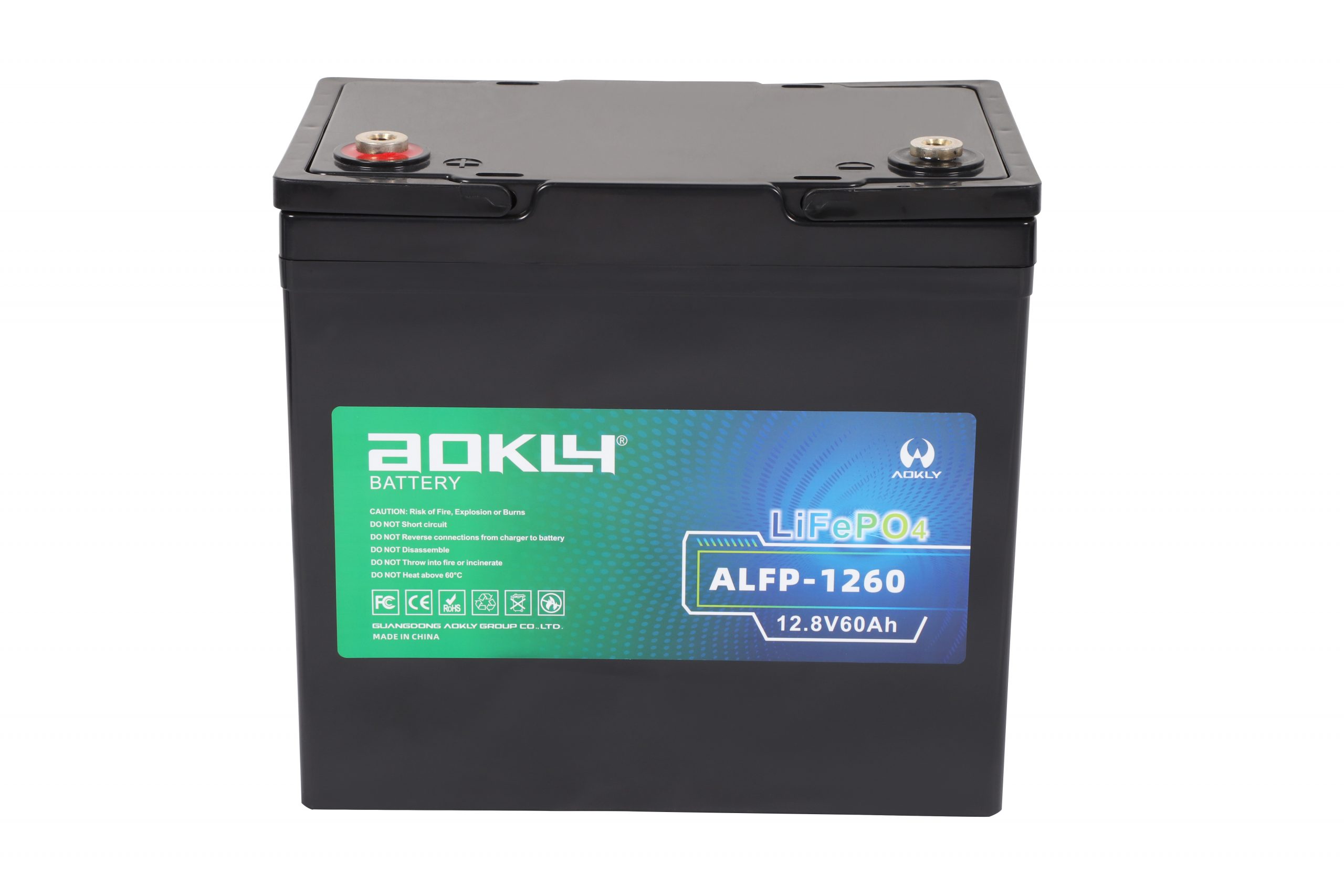

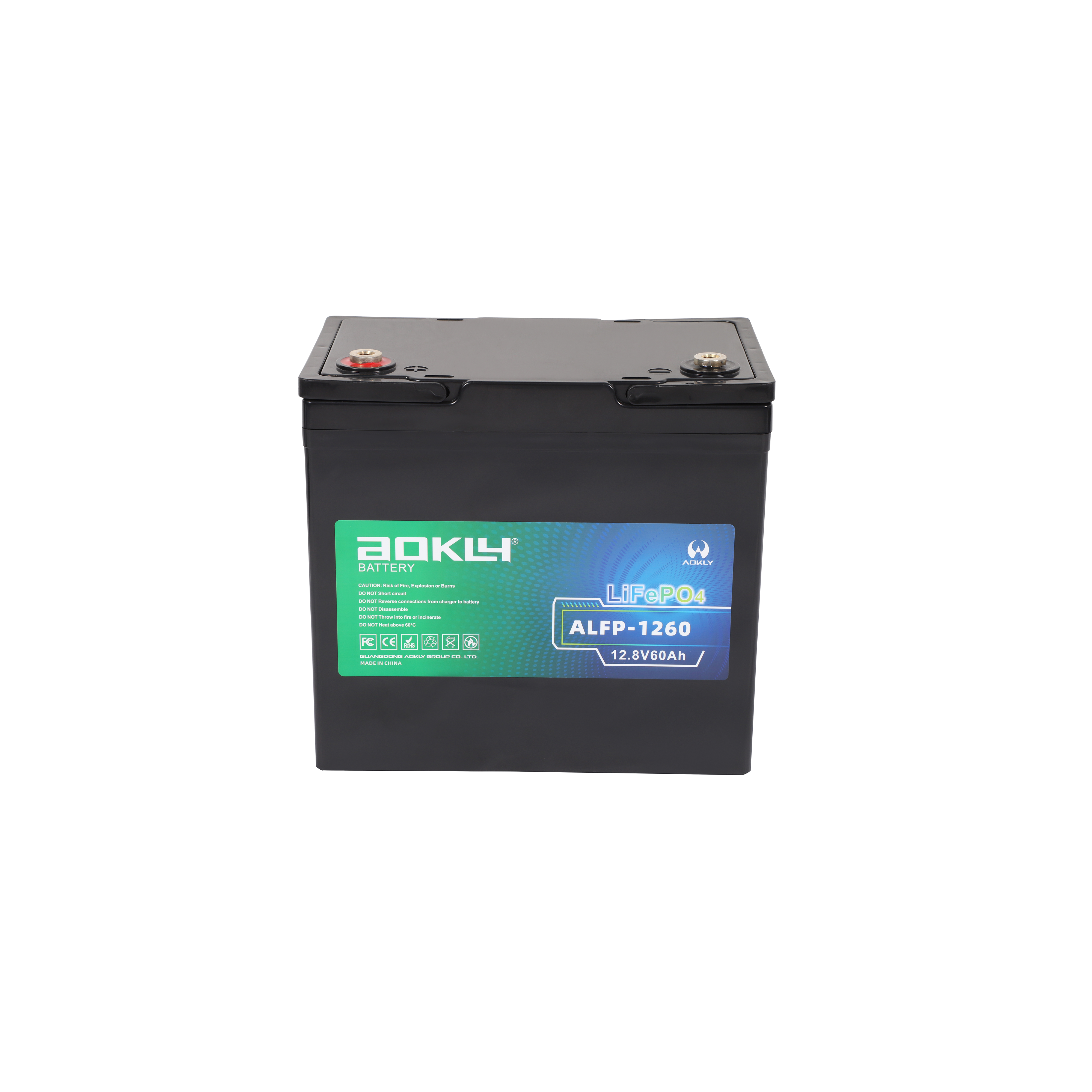

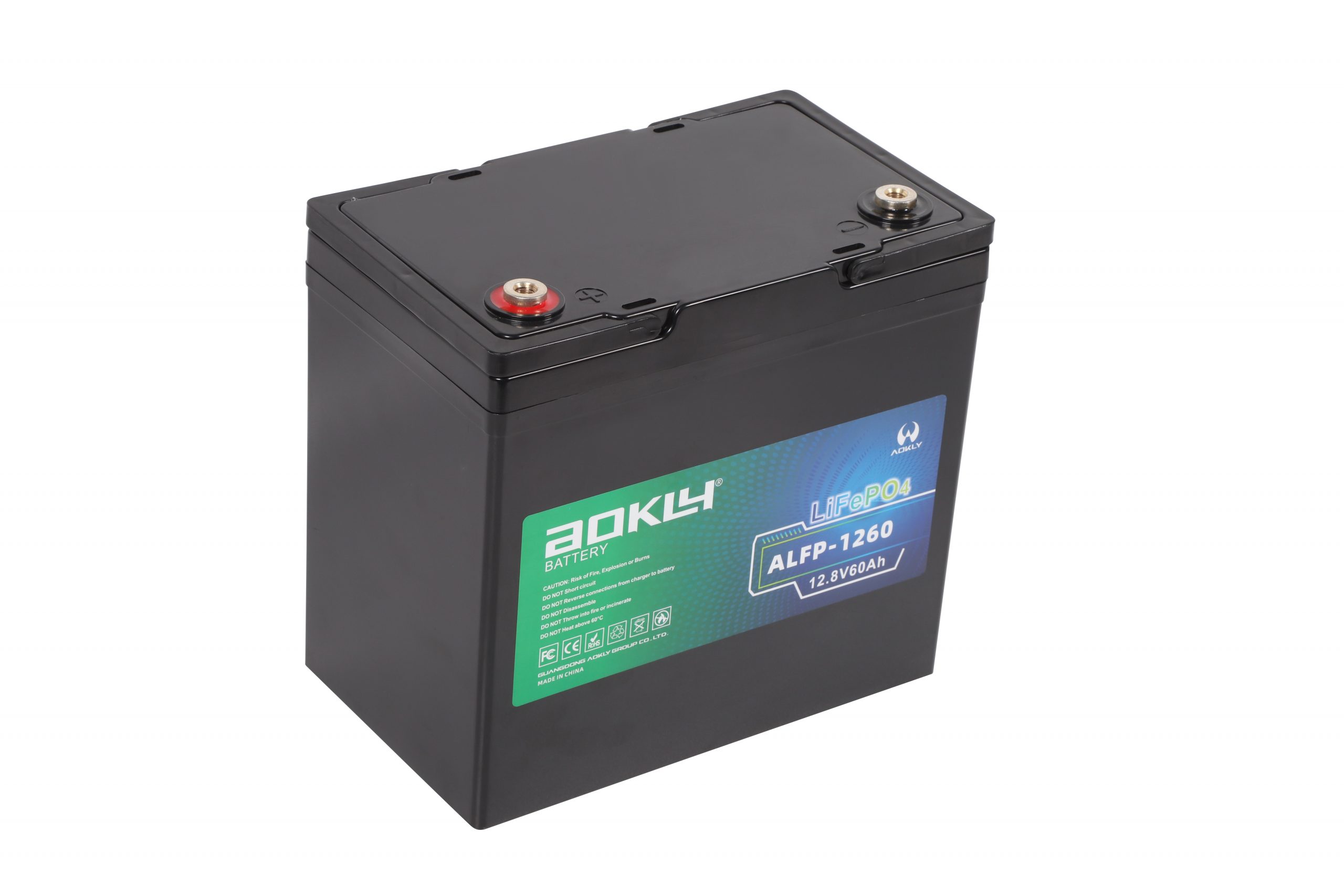

ALFP-1260 12V 60Ah

ALFP-1260

Features:
  1. Longer Cycle Life:Offer up to 10 times longer cycle life and five times longer float/calendar life than lead acid battery, helping it minimize replacement cost and reduce total cost of ownership.
  2. Lighter Weight:About 40% of the weight of a comparable lead acid battery. A’drop in’ replacement for lead acid batteries.
  3. Higher Power:Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
  4. Wider Temperature Range:-20~60℃
  5. Superior Safety:Lithium Iron Phosphate chemistry eliminates, the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Applications:
  1. Solar/Wind energy Storage
  2. Golf cart
  3. Back-up Power for UPS/EPS
  4. Tools
MOQ: 20 PCS

Product Details

Specification12.8V 6Ah12.8V 100Ah12.8V 300Ah25.6V 100Ah25.6V 200Ah51.2V 100Ah
Nominal Voltage12.8V12.8V12.8V25.6V25.6V51.2V
Nominal Capacity6Ah100Ah300Ah100Ah200Ah100Ah
Nominal Energy76.8Wh1280Wh3840Wh2560Wh5120Wh5120Wh
Dimensions (mm.)151*65*95329*172*219522*267*220522*240*218522*240*218522*240*218
Weight (kg.)1.0KG10.5KG33KG20KG37.9KG36.5KG
Charge Current1.2A20A60A20A40A20A
Charge Voltage14.2V14.2V14.2V29.2V29.2V57.6V
Max. Pulse Current8A 35S120A 35S220A 35S120A 35S220A 35S120A 35S
Discharge Current3A50A150A50A100A50A
Discharge Cut-off Voltage10.0V10.0V10.0V20.0V20.0V43.2V
Cycle Life≥3500 cycles @80%DOD @35℃≥3500 cycles @80%DOD @35℃≥3500 cycles @80%DOD @35℃≥3500 cycles @80%DOD @35℃≥3500 cycles @80%DOD @35℃≥3500 cycles @80%DOD @35℃
Months Self Discharge1%/month1%/month1%/month1%/month1%/month1%/month
IP ClassIP30IP30IP30IP30IP30IP30
Plastic CaseABSABSABSABSABSABS
Efficiency of Charge≥97%≥97%≥97%≥97%≥97%≥97%
Efficiency of Discharge≥98%≥98%≥98%≥98%≥98%≥98%
Charge Temperature0℃ ~ 55℃0℃ ~ 55℃0℃ ~ 55℃0℃ ~ 55℃0℃ ~ 55℃0℃ ~ 55℃
Discharge Temperature-20℃ ~ 60℃-20℃ ~ 60℃-20℃ ~ 60℃-20℃ ~ 60℃-20℃ ~ 60℃-20℃ ~ 60℃
Storage Temperature0℃ ~ 40℃0℃ ~ 40℃0℃ ~ 40℃0℃ ~ 40℃0℃ ~ 40℃0℃ ~ 40℃
ProtocolBluetoothBluetoothBluetoothBluetoothBluetoothBluetooth
Humidity0~95% (no condensation)0~95% (no condensation)0~95% (no condensation)0~95% (no condensation)0~95% (no condensation)0~95% (no condensation)
Efficiency95.00%95.00%95.00%95.00%95.00%95.00%
CertificateCE, RoHS, REACH, FCC, UN38.3, MSDSCE, RoHS, REACH, FCC, UN38.3, MSDSCE, RoHS, REACH, FCC, UN38.3, MSDSCE, RoHS, REACH, FCC, UN38.3, MSDSCE, RoHS, REACH, FCC, UN38.3, MSDSCE, RoHS, REACH, FCC, UN38.3, MSDS
