PRODUCTS

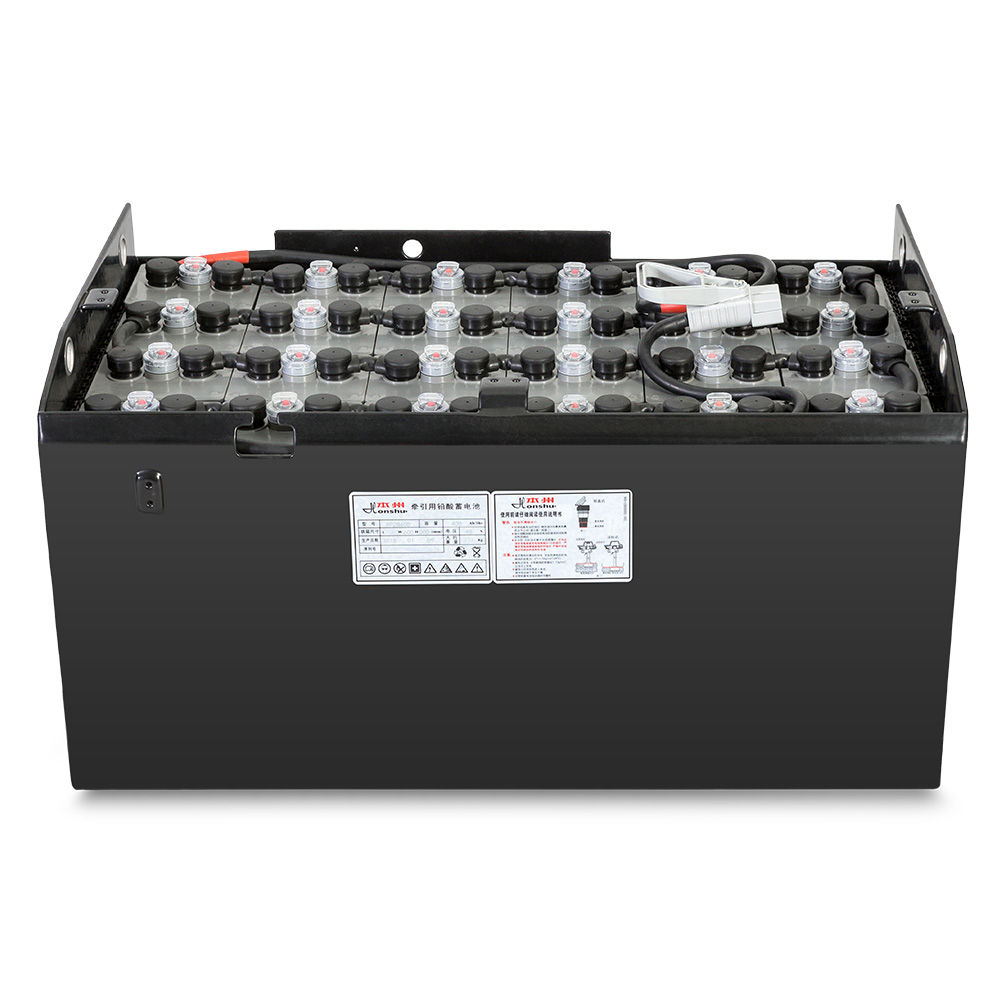

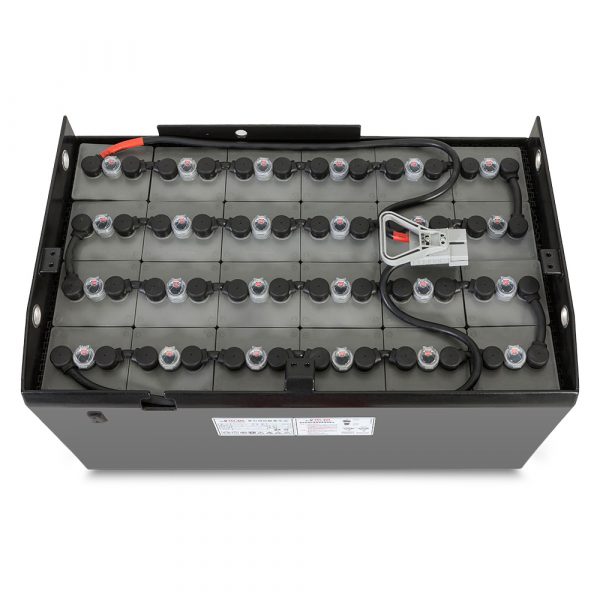

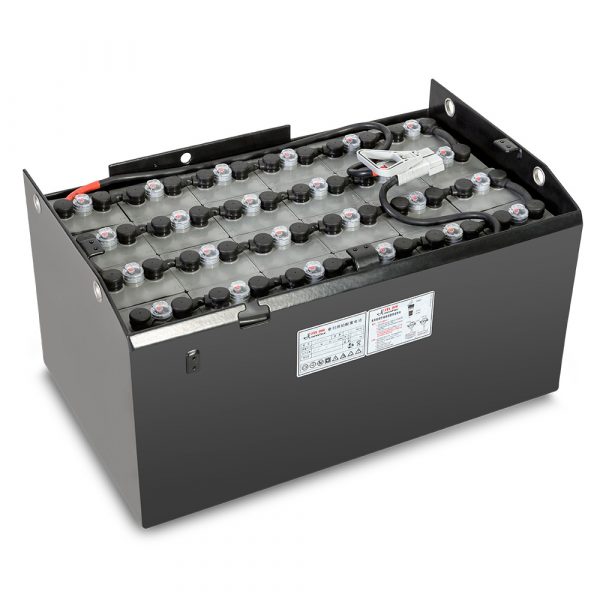

8PZB400 400Ah

8PZB400

Features：

Long design life,more than 1500 cycles at 80% DOD
Excellent cycle performance and recovery ability after deep discharge
Excellent low temperature performance
Reliable sealing structure
Special design to prevent the short circuit of battery
Automatic watering system and gas mixing system (optional)

Applications:

Traction lead-acid batteries for forklifts, tractors, buses and recreational equipment
Standard-compliant DC traction batteries for ports, warehouses and transport facilities
Complying with GB, BS, DIN & IEC60254-2

MOQ: 1 SET

Product Details

BS Standards
No.	Model	Normal Voltage (V)	Capacity At 5HR (Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	Weight With Acid (kg)
1	2PzB100	2	100	45	158	388	413	6.7
	3PzB150	2	150	61	158	388	413	9.5
	4PzB200	2	200	77	158	388	413	11.8
	5PzB250	2	250	93	158	388	413	14.5
	6PzB300	2	300	109	158	388	413	16.5
	7PzB350	2	350	125	158	388	413	19.5
	8PzB400	2	400	141	158	388	413	21.8
	9PzB450	2	450	157	158	388	413	24.5
	10PzB500	2	500	173	158	388	413	27.2
2	2PzB110	2	110	45	158	398	423	7
	3PzB165	2	165	61	158	398	423	9.8
	4PzB220	2	220	77	158	398	423	12.5
	5PzB275	2	275	93	158	398	423	15.1
	6PzB330	2	330	109	158	398	423	18
	7PzB385	2	385	125	158	398	423	20.5
	8PzB440	2	440	141	158	398	423	23.5
	9PzB495	2	495	157	158	398	423	26.5
	10PzB550	2	550	173	158	398	423	29.5
3	2PzB120	2	120	45	158	433	458	7.7
	3PzB180	2	180	61	158	433	458	10.8
	4PzB240	2	240	77	158	433	458	13.8
	5PzB300	2	300	93	158	433	458	17
	6PzB360	2	360	109	158	433	458	20.2
	7PzB365	2	365	125	158	433	458	23
	8PzB480	2	480	141	158	433	458	26.5
	9PzB540	2	540	157	158	433	458	30
	10PzB600	2	600	173	158	433	458	33
4	2PzB130	2	130	45	158	453	478	8
	3PzB195	2	195	61	158	453	478	11.3
	4PzB260	2	260	77	158	453	478	14.5
	5PzB325	2	325	93	158	453	478	18
	6PzB390	2	390	109	158	453	478	21
	7PzB455	2	455	125	158	453	478	24.5
	8PzB520	2	520	141	158	453	478	28
	9PzB585	2	585	157	158	453	478	31.2
	10PzB650	2	650	173	158	453	478	34.5
5	2PzB140	2	140	45	158	493	518	8.8
	3PzB210	2	210	61	158	493	518	12.5
	4PzB280	2	280	77	158	493	518	16
	5PzB350	2	350	93	158	493	518	19.5
	6PzB420	2	420	109	158	493	518	23
	7PzB490	2	490	125	158	493	518	26.7
	8PzB560	2	560	141	158	493	518	30.2
	9PzB630	2	630	157	158	493	518	34
	10PzB700	2	700	173	158	493	518	37.5
6	2PzB150	2	150	45	158	508	533	9.2
	3PzB225	2	225	61	158	508	533	13.5
	4PzB300	2	300	77	158	508	533	16.5
	5PzB375	2	375	93	158	508	533	20.5
	6PzB450	2	450	109	158	508	533	24.5
	7PzB525	2	525	125	158	508	533	28
	8PzB600	2	600	141	158	508	533	32
	9PzB675	2	675	157	158	508	533	36
	10PzB750	2	750	173	158	508	533	40
7	2PzB160	2	160	45	158	518	543	9.5
	3PzB240	2	240	61	158	518	543	13.5
	4PzB320	2	320	77	158	518	543	17.5
	5PzB400	2	400	93	158	518	543	21.5
	6PzB480	2	480	109	158	518	543	25.5
	7PzB560	2	560	125	158	518	543	29.5
	8PzB640	2	640	141	158	518	543	33.5
	9PzB720	2	720	157	158	518	543	37.5
	10PzB800	2	800	173	158	518	543	42
8	2PzB170	2	170	45	158	518	543	10
	3PzB255	2	255	61	158	518	543	14.2
	4PzB340	2	340	77	158	518	543	18.5
	5PzB425	2	425	93	158	518	543	22.5
	6PzB510	2	510	109	158	518	543	26.5
	7PzB595	2	595	125	158	518	543	30.5
	8PzB680	2	680	141	158	518	543	35
	9PzB765	2	765	157	158	518	543	39
	10PzB850	2	850	173	158	518	543	43.5
9	2PzB180	2	180	45	158	583	608	10.5
	3PzB270	2	270	61	158	583	608	14.8
	4PzB360	2	360	77	158	583	608	19.5
	5PzB450	2	450	93	158	583	608	24
	6PzB540	2	540	109	158	583	608	28.5
	7PzB630	2	630	125	158	583	608	33.5
	8PzB720	2	720	141	158	583	608	38
	9PzB810	2	810	157	158	583	608	42.5
	10PzB900*	2	900	173	158	583	608	47.5
10	2PzB190	2	190	45	158	603	628	11.2
	3PzB285	2	285	61	158	603	628	15.5
	4PzB380	2	380	77	158	603	628	20
	5PzB475	2	475	93	158	603	628	25.5
	6PzB570	2	570	109	158	603	628	30.5
	7PzB665	2	665	125	158	603	628	35
	8PzB760	2	760	141	158	603	628	40
	9PzB855	2	855	157	158	603	628	44.5
	10PzB950*	2	950	173	158	603	628	50
11	2PzB200	2	200	45	158	673	698	13
	3PzB300	2	300	61	158	673	698	17.2
	4PzB400	2	400	77	158	673	698	22.2
	5PzB500	2	500	93	158	673	698	27.2
	6PzB600	2	600	109	158	673	698	32.5
	7PzB700	2	700	125	158	673	698	38
	8PzB800	2	800	141	158	673	698	43.5
	9PzB900*	2	900	157	158	673	698	49
	10PzB1000*	2	1000	173	158	673	698	54
12	2PzB210	2	210	45	158	695	727	13.5
	3PzB315	2	315	61	158	695	727	19
	4PzB420	2	420	77	158	695	727	24.5
	5PzB525	2	525	93	158	695	727	30
	6PzB630	2	630	109	158	695	727	35.5
	7PzB735	2	735	125	158	695	727	41
	8PzB840	2	840	141	158	695	727	46.5
	9PzB945*	2	945	157	158	695	727	52
	10PzB1050*	2	1050	173	158	695	727	58
