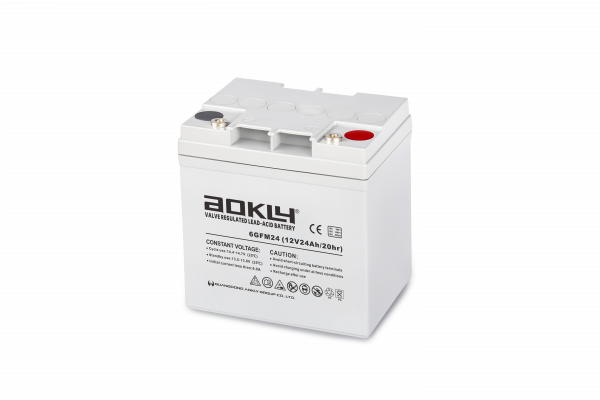

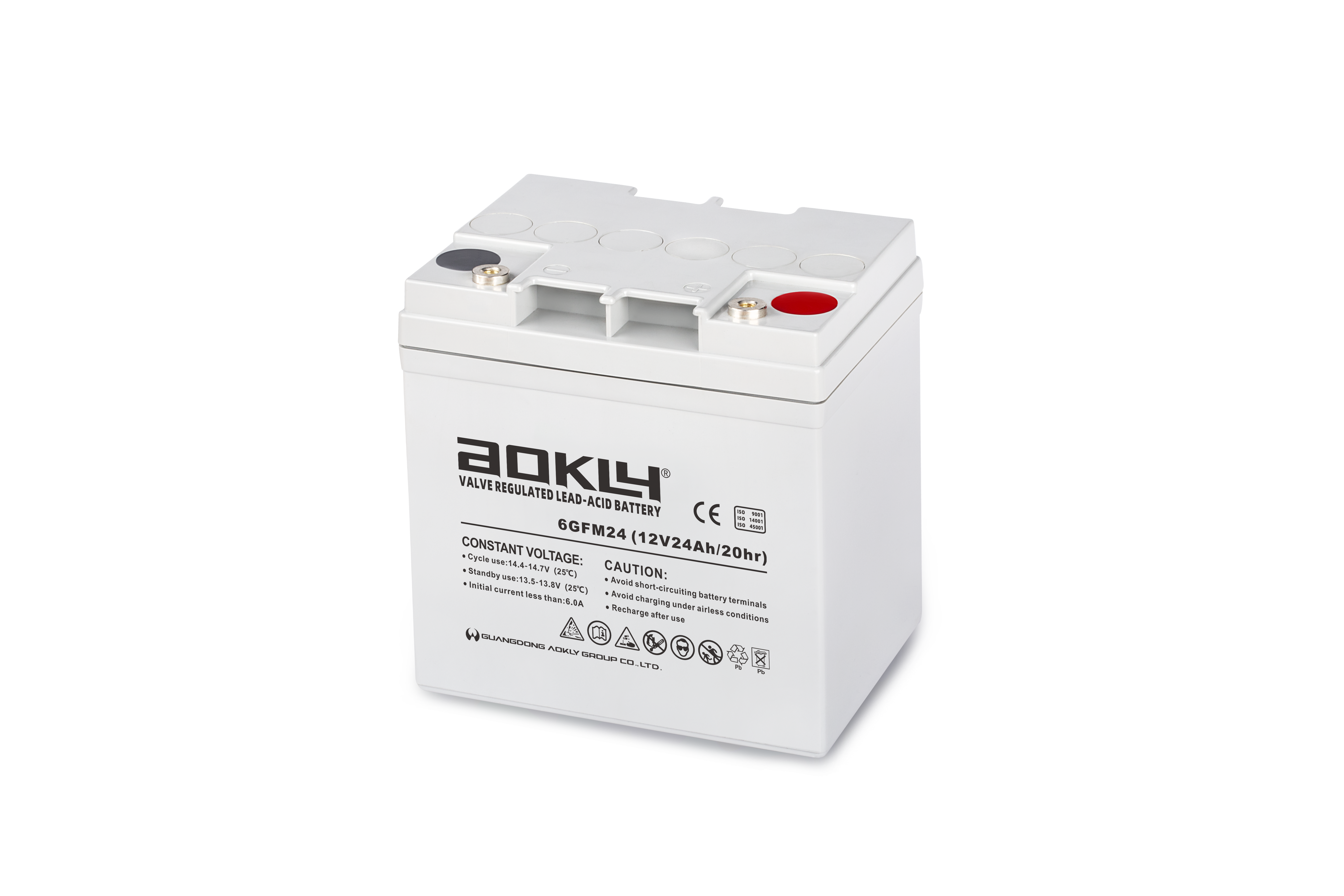

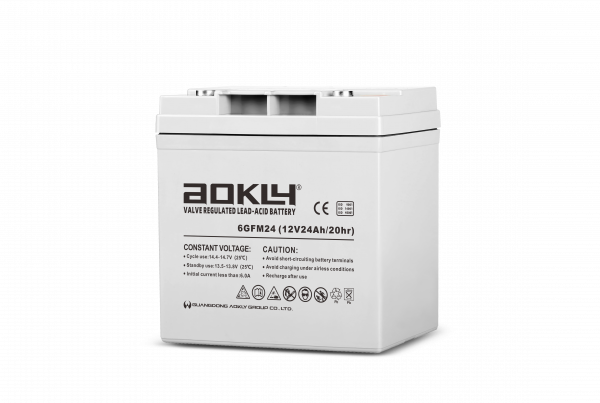

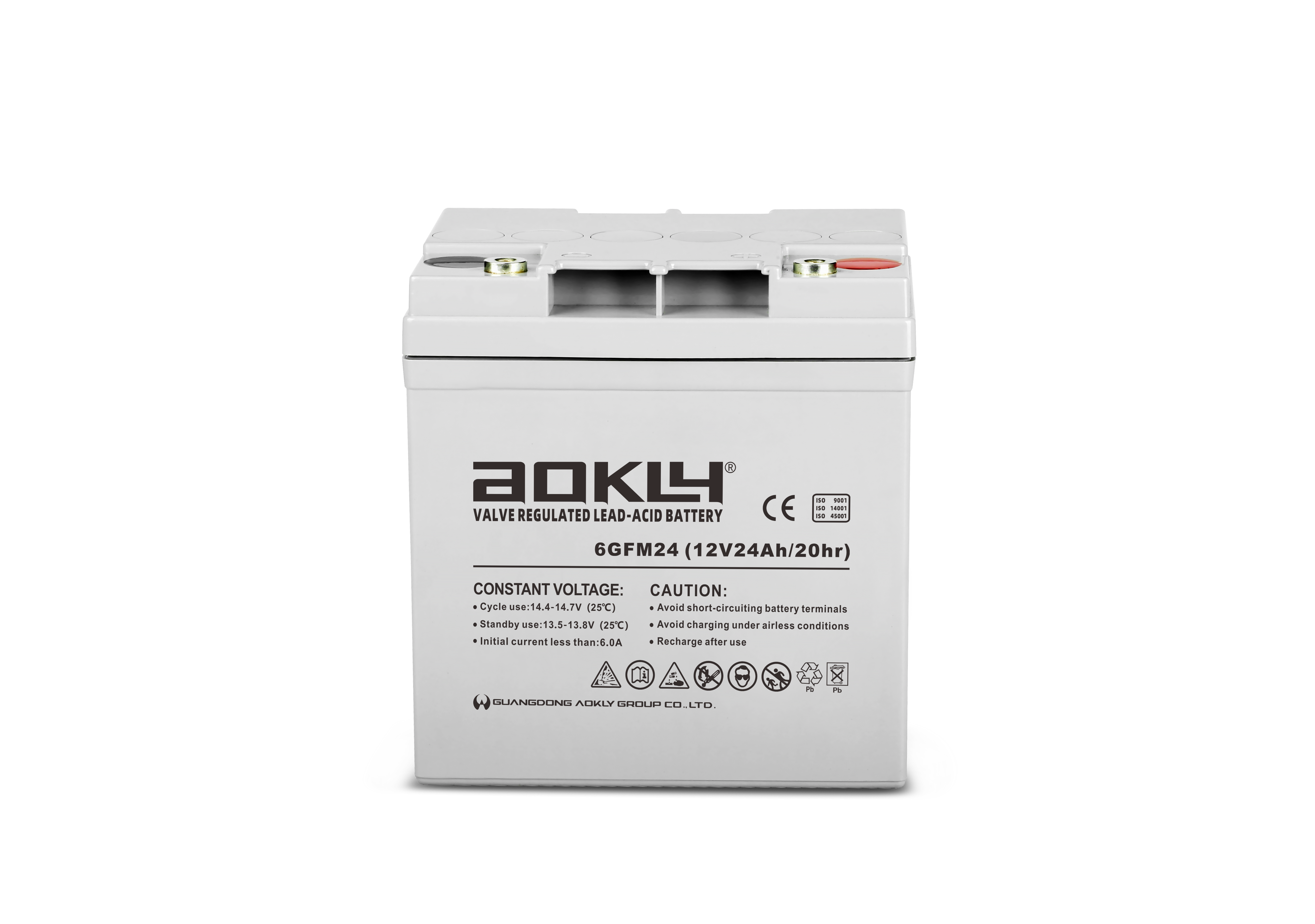

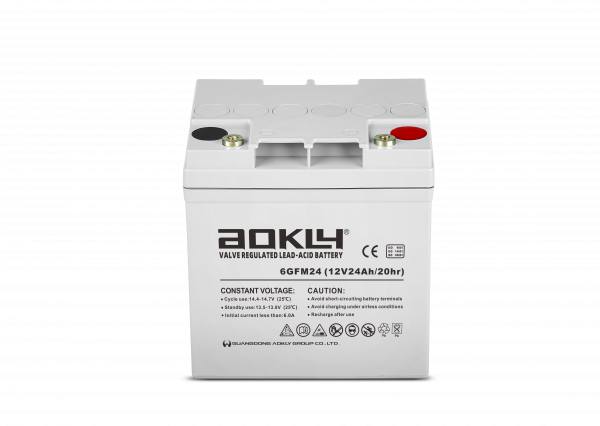

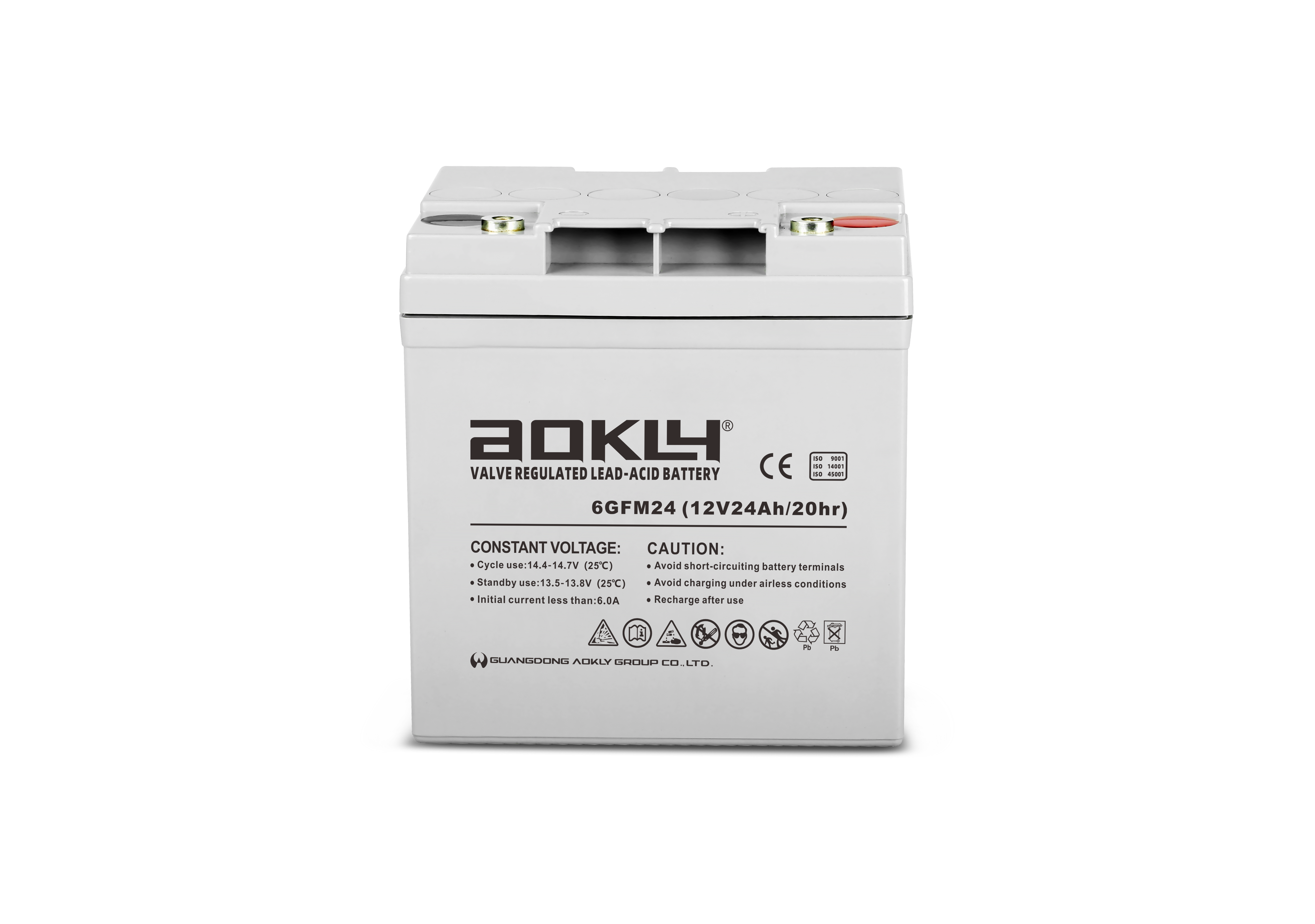

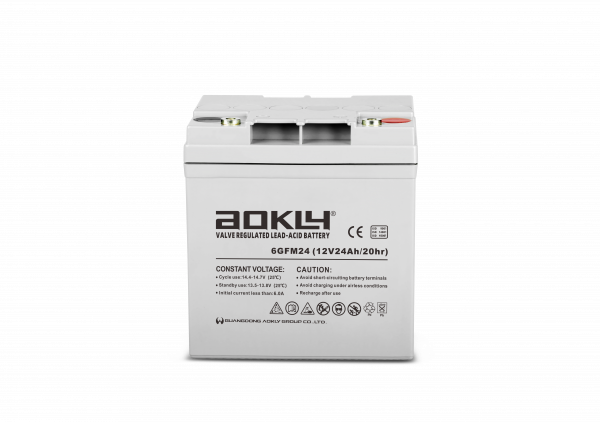

12V24Ah

6-GFM-24

Prouduct Features：

Nominal capacity:24Ah-250Ah
Nominal voltage: 12V
Long design life(25C):10 years
Selfdischarge:≤3%/month
Good high rate discharge performance
High sealing reaction efficiency:≥99%
Operating temperaturerange:-20℃~60℃
Structure:Compact design,low internal resistance
Plate: Pasted flat type
Terminal: Two or more types terminals are available for selection.
High assembling pressure to increase deep cycle life
Casing material: High strengthABS(UL94-HB)and UL94-V0 is optional
Terminal sealing: Double sealing technic (mechanical+epoxy glue)

MOQ:200 PCS

Product Details

Application：

Telecommunications
UPS, Data Center
Energy Storage, Electric Systems
Emergency Lighting, Security
Medical, Electronic Equipment

Motive Power

Constant Current Discharge*(Amperes @25℃/77°F)
Time			5min		10min		15min		30min			1h				2h		3h			4h		5h		8h			10h				20h
9.60V			77		59		47		22.4			13.6				8.0		5.8			4.6		4.04		2.57			2.23				1.22
10.20V			72		55		44		21.3			13.1				7.9		5.7			4.6		3.99		2.54			2.21				1.21
10.50V			69		53		42		20.8			12.8				7.8		5.7			4.6		3.96		2.52			2.20				1.20
10.80V			65		50		40		20.0			12.4				7.6		5.5			4.4		3.84		2.44			2.15				1.18
11.10V			59		45.1		37		18.6			11.6				7.3		5.20			4.19		3.77		2.41			2.10				1.12

Constant Current Discharge*(Amperes @25℃/77°F)
Time			5min		10min		15min		30min			1h				2h		3h			4h		5h		8h			10h				20h
9.60V			77		59		47		22.4			13.6				8.0		5.8			4.6		4.04		2.57			2.23				1.22
10.20V			72		55		44		21.3			13.1				7.9		5.7			4.6		3.99		2.54			2.21				1.21
10.50V			69		53		42		20.8			12.8				7.8		5.7			4.6		3.96		2.52			2.20				1.20
10.80V			65		50		40		20.0			12.4				7.6		5.5			4.4		3.84		2.44			2.15				1.18
11.10V			59		45.1		37		18.6			11.6				7.3		5.20			4.19		3.77		2.41			2.10				1.12
