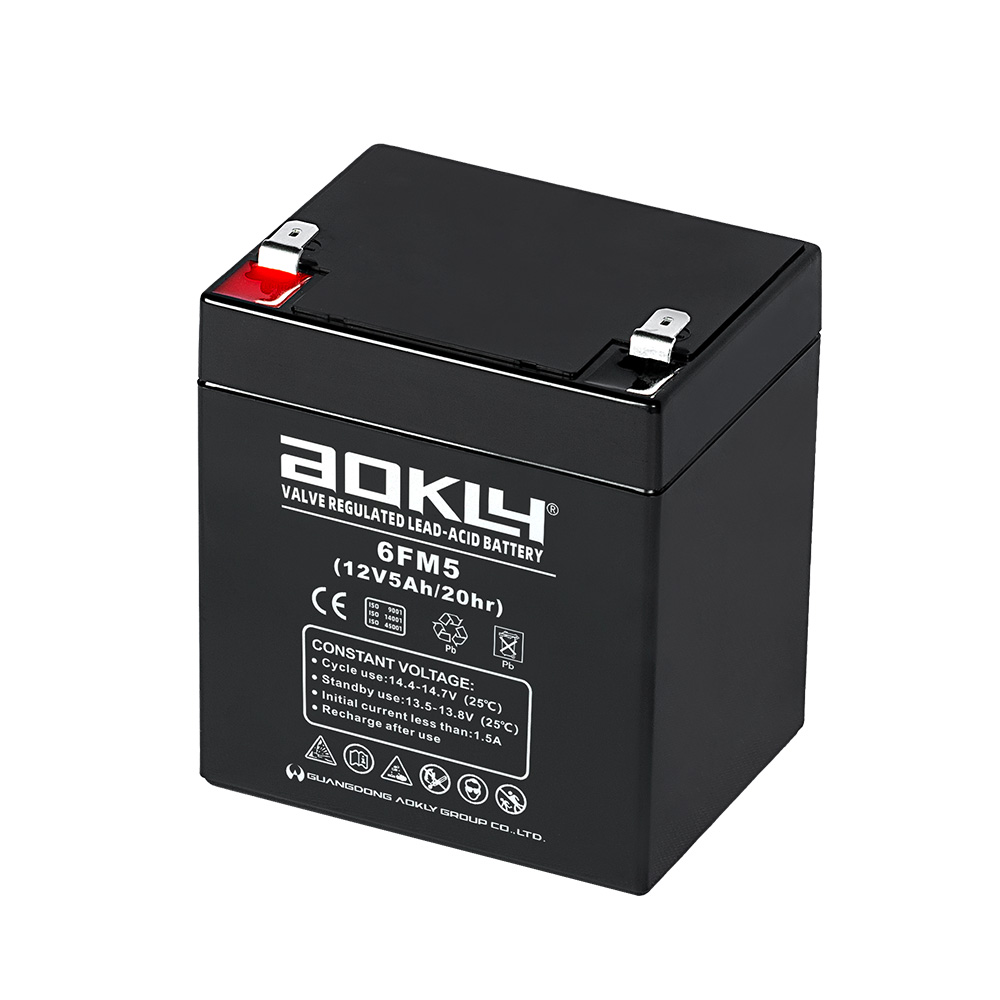

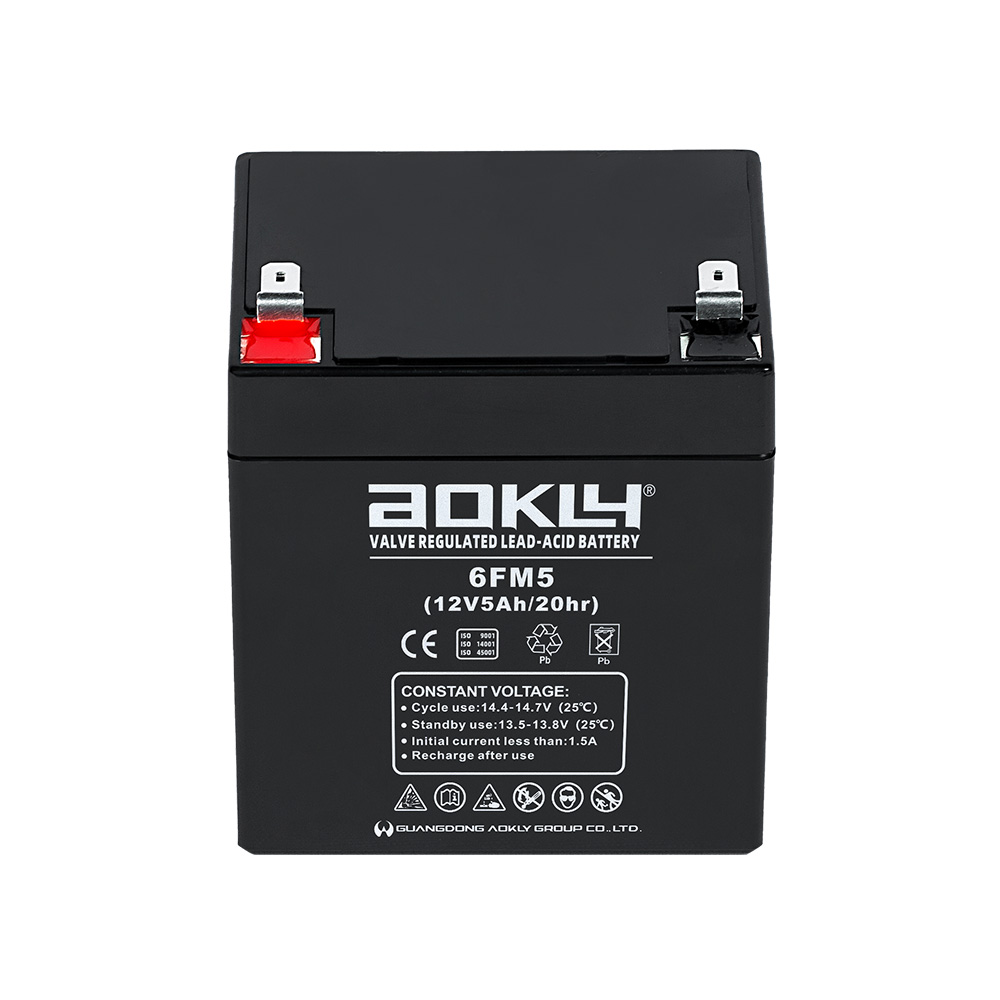

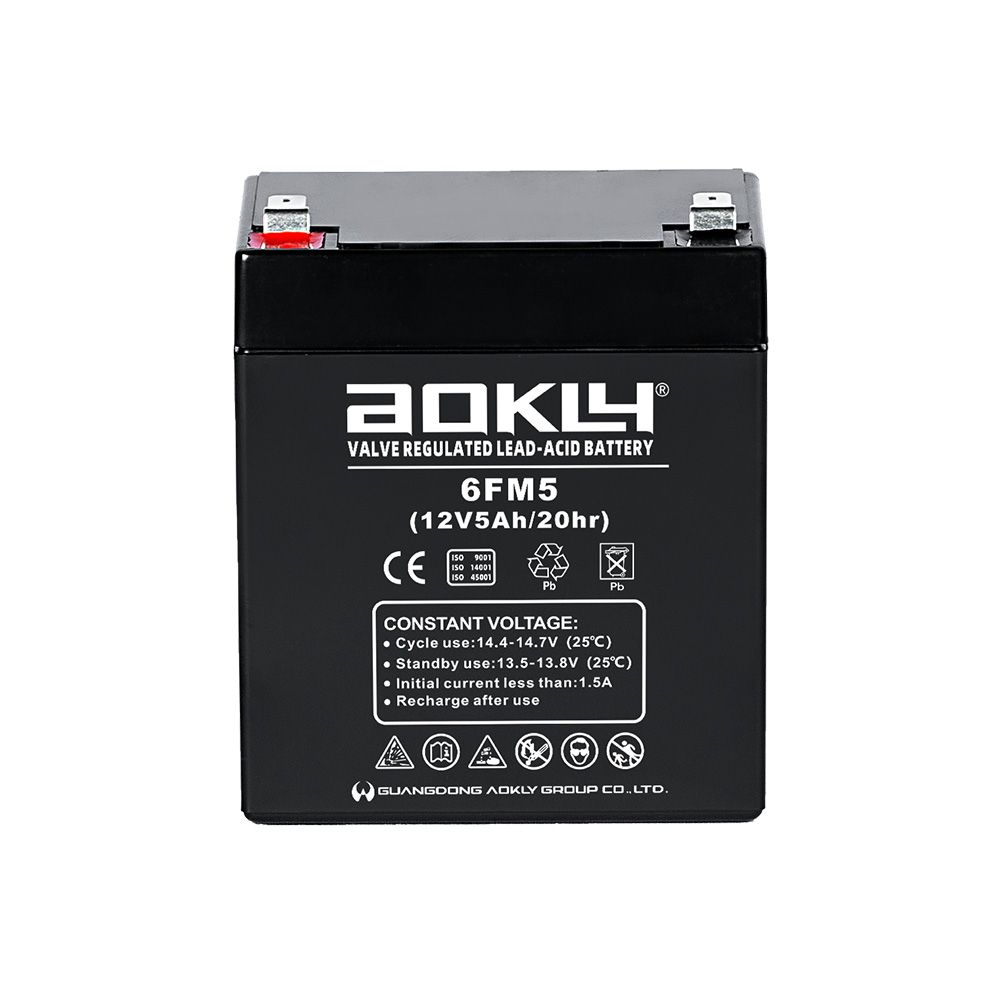

12V5Ah

6-FM-5

Product Features：

Nominal capacity:4Ah-20Ah
Nominal voltage: 6V/12V
Long design life(25C):5 years
Selfdischarge:≤3%/month
Good high rate discharge performance
High sealing reaction efficiency:≥99%
Operating temperature range:-20℃~60℃
Structure: Compact design,shorter internal connectors between cells, thus low internal reisistance
Plate: Pasted flat type
Terminal: Two or more types terminals are available
Separator: Using improved AGMseparator, makes low internal resistance & high assembling pressure to increase cycle life
Casing material: High strengthABS(UL94-HB)and UL94-V0 is optional
Terminal sealing: Double sealing technic (mechanical +epoxy glue)

MOQ:200 PCS

Application：

Constant Current Discharge*(Amperes @25℃/77°F)
Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	8h	10h	20h
1.60V	19.0	12.0	9.5	5.3	3.3	1.80	1.29	1.03	0.88	0.57	0.48	0.257
1.70V	17.2	10.9	8.2	4.7	3.0	1.75	1.26	1.01	0.86	0.55	0.47	0.252
1.75V	16.5	10.4	7.8	4.6	2.9	1.72	1.25	1.00	0.85	0.55	0.47	0.250
1.80V	16.0	10.0	7.5	4.3	2.7	1.68	1.21	0.97	0.82	0.53	0.46	0.245
1.85V	14.4	9.1	7.1	4.1	2.6	1.61	1.15	0.92	0.78	0.51	0.44	0.235

Constant Power Discharge*(Watts/Unit @25℃/77°F)
Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	8h	10h	20h
1.60V	35	23	18.1	10.1	6.3	3.5	2.6	2.04	1.75	1.13	0.95	0.51
1.70V	32	20	15.6	9.0	5.7	3.4	2.5	2.00	1.70	1.11	0.94	0.50
1.75V	31	19.6	14.8	8.8	5.5	3.4	2.5	1.99	1.69	1.10	0.93	0.50
1.80V	30	18.8	14.2	8.2	5.3	3.3	2.4	1.93	1.64	1.07	0.91	0.49
1.85V	27	17.1	13.5	7.9	5.0	3.1	2.3	1.83	1.56	1.01	0.87	0.47
