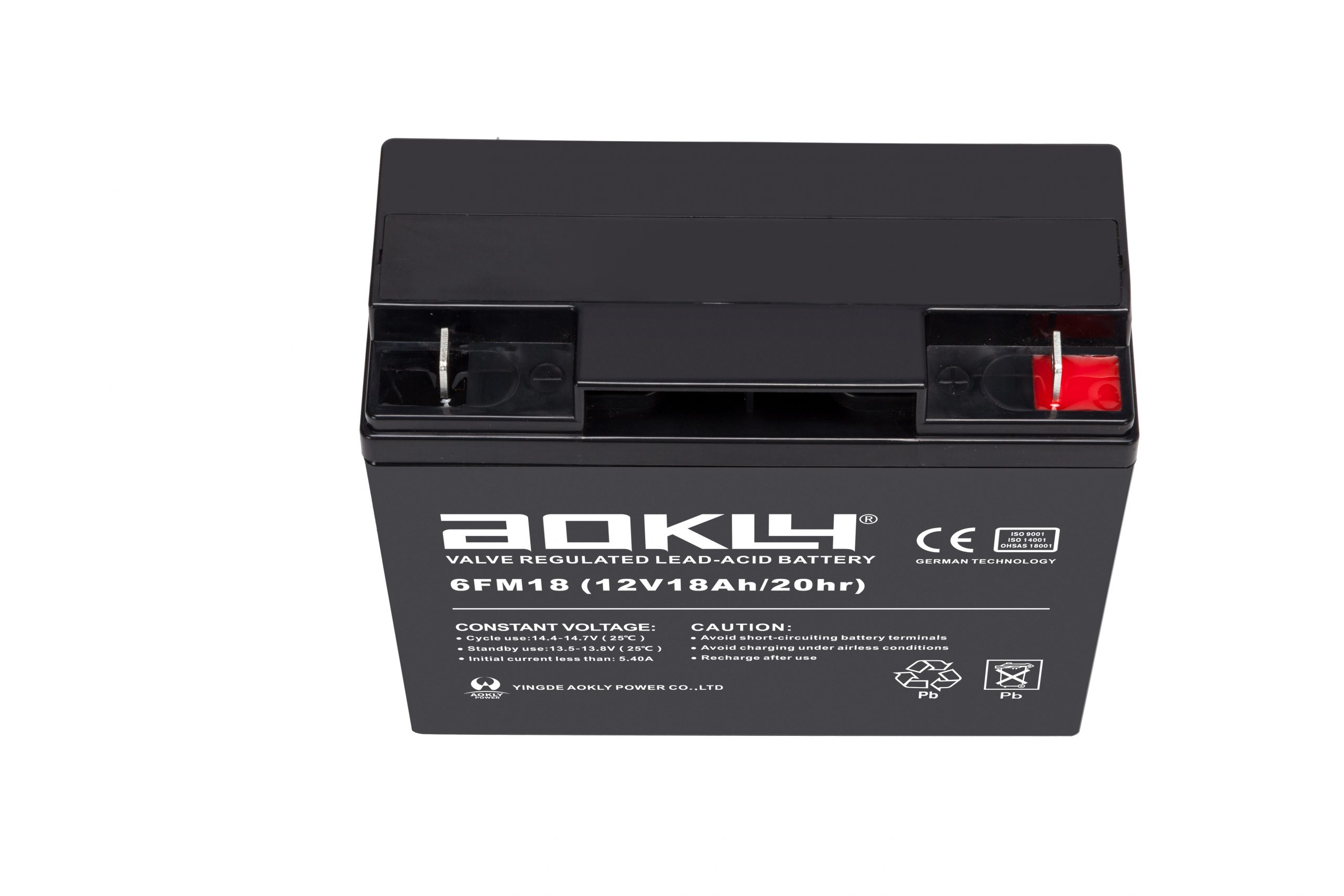

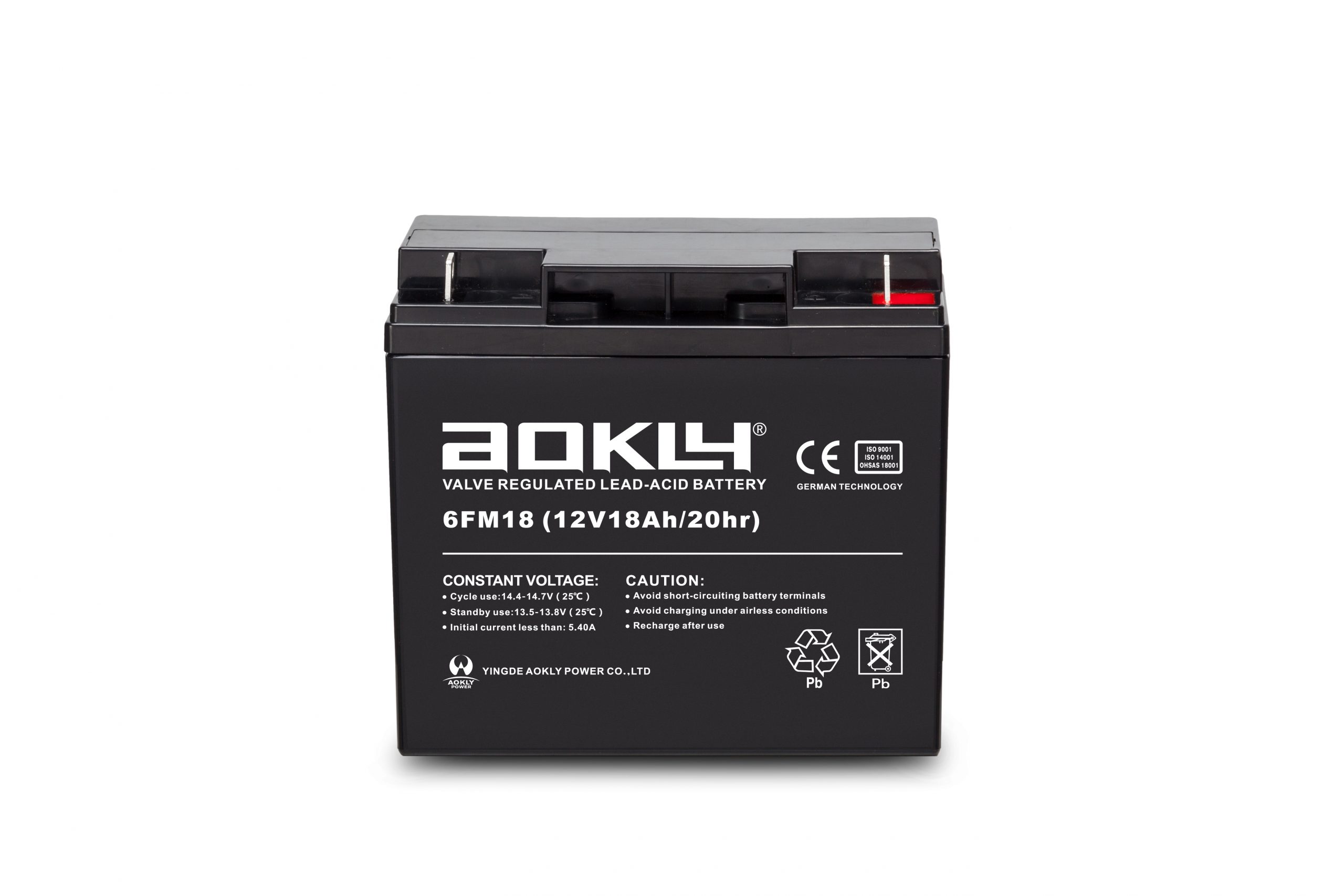

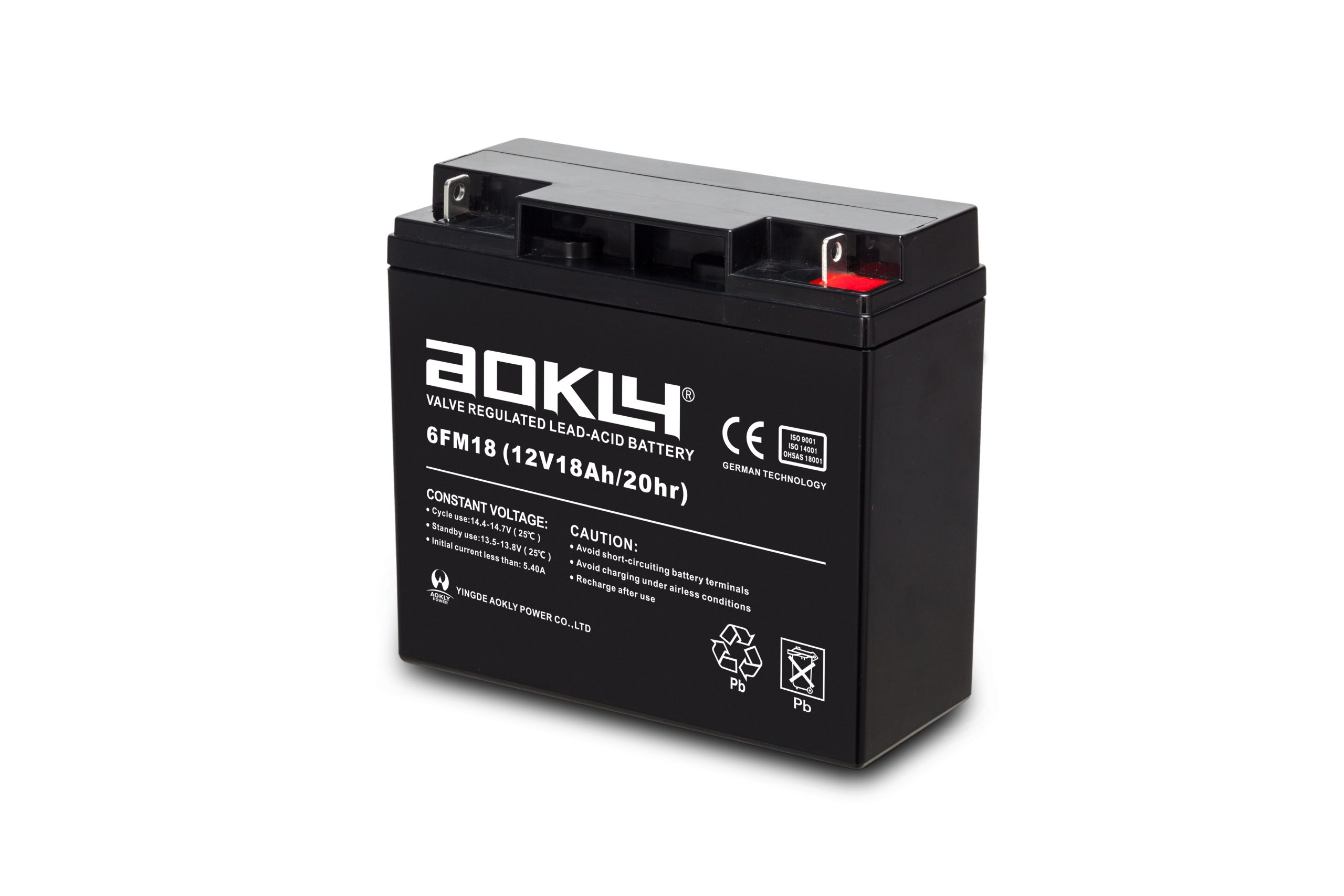

6-FM-18

Application：Telecommunications UPS, Data Center Energy Storage, Electric Systems Emergency Lighting, Security Medical, Electronic Equipment Motive Power

Constant Current Discharge*(Amperes @25℃/77°F)
Time		5min	10min	15min	30min		1h			2h	3h			4h	5h		8h		10h			20h
1.60V		45.6	28.8	21.0	13.8		7.8			4.32	3.12			2.46	2.11		1.413		1.155			0.618
1.70V		41.2	26.0	19.3	13.1		7.4			4.20	3.06			2.41	2.06		1.386		1.130			0.605
1.75V		39.6	25.0	18.0	12.7		7.2			4.14	3.00			2.40	2.04		1.373		1.117			0.600
1.80V		38.3	24.0	17.1	12.1		6.9			4.03	2.94			2.32	1.95		1.346		1.104			0.593
1.85V		34.7	21.8	16.4	10.9		6.8			4.03	2.90			2.30	1.93		1.333		1.090			0.586

Constant Power Discharge*(Watts/Unit @25℃/77°F)
Time		5min	10min	15min	30min		1h			2h	3h			4h	5h		8h		10h			20h
1.60V		84.8	54.1	43.3	24.3		15.0			8.41	6.13			4.89	4.19		2.71		2.28			1.231
1.70V		76.6	49.0	37.4	21.5		13.7			8.18	5.98			4.79	4.08		2.65		2.24			1.206
1.75V		73.6	47.0	35.4	21.0		13.2			8.06	5.93			4.76	4.06		2.64		2.23			1.200
1.80V		71.1	44.5	34.0	19.7		12.6			7.86	5.76			4.62	3.94		2.56		2.18			1.176
1.85V		64.5	40.9	31.1	19.0		12.1			7.51	5.50			4.38	3.73		2.43		2.10			1.130
