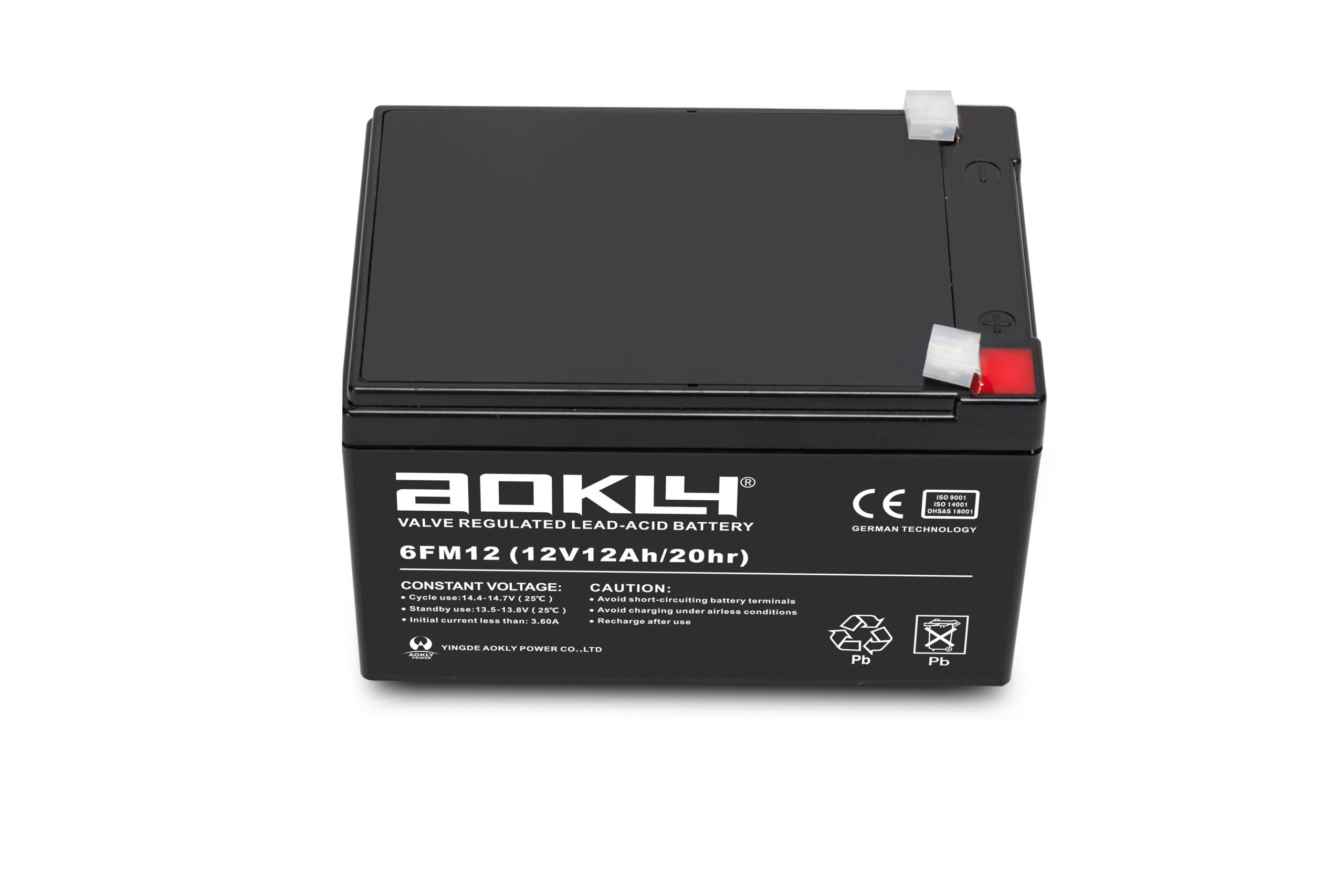

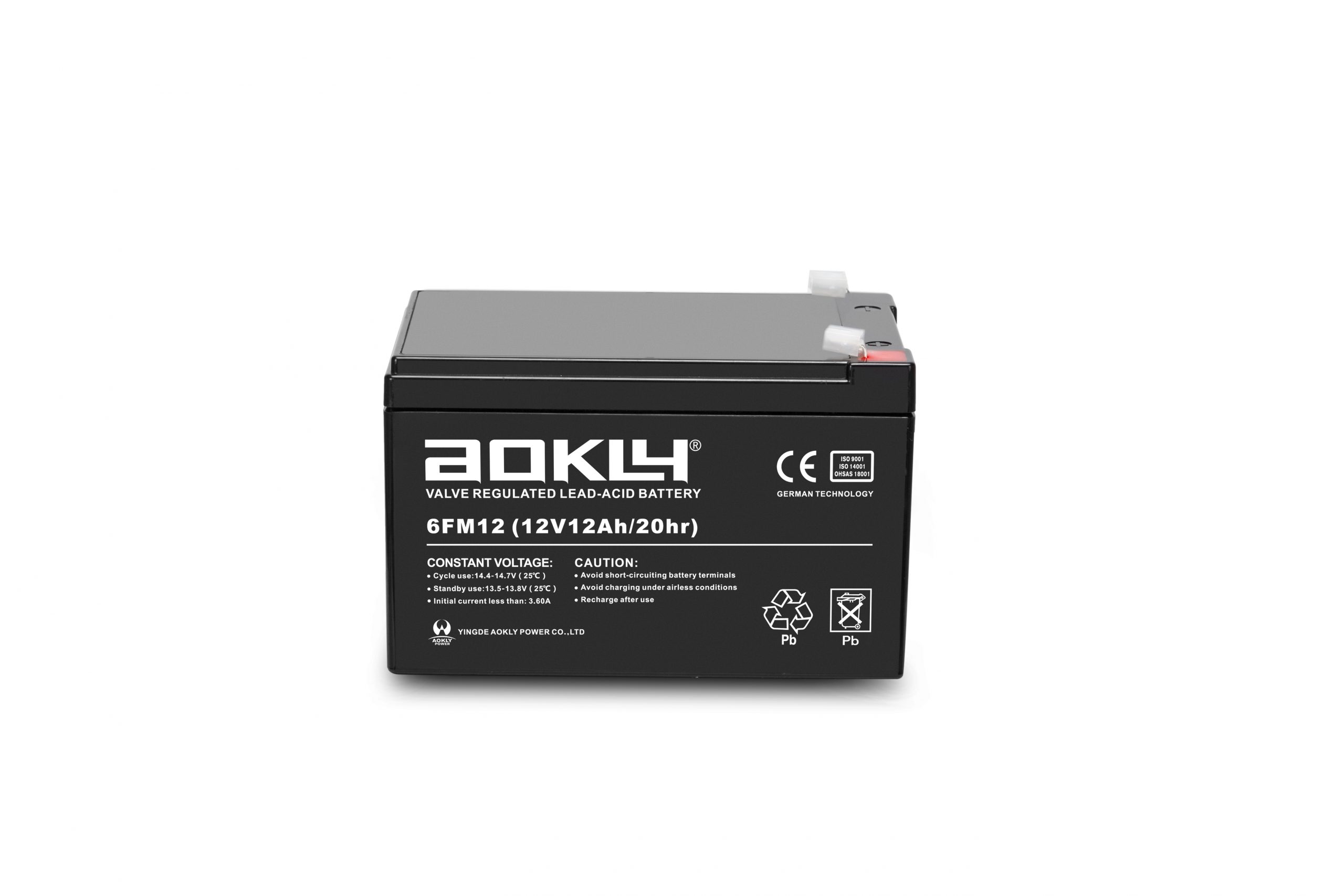

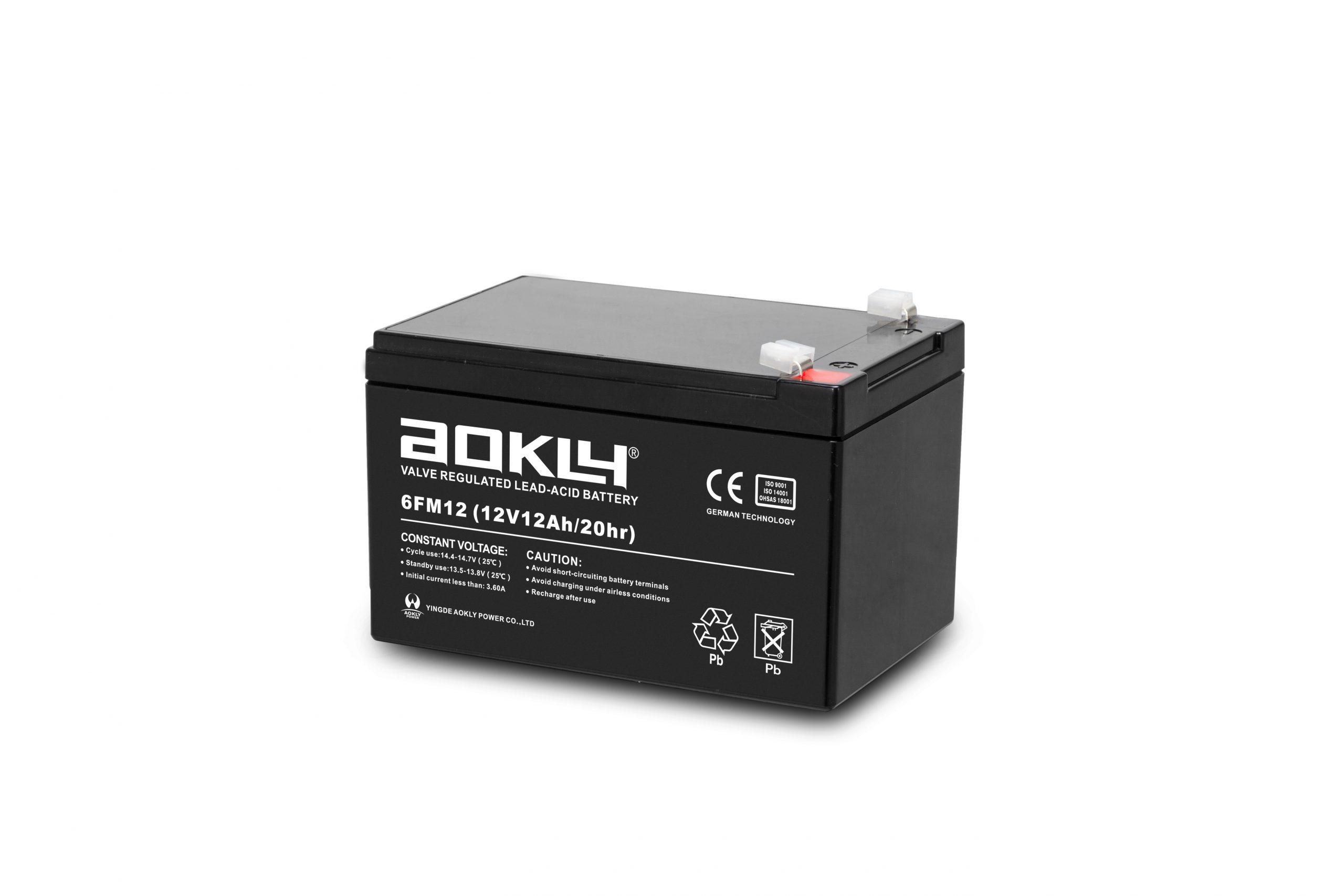

12V12Ah

6-FM-12

Prouduct Features：

Nominal capacity:4Ah-20Ah
Nominal voltage: 6V/12V
Long design life(25C):5 years
Selfdischarge:≤3%/month
Good high rate discharge performance
High sealing reaction efficiency:≥99%
Operating temperature range:-20℃~60℃
Structure: Compact design,shorter internal connectors between cells, thus low internal reisistance
Plate: Pasted flat type
Terminal: Two or more types terminals are available
Separator: Using improved AGMseparator, makes low internal resistance & high assembling pressure to increase cycle life
Casing material: High strengthABS(UL94-HB)and UL94-V0 is optional
Terminal sealing: Double sealing technic (mechanical +epoxy glue)

MOQ:200 PCS

Application：

Motive Power

Constant Current Discharge*(Amperes @25℃/77°F)
Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	8h	10h	20h
1.60V	45.6	28.8	21.0	13.8	7.8	4.32	3.12	2.46	2.11	1.413	1.155	0.618
1.70V	41.2	26.0	19.3	13.1	7.4	4.20	3.06	2.41	2.06	1.386	1.130	0.605
1.75V	39.6	25.0	18.0	12.7	7.2	4.14	3.00	2.40	2.04	1.373	1.117	0.600
1.80V	38.3	24.0	17.1	12.1	6.9	4.03	2.94	2.32	1.95	1.346	1.104	0.593
1.85V	34.7	21.8	16.4	10.9	6.8	4.03	2.90	2.30	1.93	1.333	1.090	0.586

Constant Power Discharge*(Watts/Unit @25℃/77°F)
Time	5min	10min	15min	30min	1h	2h	3h	4h	5h	8h	10h	20h
1.60V	84.8	54.1	43.3	24.3	15.0	8.41	6.13	4.89	4.19	2.71	2.28	1.231
1.70V	76.6	49.0	37.4	21.5	13.7	8.18	5.98	4.79	4.08	2.65	2.24	1.206
1.75V	73.6	47.0	35.4	21.0	13.2	8.06	5.93	4.76	4.06	2.64	2.23	1.200
1.80V	71.1	44.5	34.0	19.7	12.6	7.86	5.76	4.62	3.94	2.56	2.18	1.176
1.85V	64.5	40.9	31.1	19.0	12.1	7.51	5.50	4.38	3.73	2.43	2.10	1.130
